For transmission;
PITAGORA INLINE baler transmission is lubricated using 4.8 KG No. 85W140
transmission oil. Change transmission oil after every 50 thousand bales.

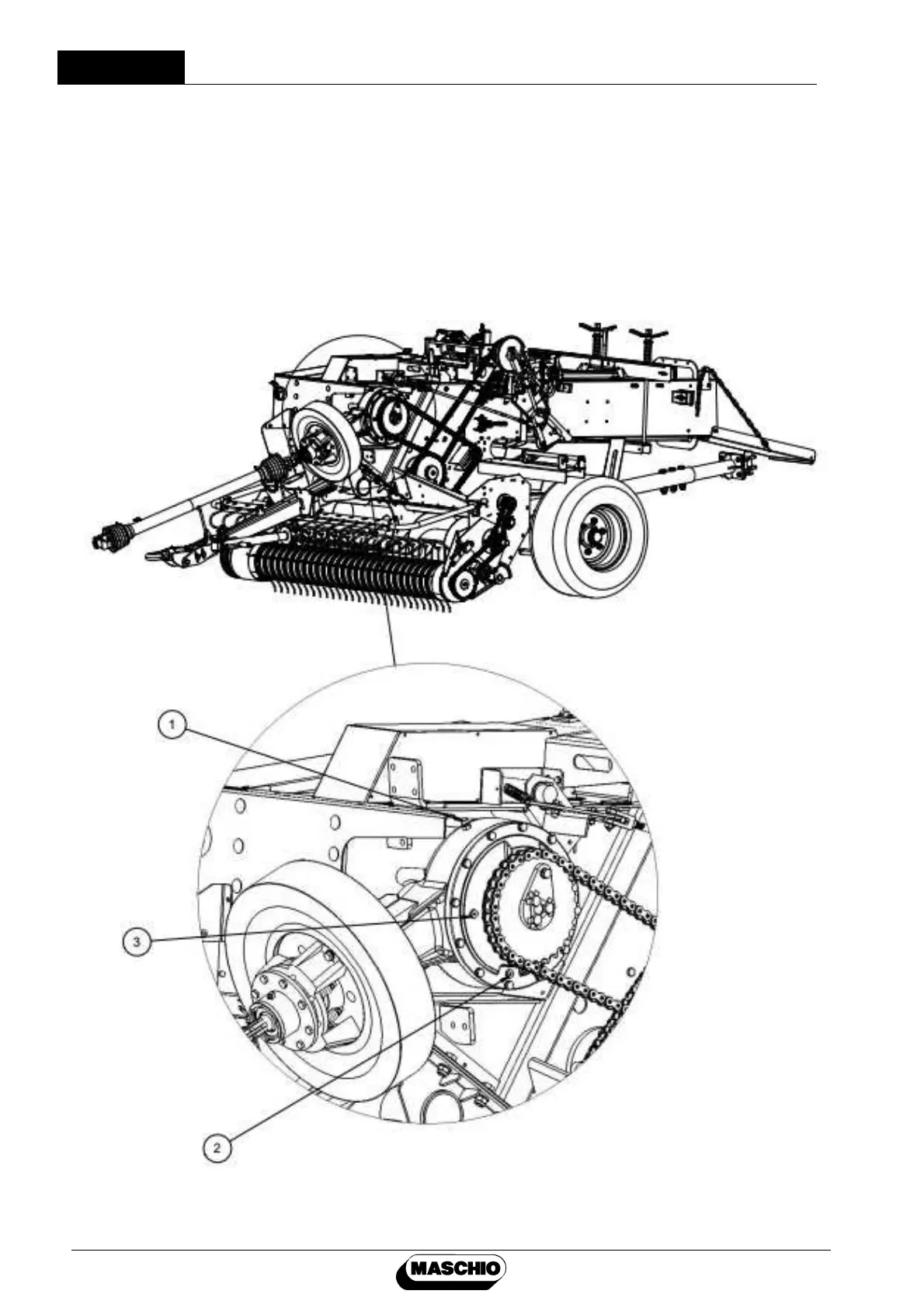

Park the machine on a straight, balanced surface before oil change. Open the vent
cap (1) located on top. Open discharge plug at the bottom to discharge contaminated oil.
Once the oil is completely discharged, re-install the discharge plug (2). Open up oil level
control plug (3) and refill oil up to oil level control plug. (Figure 13.)
Figure 13
