About the Status Bar

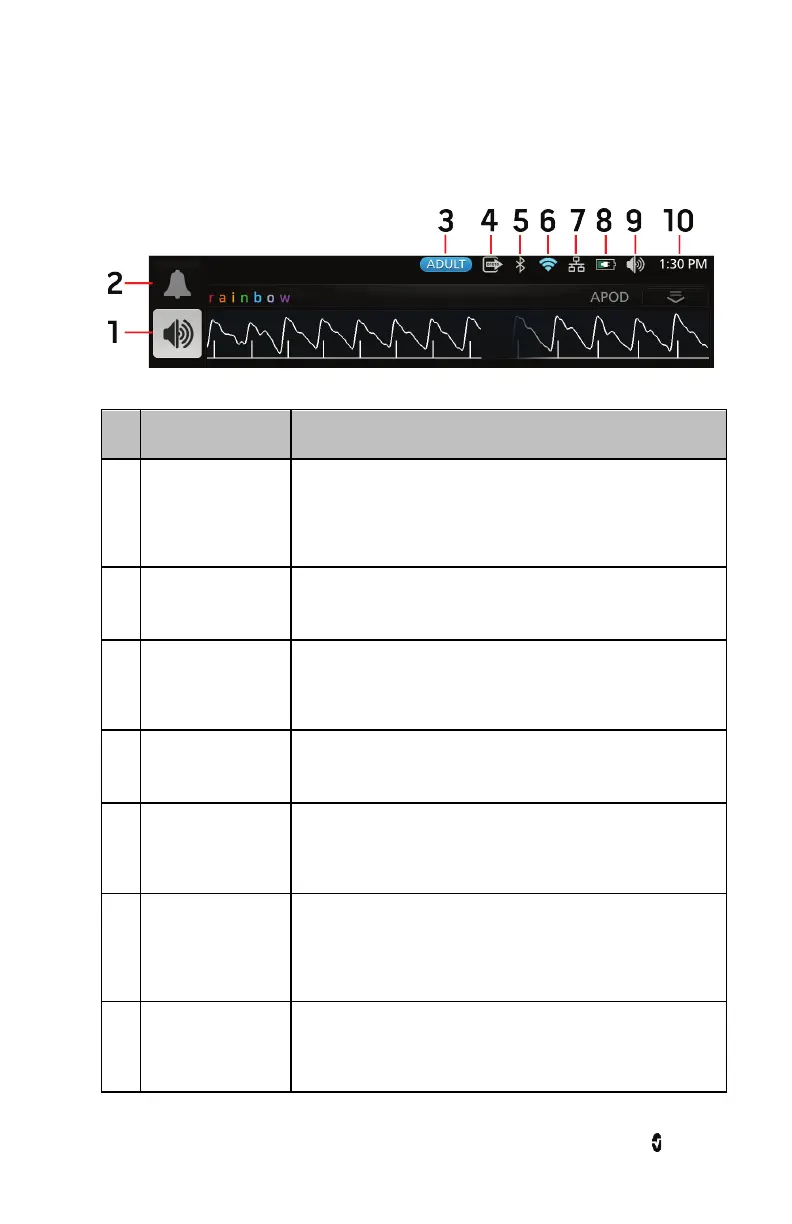

The Status Bar is visible at the top of the Main Screen.
Ref. Feature Description
1 Audio Pause
Suspends all audible alarms and displays remaining Audio
Pause Duration time when activated during an alarm event.
Visual alarms are not impacted and will still display.
See Audio Pause on page 126.
2 Alarm Silence
Displays alarm status and mutes all active audible alarms.
See Silencing Alarms on page 125.
3 Profiles
Provides access to the Profiles screen. The example shown
illustrates the current Profile is Adult, for an adult patient.
See Chapter 5: Profiles on page 103.
4 Device Output
Provides access to the Device Output screen.
See Device Output on page 96.
5 Bluetooth
Provides access to the Bluetooth screen. If this icon is visible,
then Bluetooth connectivity has been enabled.
See Bluetooth on page 92.
6 Wi-Fi
Provides access to the Wi-Fi screen. If this icon is visible, then
Wi-Fi connectivity has been enabled. The icon itself also
indicates the strength of the wireless signal.
See Wi-Fi on page 92.
7 Ethernet
Provides access to the Ethernet screen. If this icon is visible,
then Ethernet connectivity has been enabled.
See Ethernet on page 91.

Masimo Rad-97 Specifications

General

Display Size	7 inches
SpO2 Accuracy	±2% (70-100%)
Pulse Rate Accuracy	±3 bpm
Perfusion Index Range	0.02% to 20%
Pleth Variability Index Range	0% to 100%
SpO2 Range	0% to 100%
SpHb Range	0 to 25 g/dL
SpCO Range	0% to 40%
Battery Type	Rechargeable lithium-ion
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity Range	10% to 95% non-condensing
Display	Color touchscreen
Connectivity	Wi-Fi, Ethernet, Bluetooth
Power Supply	100–240 VAC, 50–60 Hz
Battery Life	Approximately 4 hours
Measurements	SpO2, Pulse Rate, Perfusion Index, Pleth Variability Index, SpHb, SpOC, SpMet, SpCO
Pulse Rate Range	25 to 240 bpm
HbCO Range	0-99%
MetHb Range	0-99%
SpMet Range	0-99%
Data Storage	Internal memory
Alarms	Audible and visual alarms for all parameters
