124 Appendix F: The Matrox Iris GTR breakout board
Matrox camera connector

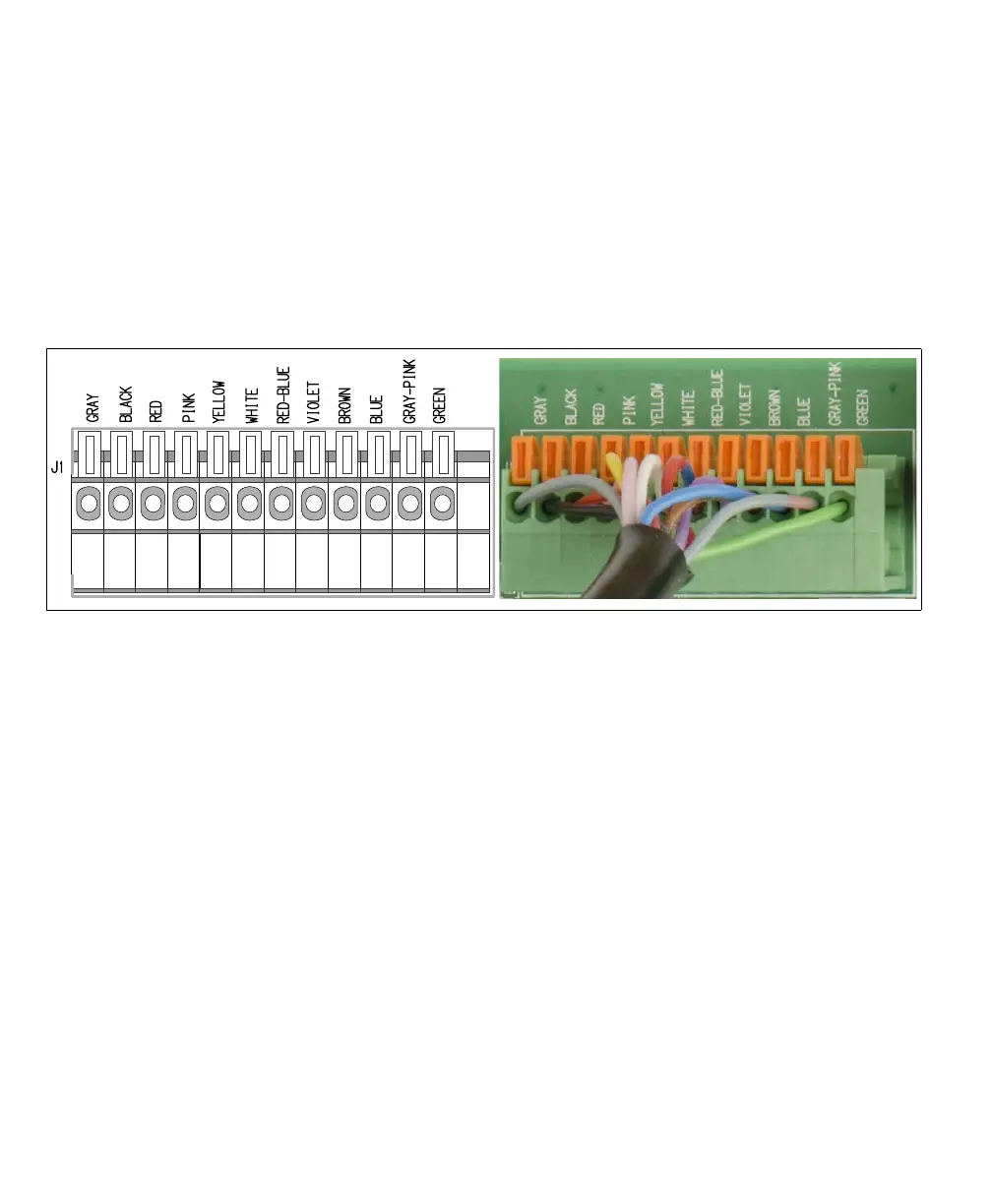

The Matrox camera connector (J1) is a series of 12 wire-terminals. Connect it to
the digital I/O and power connector of your Matrox Iris GTR, using the Matrox
open-wire digital I/O and power cable that comes with the Matrox Iris GTR
starter kit. Each wire-terminal receives a wire with a color corresponding to the
color listed on the Matrox Iris GTR breakout board. This connector provides
power to your Matrox Iris GTR, receives Matrox Iris GTR auxiliary output
signals, and transmits auxiliary input signals to your Matrox Iris GTR.
