Connecting to the auxiliary I/O interface 41
Connecting an auxiliary output signal to a sourcing input

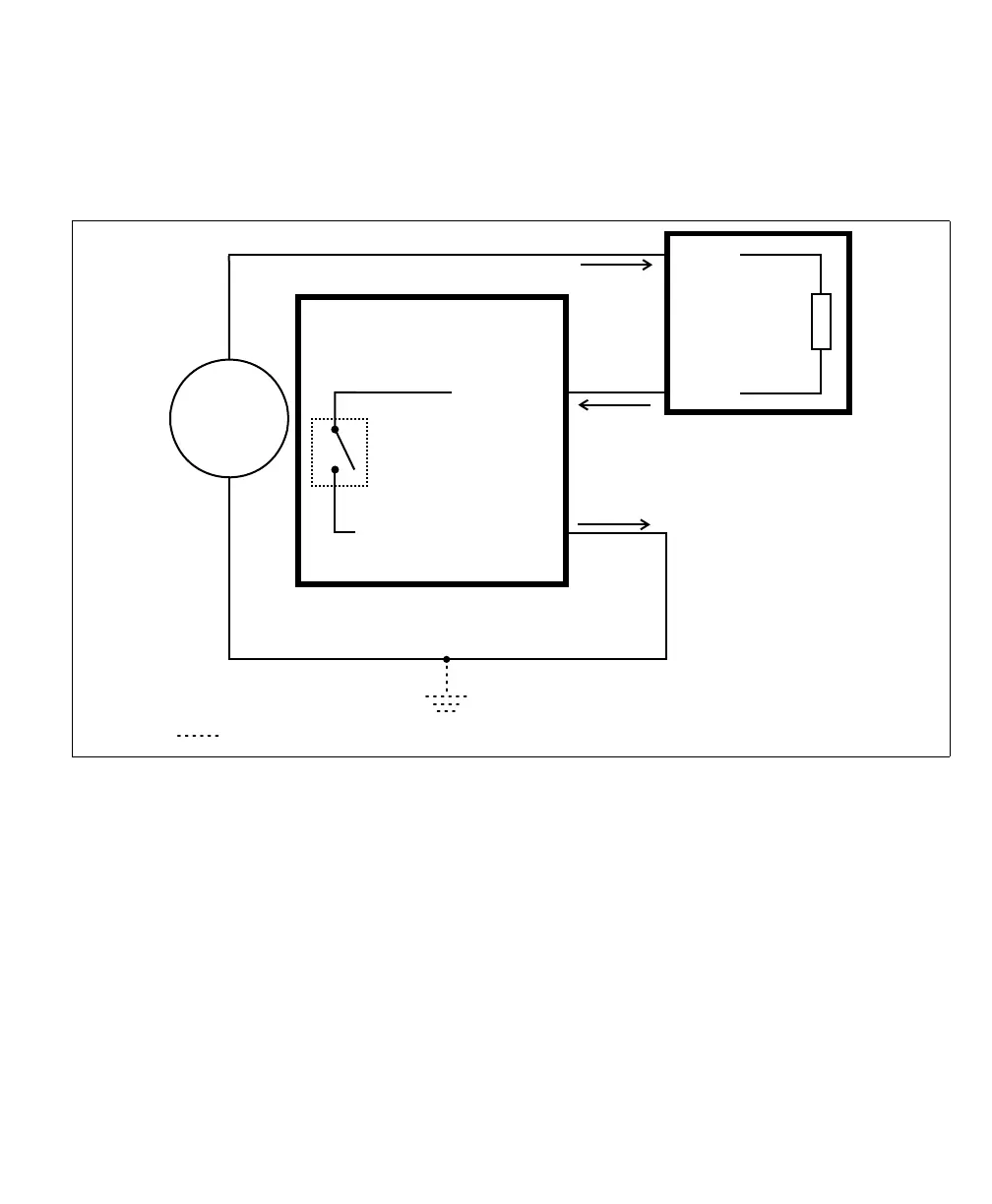

Connect a Matrox Iris GTR auxiliary output signal to a sourcing input, as shown
below.
❖ Note that, when connecting a resistive load sourcing device instead of an input
sensing sourcing device, the same connection would be used as displayed above.
Equivalent circuit only
Optional because the auxiliary output signals are optically isolated.
Up to 24V
+
–
AUX_OUT
AUX_OUT_COMMON
Matrox Iris GTR
Sinking configuration
COM
INPUT
Sourcing device
Input
sensing
