50 Chapter 2: Powering and connecting to your Matrox Iris GTR
Connecting a 3-wire PNP proximity sensor to an auxiliary input signal

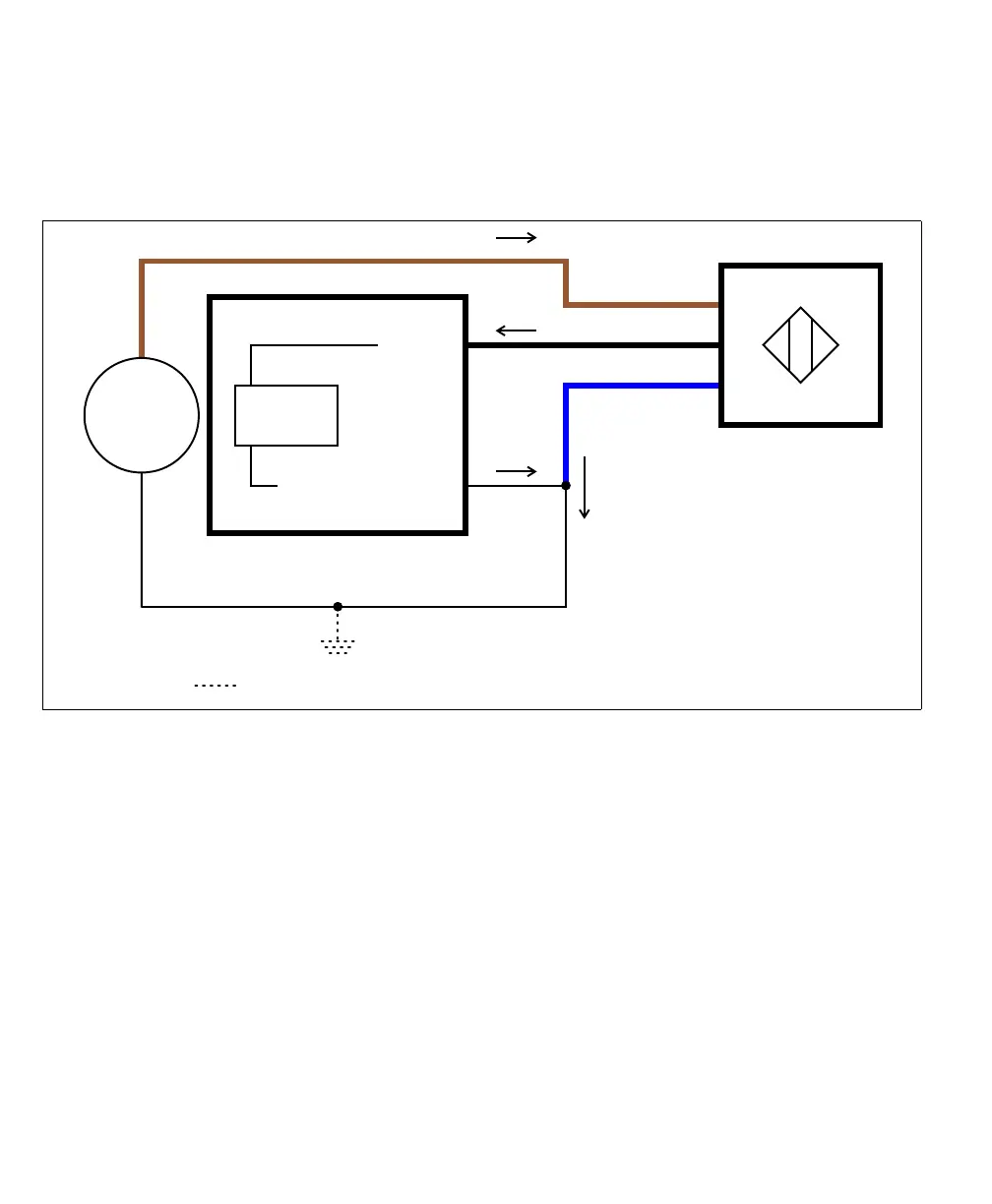

Connect a 3-wire PNP proximity sensor to a Matrox Iris GTR auxiliary input
signal, as shown below.
Equivalent circuit only
Brown wire
Black wire
Blue wire
3-wire PNP
proximity sensor
24V
Sensing
Circuit
AUX IN_
AUX IN_COMMON_
Matrox Iris GTR
Sinking configuration
+
-
Optional because the auxiliary input signals are optically isolated.
