Matrox Iris GTR connectors 73

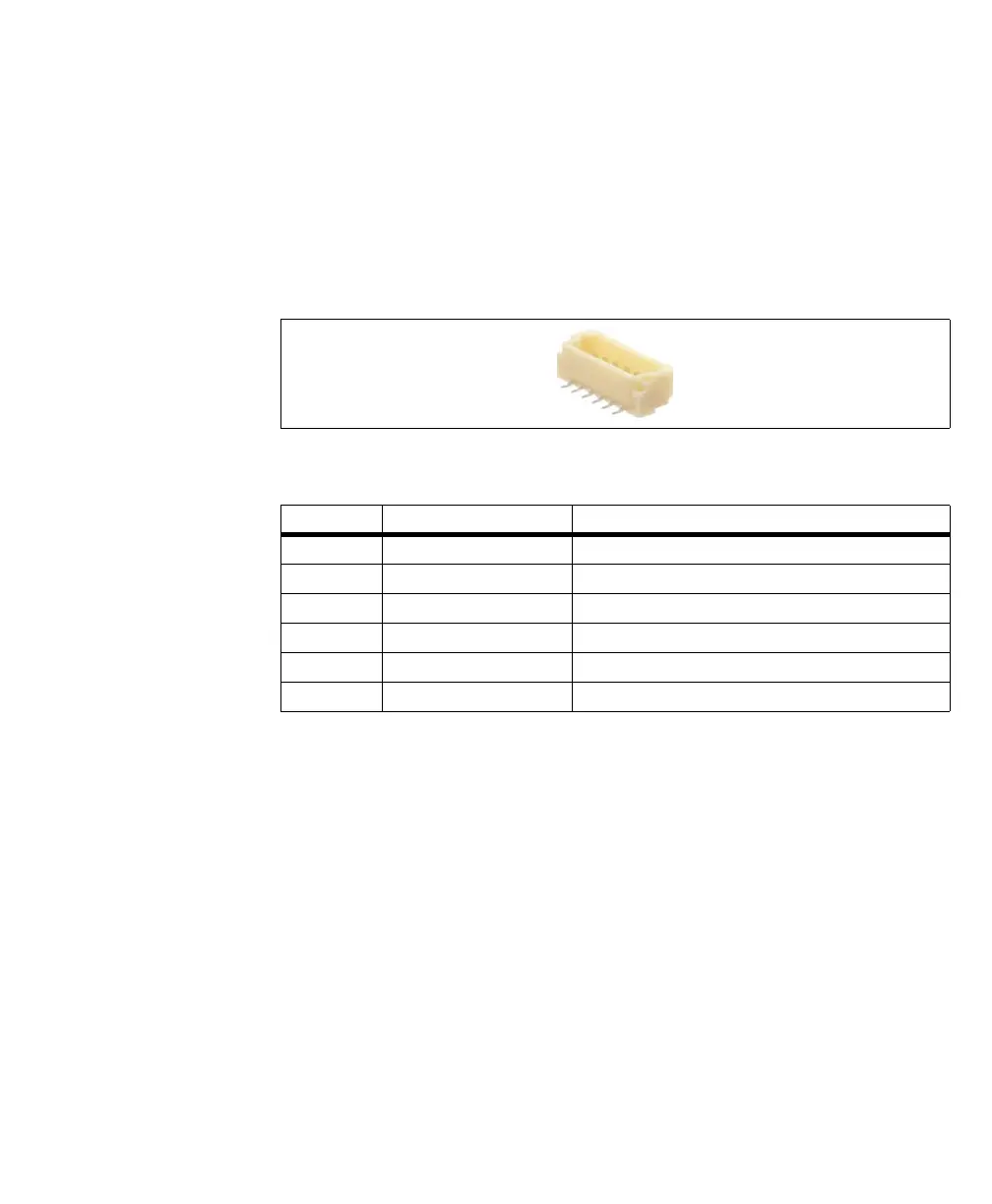

Liquid lens connector
The liquid lens connector is a six-pin shrouded male connector designed to
connect to the 6-pin connector from a Varioptic Caspian C-39N0-160-I2C or
C-39N0-250-I2C lens. The secondary, 3-pin male connector, from the Varioptic
lens is not used.
This connector is located inside the lens cap housing of your Matrox Iris GTR.
The pinout for the liquid lens connector is as follows:
Pin number Signal name Description
1 PWR Power supply (+5 V).
2GND Ground.
3 SDA Serial data line signal.
4SCL Serial data clock signal.
5 Unused Unused.
6 Unused Unused.
