100 Appendix F: The Matrox Iris GTR breakout board
Introducing the Matrox Iris GTR
breakout board

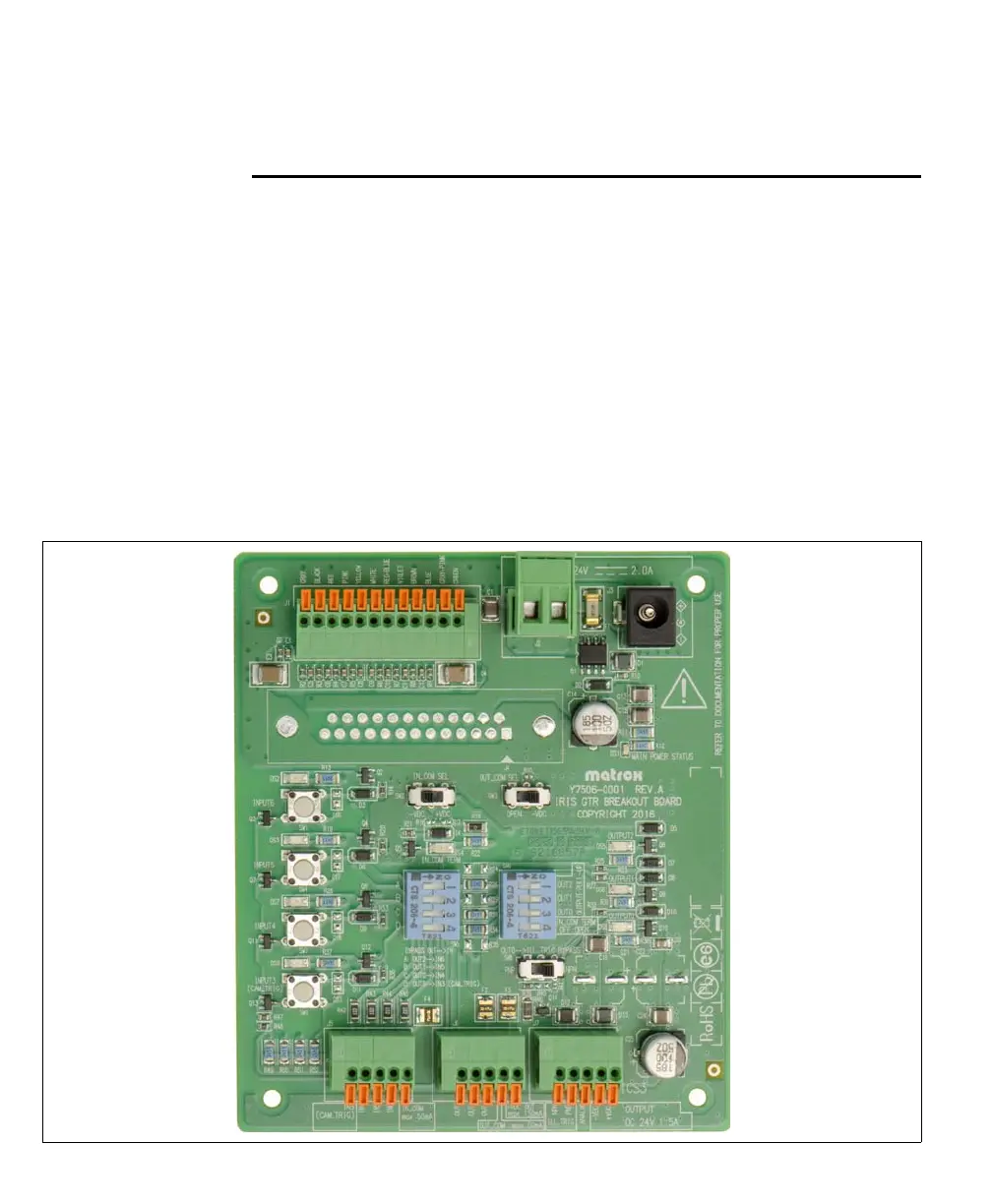

The Matrox Iris GTR breakout board allows you to test the inputs and outputs
of your Matrox Iris GTR, as well as initially power your smart camera. The Matrox
breakout board provides a convenient way to connect the digital I/O and power
cable, re-route signals, connect third-party devices, and generate triggers.
❖ Note that the status LEDs on your Matrox Iris GTR breakout board break the
electrical isolation provided by the opto-isolated auxiliary signals from your
Matrox Iris GTR.
❖ Note that the Matrox Iris GTR breakout board is strictly intended for
development purposes only. It is not to be used for deployment with the
Matrox Iris GTR smart camera.
