Matrox Iris GTR5000 - Page 101

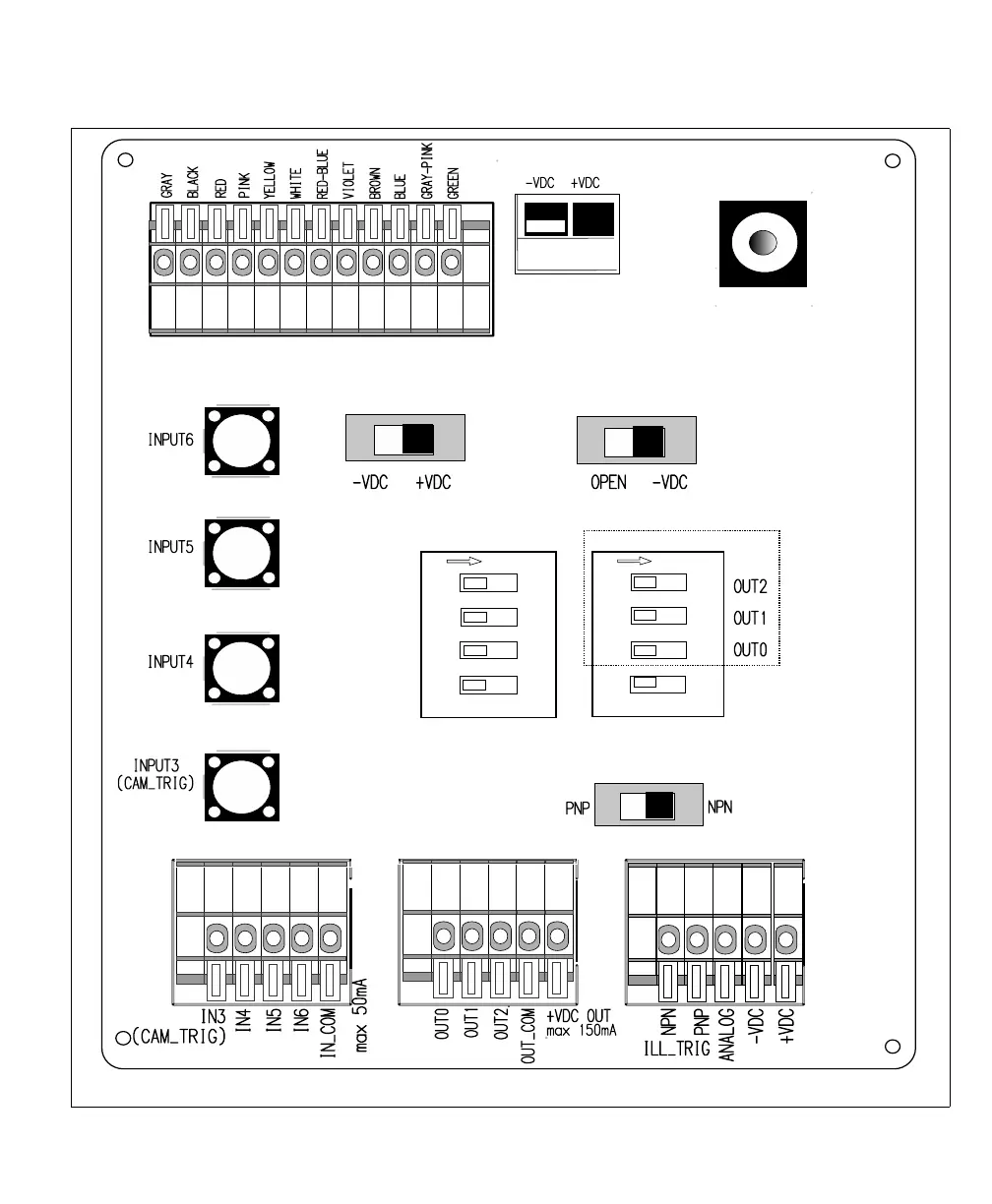

Introducing the Matrox Iris GTR breakout board 101
o
Not to scale
1
2
3
4
1
2
3
4
Input connector
Output connector
ICS3 connector
Output-to-input
bypass switches
OFF/ON
Output pullup
resistor
switches
OUT2 → IN6
OUT1 → IN5
OUT0 → IN4
OUT0 → IN3
OFF/ON
Input push buttons
Power source connectors
Matrox camera connector
Matrox breakout board
IN_COM
selector
OUT_COM
selector
Output-to-ICS3 selector
IN_COM_TERM
(External/on-board)
