68 Appendix B: Technical reference

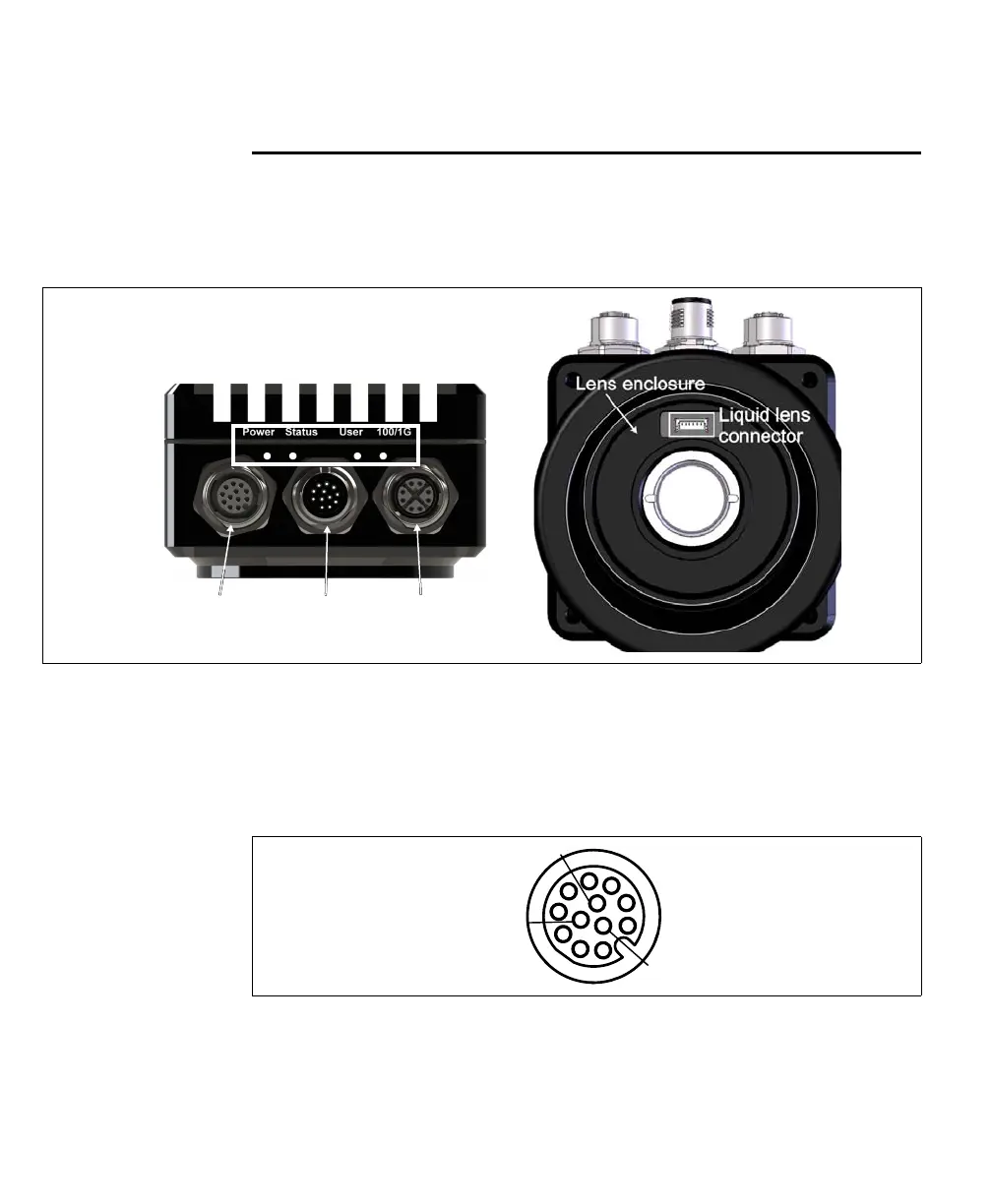

Matrox Iris GTR connectors
Your Matrox Iris GTR has several interface connectors. These are the Digital I/O
and power connector, the VGA/USB connector, the100/1000 BaseT Ethernet
connector, and the Liquid lens connector.
Digital I/O and power connector
The digital I/O and power connector is an M12 12-pin (female) connector that
transmits and receives digital I/O signals, provides an analog intensity (dimming)
control signal for an inline control system lighting controller, and provides power
to your Matrox Iris GTR.
Digital I/O and
power connector
VGA/USB
connector
100/1000
BaseT Ethernet
connector
o
1
2
3
4
5
6
7
8
9
10
11
12
