70 Appendix B: Technical reference
To interface with this connector, you can use either the cable that comes with the
starter kit, GTR-CBL-PWR/3, or you can build your own. To build your own
digital I/O and power cable, parts can be purchased from:
100/1000 BaseT Ethernet connector
The 100/1000 BaseT Ethernet connector is an M12 (female) 8-pin X-coded
connector that provides communication capabilities at 10 Mbit/sec,
100 Mbit/sec, or 1 Gbit/sec (1000 Mbit/sec). For PROFINET communication,
this interface provides a hardware-assisted PROFINET interface, which supports
a minimum cycle time of 1 msec.

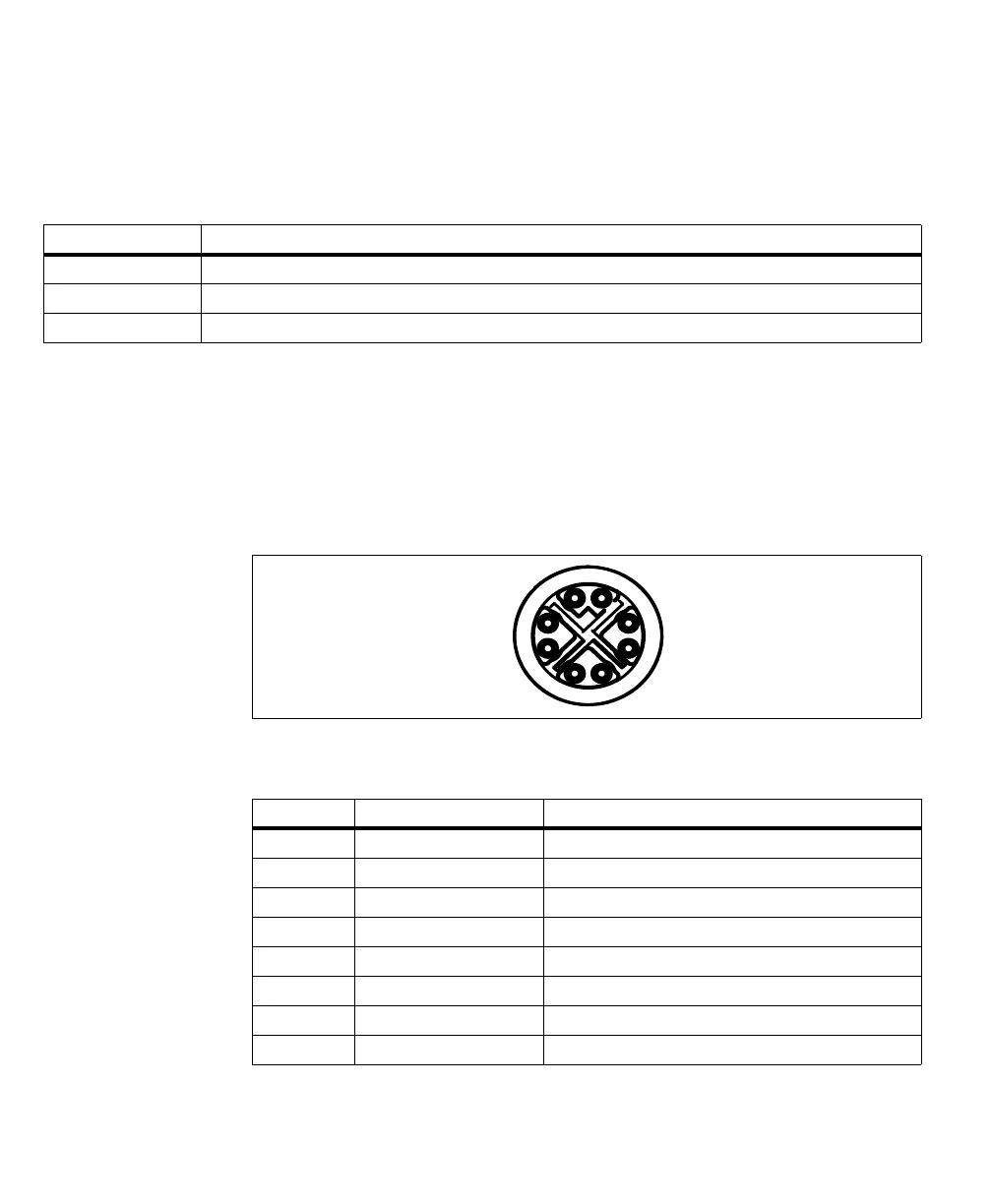

The pinout for the Ethernet connector is as follows:
Cable information
Manufacture Phoenix Contact GmbH & Co. KG
Part number: SAC-12P- MS/3,0-PVC SCO Order No:1554788
Description: Sensor/actuator cable, 12-pos., black PVC, straight M12 SPEEDCON plug on free conductor end, length: 3.0 m
o
Pin number Signal name Description
1 MDI_1+ Bidirectional data A+
2 MDI_1- Bidirectional data A-
3 MDI_2+ Bidirectional data B+
4 MDI_2- Bidirectional data B-
5 MDI_4+ Bidirectional data D+
6 MDI_4- Bidirectional data D-
7 MDI_3- Bidirectional data C-
8 MDI_3+ Bidirectional data C+
1
2
3
4
5
6
7
8
