Matrox Iris GTR connectors 71
To interface with this connector, you can use either the cable that comes with the
starter kit, GTR-CBL-ETH/5, or your can purchase a similar cable from an
alternate source. For an alternate source of 100/1000 BaseT Ethernet cables,
contact:

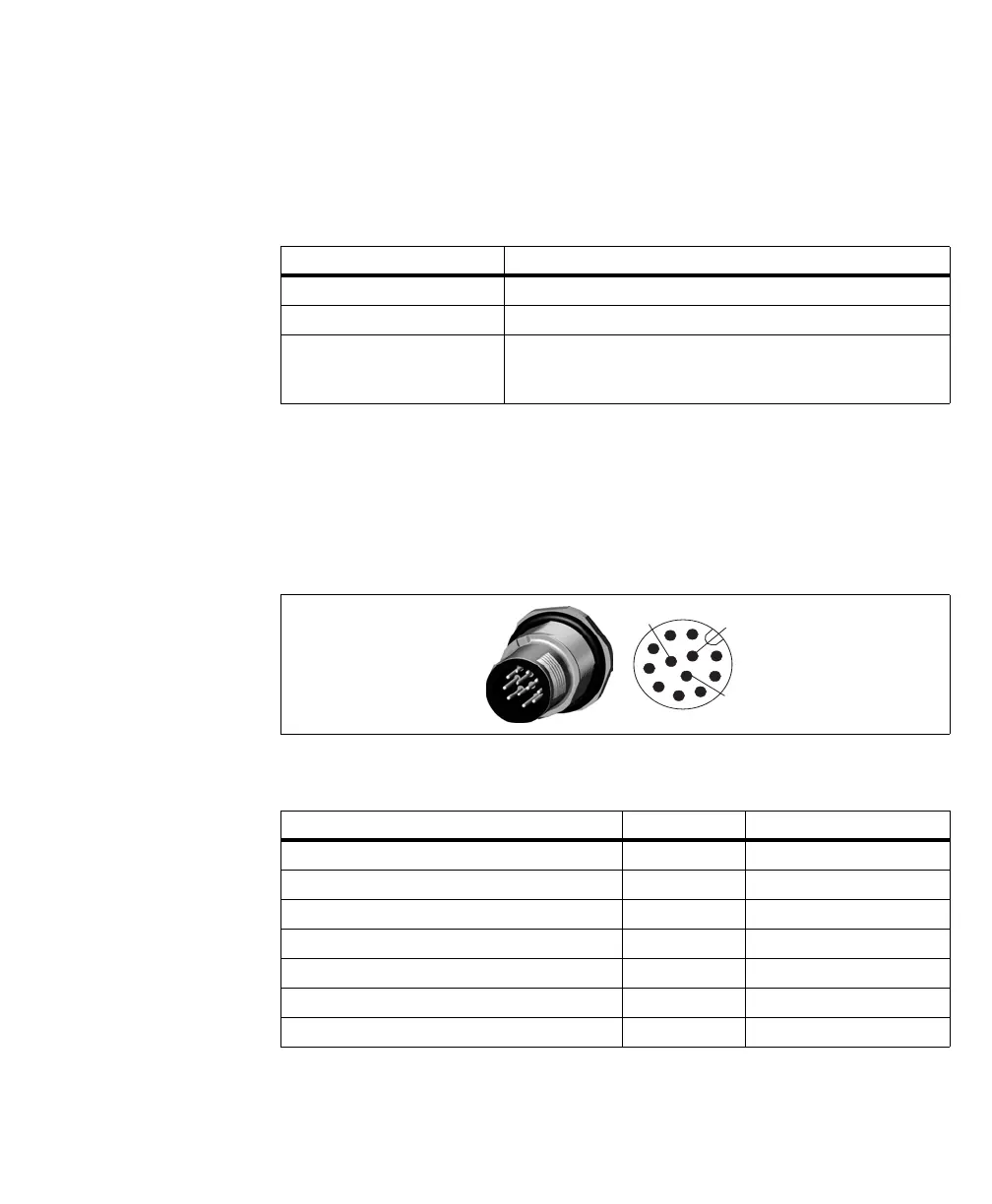

VGA/USB connector
The VGA/USB connector is an M12 12-pin (male) connector that transmits
output video and can both transmit and receive USB signals. The output video
signal is a standard RGB analog video output used to send the operating system’s
desktop to the connected display device.
The table below summarizes the supported standard display resolutions:
Cable information
Manufacture Phoenix Contact GmbH & Co. KG
Part number: NBC-MSX/5.0-94F/R4AC SCO Order No.: 1407473
Description: Assembled Ethernet cable, CAT6A, 8-position, PUR, RAL 5021 (water
blue), Plug straight M12 SPEEDCON / IP67, Coding: X, on plug straight
RJ45 / IP20, length 5 m.
Standard display resolution Analog video Maximum refresh rate
1920 × 1200 RGB 60 Hz
1920 × 1080 RGB 60 Hz
1600 × 1200 RGB 60 Hz
1280 × 1024 RGB 85 Hz
1024 × 768 RGB 85 Hz
800 × 600 RGB 85 Hz
640 × 480 RGB 85 Hz
4
11
3
2
10
1
9
12
8
7
6
5
