Connecting a sinking output device to an auxiliary input signal

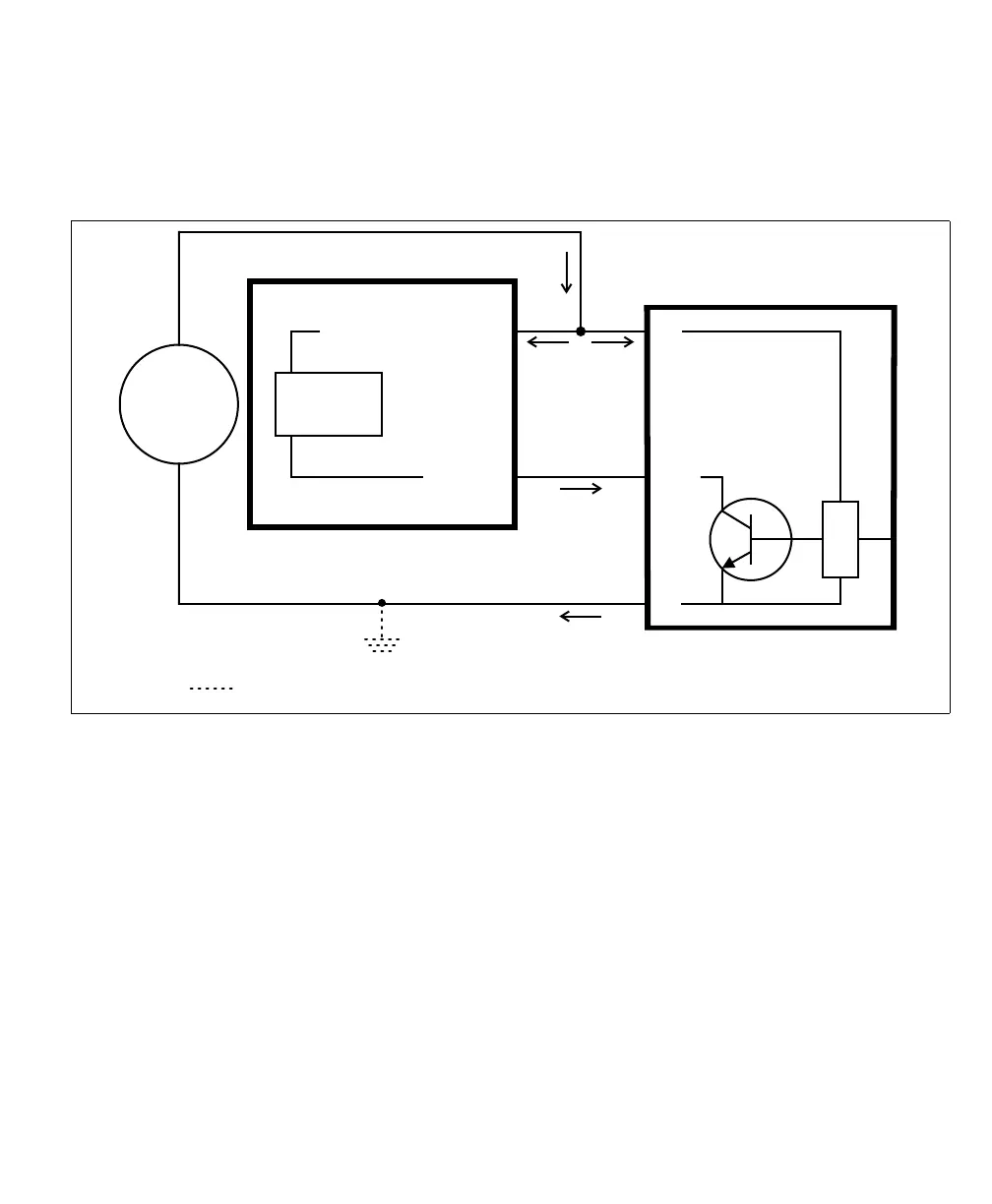

Connect a sinking output device to a Matrox Iris GTR auxiliary input signal, as
shown below.
Equivalent circuit only
24V
Sensing
Circuit
AUX IN_
AUX IN_COMMON_
OUT
Sinking device
Matrox Iris GTR
Sourcing configuration
+
-
+V
-V
Optional because the auxiliary input signals are optically isolated.
