Matrox MXO2 - Mxo2 Inputs

290
Appendix B, Matrox MXO2 Connectors
Inputs
The following sections detail the MXO2, MXO2 Rack, MXO2 LE, and MXO2
Mini inputs.

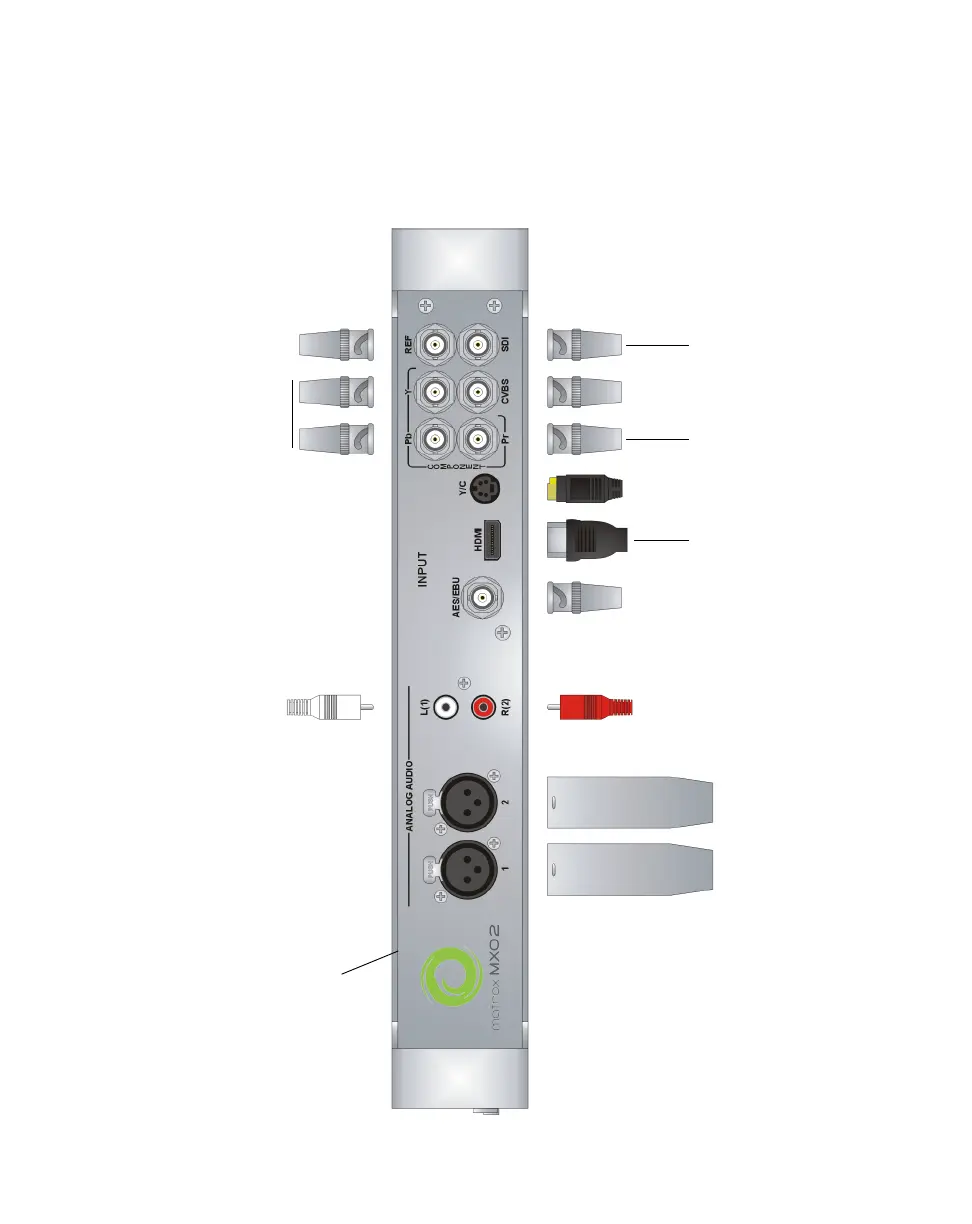

MXO2 inputs
Analog
audio
(balanced)
CH 1
AES/EBU
digital
audio
CH 1/2
HDMI
(HD only)
Y/C
(S-Video)
External
reference
(REF)
Composite
video
SDI
(HD/SD)
Analog
audio
(balanced)
CH 2
Analog
audio
(unbalanced)
CH 1
Analog
audio
(unbalanced)
CH 2
Component
video
(HD/SD)
Pb Y
Component
video
(HD/SD)
Pr
Matrox MXO2
