Typical Matrox MXO2 Mini connections
Typical Matrox MXO2 Mini connections
In the following typical connection examples, we’ve connected a monitor to view
the signal that will be recorded, and separate source and record decks. You may,
however, use the same deck as both your source and record device by making the
input and output connections to a single deck. For details on the Matrox MXO2
Mini connectors, see Appendix B, “Matrox MXO2 Connectors.”
Analog component video connections

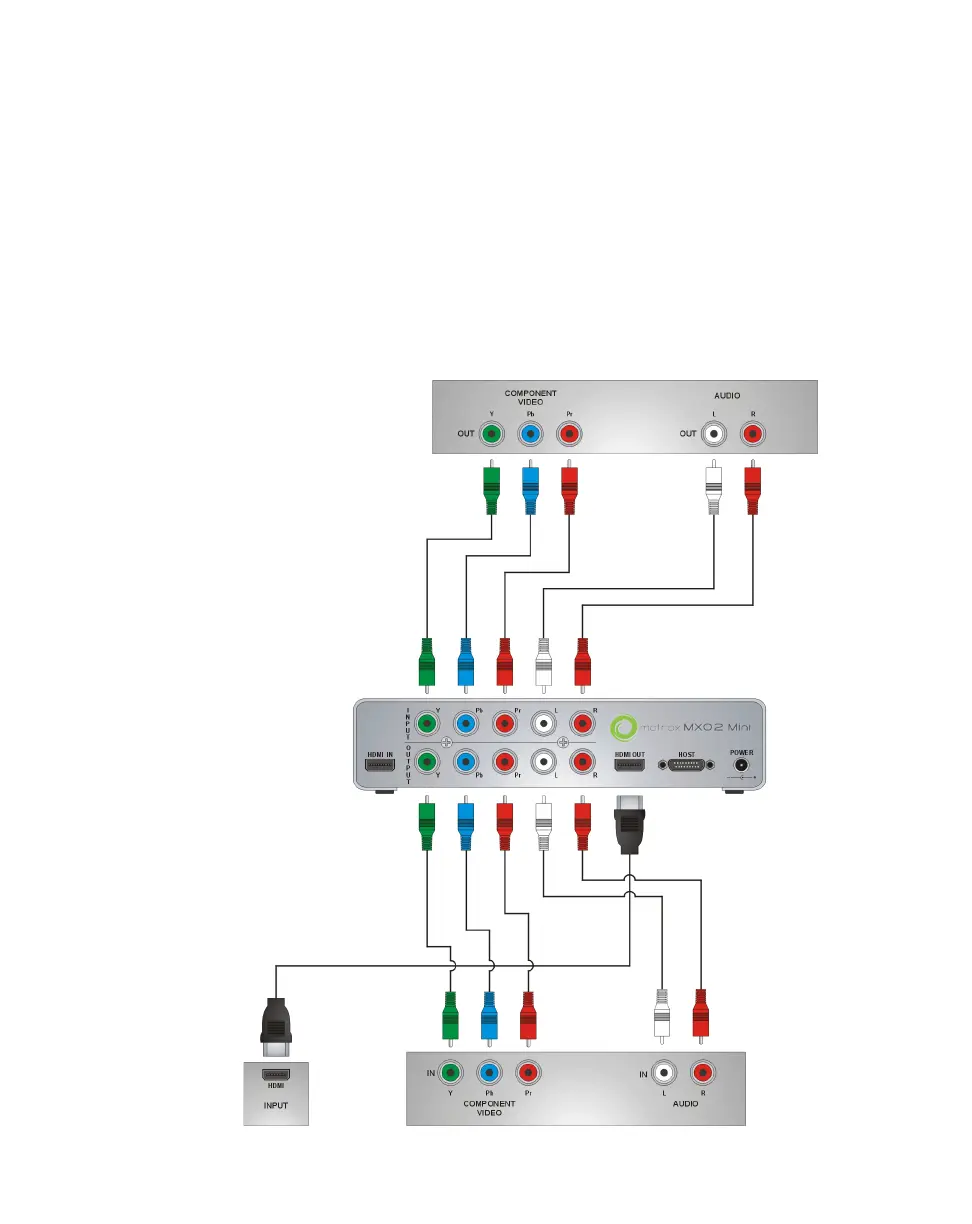

In this illustration, we’re using component connectors for video, RCA connectors
for audio, and an HDMI connector for video monitoring. The video is genlocked
to the input source using MXO2 Mini’s built-in genlock.
Source
(Deck 1)
Recorder
(Deck 2)
HDMI
monitor
MXO2 Mini
