Matrox MXO2 - Digital Video Connections

29

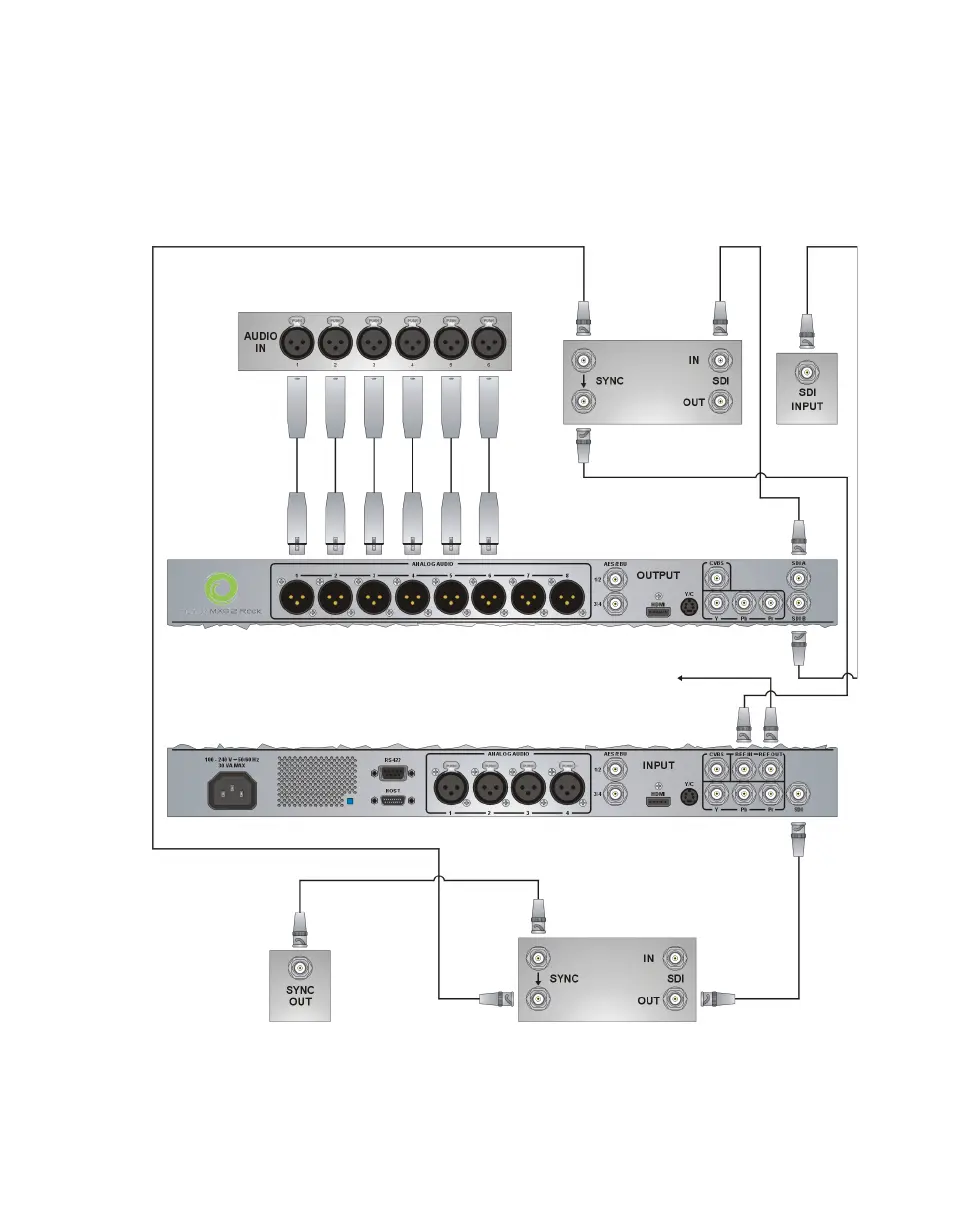

Typical Matrox MXO2 Rack connections
Digital video connections
In this illustration, we’re using SDI connectors for video and audio, an SDI
connector for video monitoring, and we’re monitoring the audio on a surround
sound speaker system through XLR connectors. The video is genlocked using a
tri-level sync generator.
Recorder
(Deck 2)
Video
monitor
Surround sound
speaker system
Source
(Deck 1)
Tri-level
sync
generator
MXO2 Rack (partial view)
MXO2 Rack (partial view)
To another device’s
reference input. If not used,
terminate the signal with a
BNC 75-ohm terminator.
