38
Chapter 5, Connecting External Devices to Matrox MXO2 LE
Digital video connections

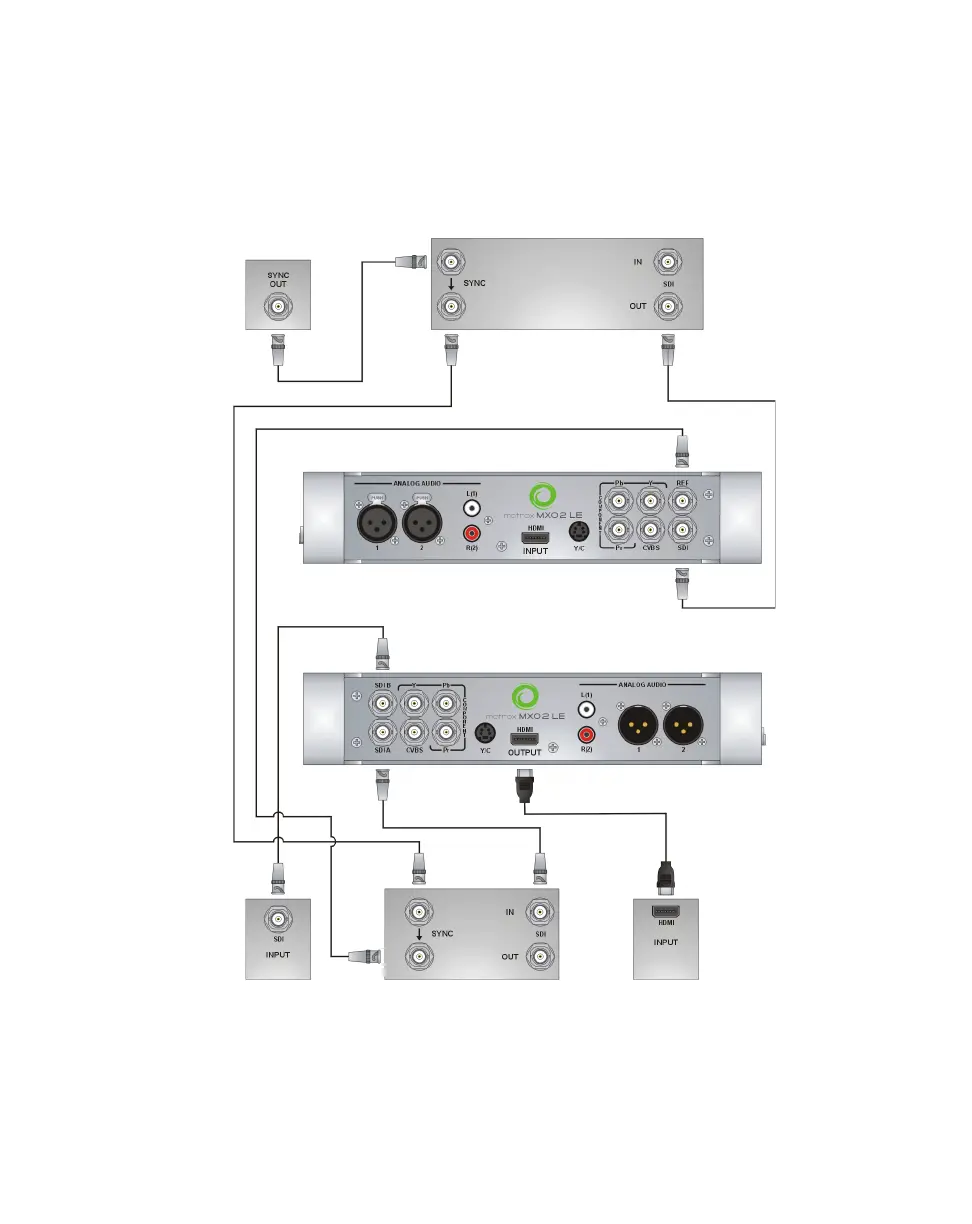

In this illustration, we’re using SDI connectors for video and audio, an SDI
connector for video monitoring, and we’re monitoring the audio on a surround
sound speaker system through an HDMI connector. The video is genlocked using
a tri-level sync generator.
Recorder (Deck 2)Video monitor Surround sound
speaker system
Source
(Deck 1)
Tri-level
sync
generator
MXO2 LE Outputs
MXO2 LE Inputs
To Next Page
