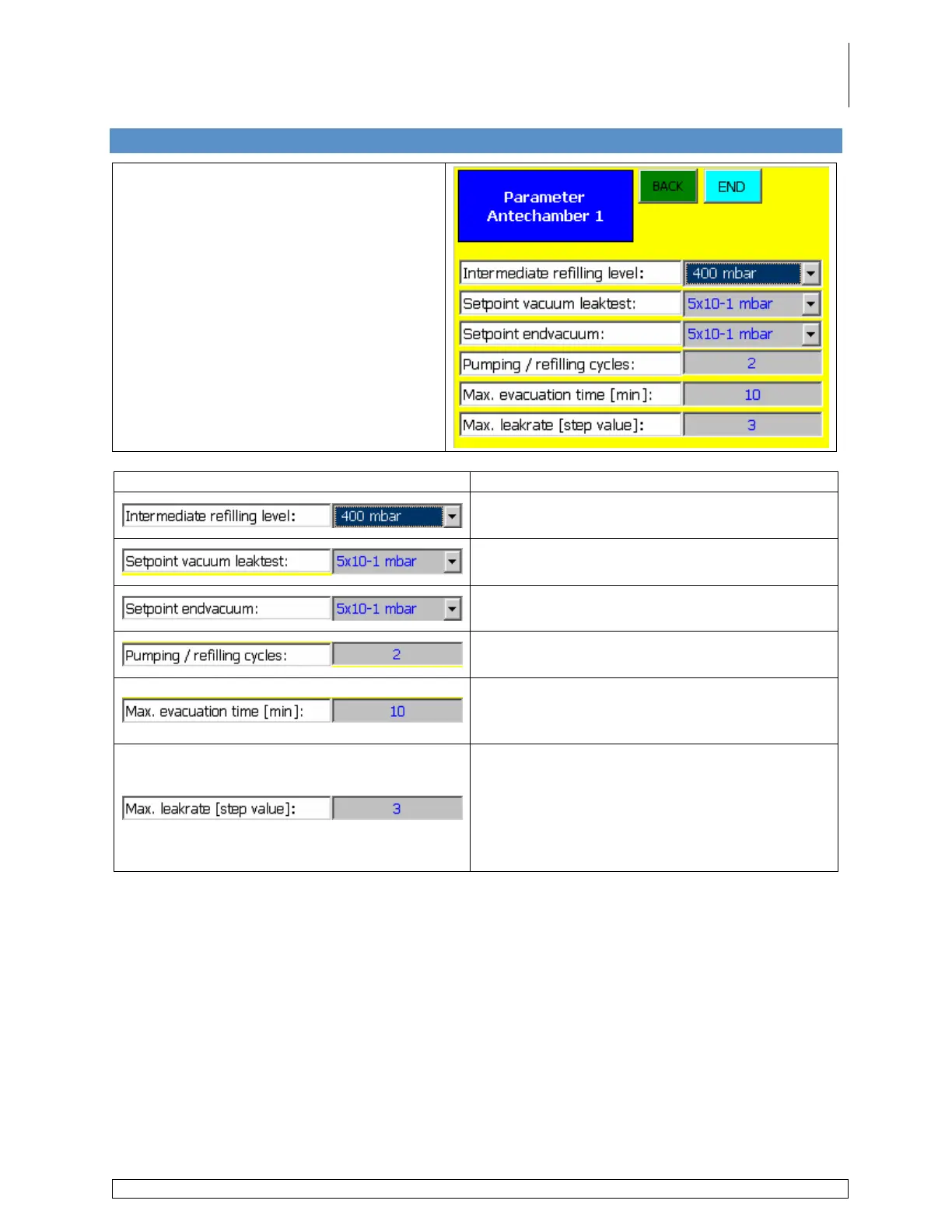

5.8 Antechamber Parameters Screen
Accessed via the Antechamber Screen
by touching the Parameters button.
Information Field / Icon / Button Description
Level at which the antechamber refills during
the automatic evacuation/refill cycle.
The level at which a leak test is performed on
the antechamber in automatic mode.
Level at which the refill process of the
antechamber is initiated in automatic mode.
Number of intermediate refill cycles performed
in automatic mode.
The maximum amount of time allowed for the
antechamber to evacuate to the vacuum set
point.
Level at which the system alarm will display,
above the vacuum leak test set point value.
For example if the setpoint is 5x10
-1
mbar and
the maximum leak rate value is 3, the alarm
will not display until the set point reaches
8x10
-1
mbar.
