Operating Instructions – Labmaster
©
130 and MB20G Systems
Instruction Manual
Chapter 7: Installation
© MBraun, Inc. Edition 1/2007 Page 7-14

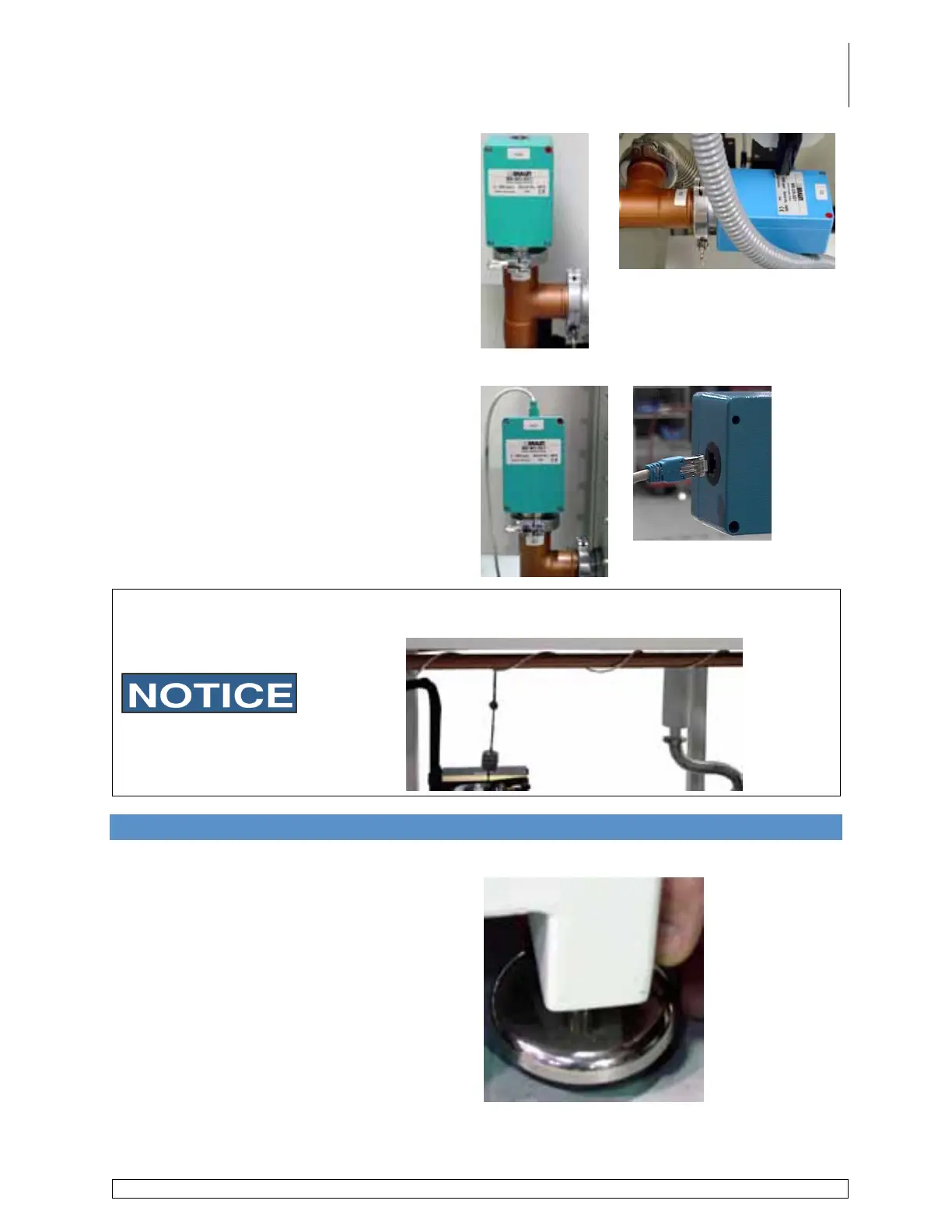

Secure the analyzer to the pipe using a KF-40
clamp and o-ring.
Repeat this process with the remaining analyzer(s).
Insert the analyzer cable plug into hole on the
corresponding analyzer by pushing the plug
into the hole gently until it snaps into place.
The Green plug attaches to the H2O Analyzer.
The Blue plug attaches to the O2 Analyzer.
The green plug cable should be wrapped along the circulation pipe
and then plugged into the moisture analyzer.
7.12 Lowering the Leveling Feet
Move the system into its permanent location.
Lower each of the leveling feet by hand until
they touch the ground.
