CHAPTER 7: INSTALLATION
7.1 General Information
The M.Braun glovebox has been fully assembled, operated and tested at our production facility.
The information binder contains the:
• Glovebox Project Checklist – Displays detailed information regarding the glovebox
system
• Test Sheet – displays the various operations and components which were tested during
production
• Product Identification and Traceability – Lists all serial numbers for the components
included on the system
• Vendor Component Manuals – Operating instructions, etc. for components included on
the system which are not manufactured by M.Braun.
The glovebox and antechamber(s) have been fully tested for leaks under positive and negative
pressure. The vacuum level during the regeneration process has also been tested to ensure
that the glovebox purifier performs optimally.
This chapter provides information regarding the actual assembly of the glovebox prior to use. All
instructions included in this chapter should be strictly adhered to. Any questions that arise
during the installation process should be directed to the M.Braun Service Department.
The Unilab system comes complete and ready to assemble. The components, which have been
numbered for ease in assembly, should be installed in the order listed in these instructions not
in the order which they are numbered.
All clamp and o-ring assemblies used to
attach pipes and hoses should be tightened
finger tight.
Prior to tightening the clamp onto the flange,
ensure the o-ring and other components are
seated properly to avoid leaks.

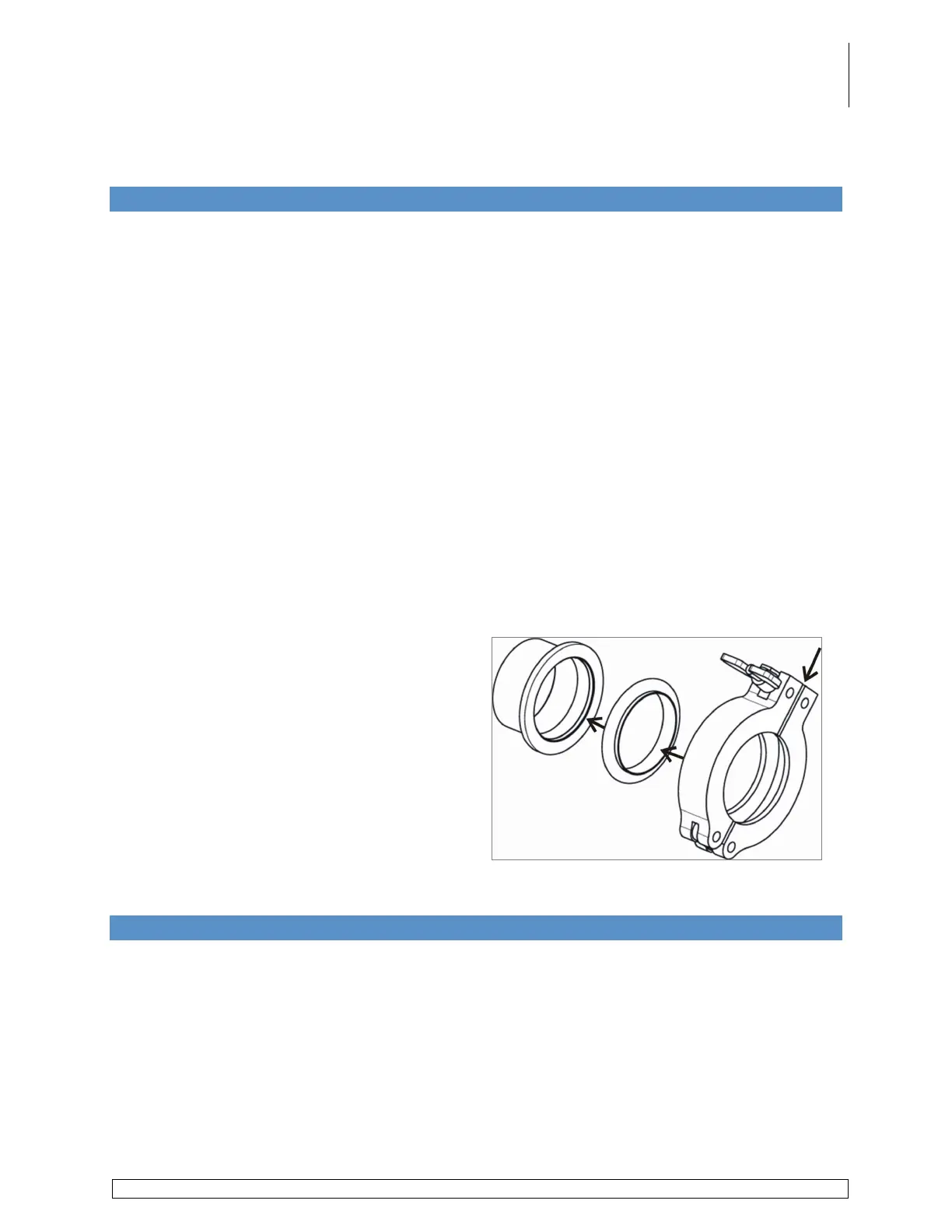

Figure 1 - Clamp, Flange, O-Ring Assembly
7.2 Tools and Materials Required
Tools (not supplied by M.Braun):
• 13mm Wrench • 18mm wrench
• 19mm Wrench • Adjustable Wrench
• Flathead Screwdriver
