Operating Instructions – Labmaster
©
130 and MB20G Systems
Instruction Manual
Chapter 7: Installation
© MBraun, Inc. Edition 1/2007 Page 7-2

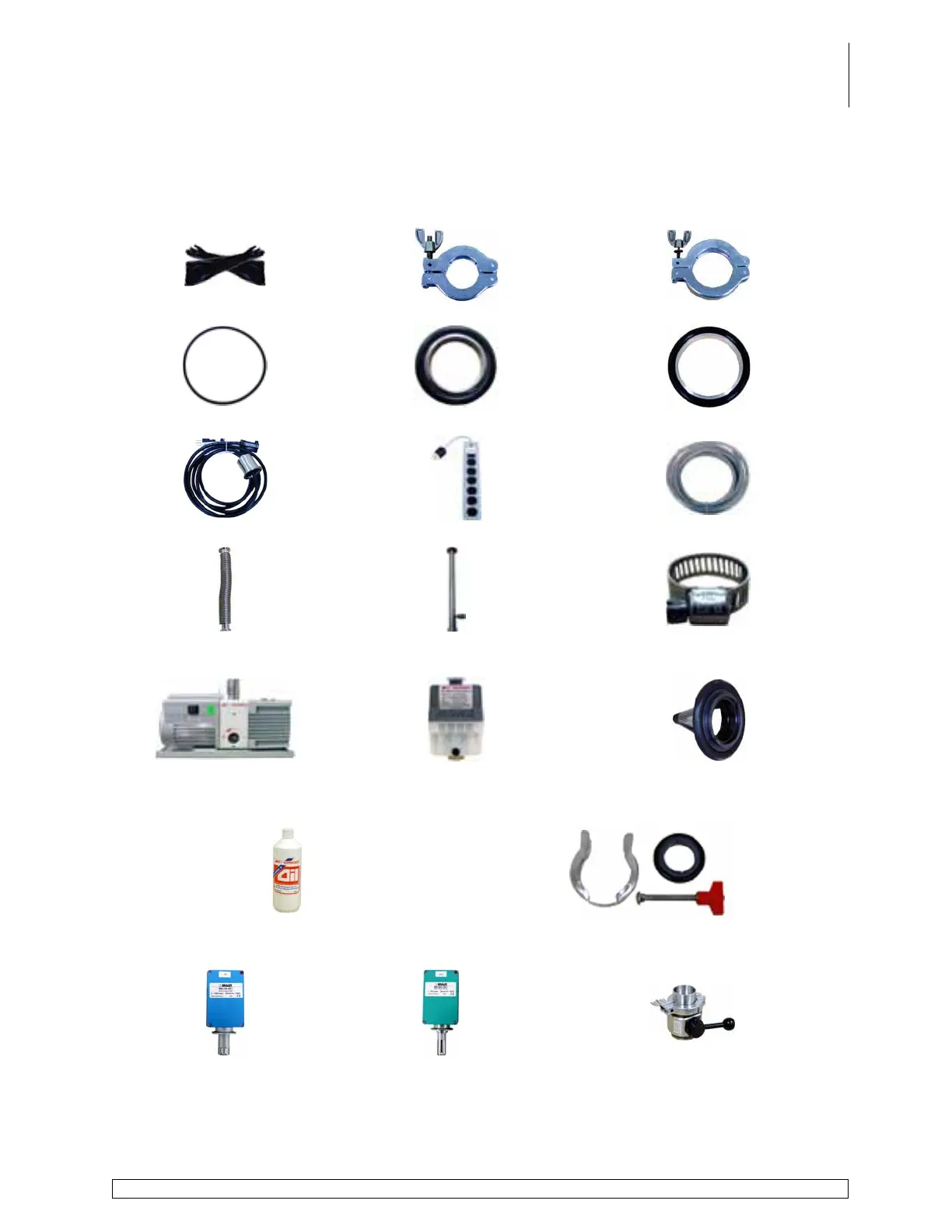

Materials:
The quantity for each material or component listed below will vary depending upon the length
of the system (i.e. 1250/780, 2500/1000, etc.). Please refer to the checklist included with the
system for exact quantities.
Gloves KF25 Clamp KF40 Clamp
Glove O-ring KF25 O-ring KF40 O-ring
Electrical Feedthrough Power Strip 3/8” Braided Tygon
®
Tubing
KF25 Stainless Steel
Flexible Hose
1” Pipe
(copper or stainless steel)
Hose Clamp
Vacuum Pump
Oil Mist Filter
Quantity (1) per vacuum pump
Funnel O-ring
Quantity (1) per vacuum pump
Oil
Quantity (1) bottle per vacuum pump
U-shaped clamp, O-ring, Bolt and Thumb Screw for
Oil Mist Filter
Quantity (1) each per vacuum pump
O2 Analyzer
Optional Item
H2O Analyzer
Optional Item
Manual Purge Valve
Optional Item
