Operating Instructions – Labmaster
©
130 and MB20G Systems
Instruction Manual
Chapter 7: Installation
© MBraun, Inc. Edition 1/2007 Page 7-6
7.6 Stand Mounted Purifier
Systems with stand mounted purifiers only require the vacuum pump and other miscellaneous
components to be connected prior to use. Please refer to sections 7.7 through 7.<> for
instructions on connecting the other components pertaining to the system.

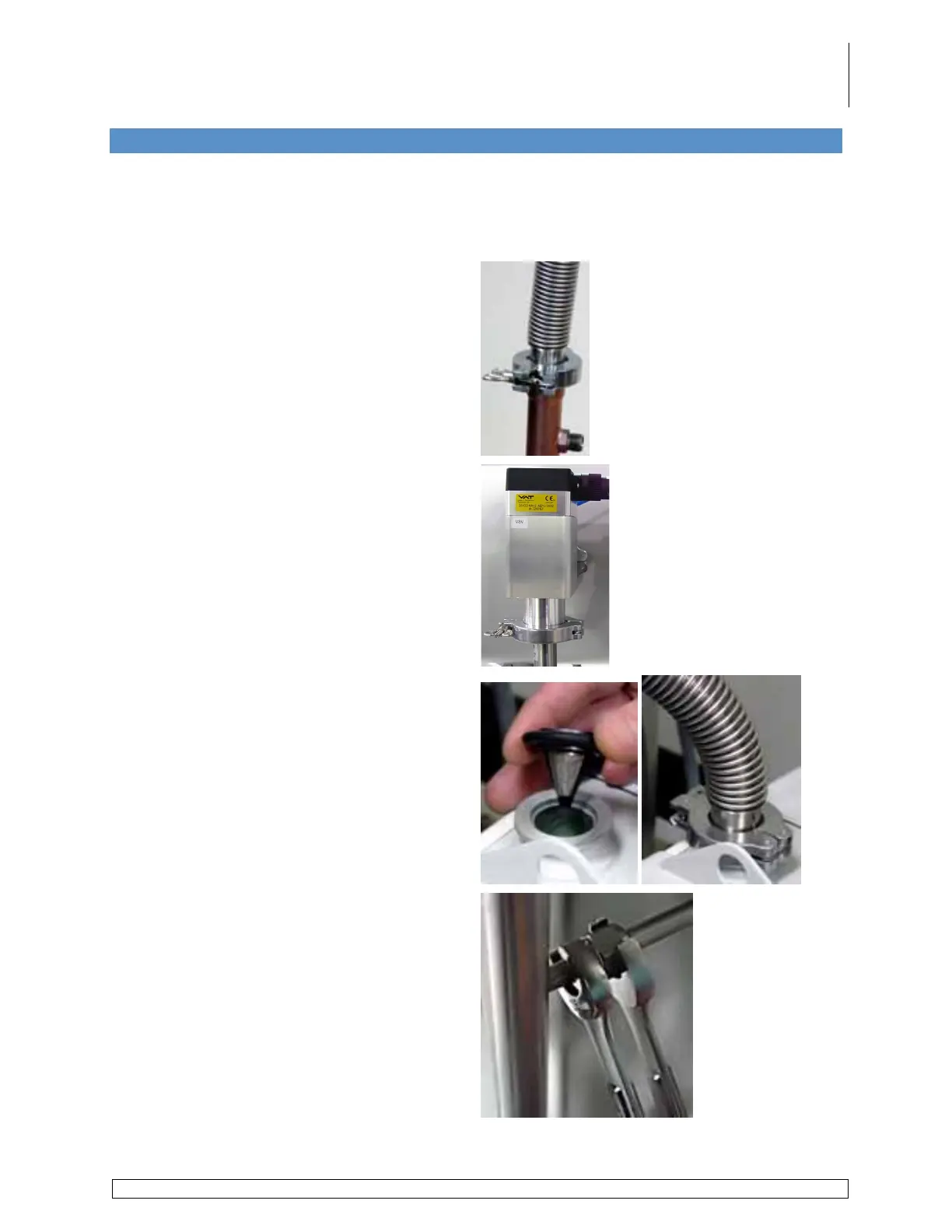

Connecting the Vacuum Pump
Attach the KF25 stainless steel flexible hose
to the end of the 1” pipe with the port using a
KF25 clamp and o-ring.
Attach the pipe to the valve located on the
bottom of the rear side of the antechamber
using a KF40 clamp and o-ring.
Attach the stainless steel flexible hose to the
port on the vacuum pump with the funnel
shaped o-ring using a KF25 clamp.
Attach the fitting on the purifier vacuum hose
(H) to the port on the copper or stainless pipe
and tighten hand tight.
Using the 19mm and 18mm wrenches
Tighten an additional ¼ turn.
