Operating Instructions – Labmaster
©
130 and MB20G Systems
Instruction Manual
Chapter 7: Installation
© MBraun, Inc. Edition 1/2007 Page 7-5

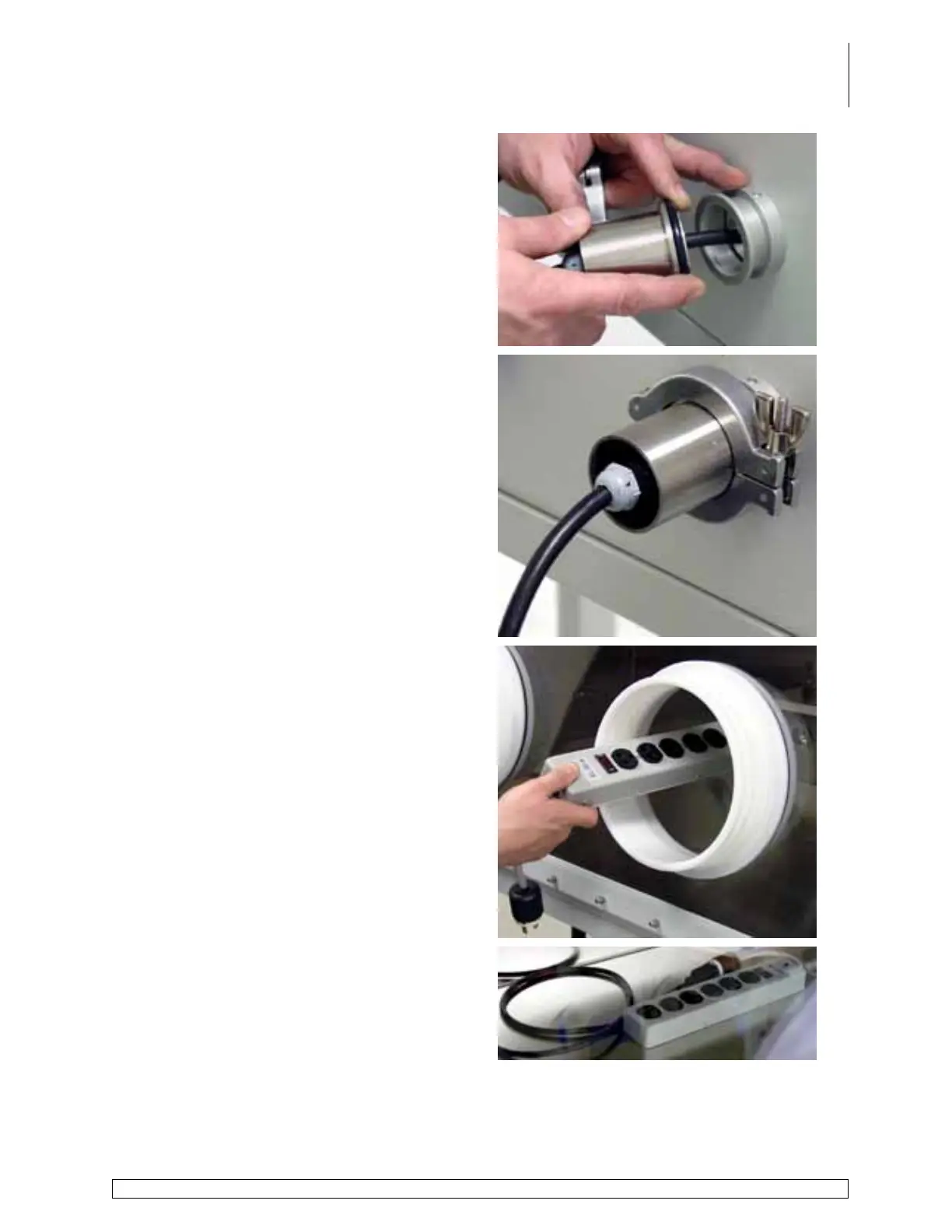

Place the female connector end of the
feedthrough into the flange and feed into the
box until the feedthrough flange is flush with
the box flange.
Place the clamp around the flange and tighten.
Place the 6 outlet power strip inside the
glovebox through one of the gloveports located
on the front of the box.
Plug the power strip into the feedthrough.
