Contender Front Loader
Preventive Maintenance

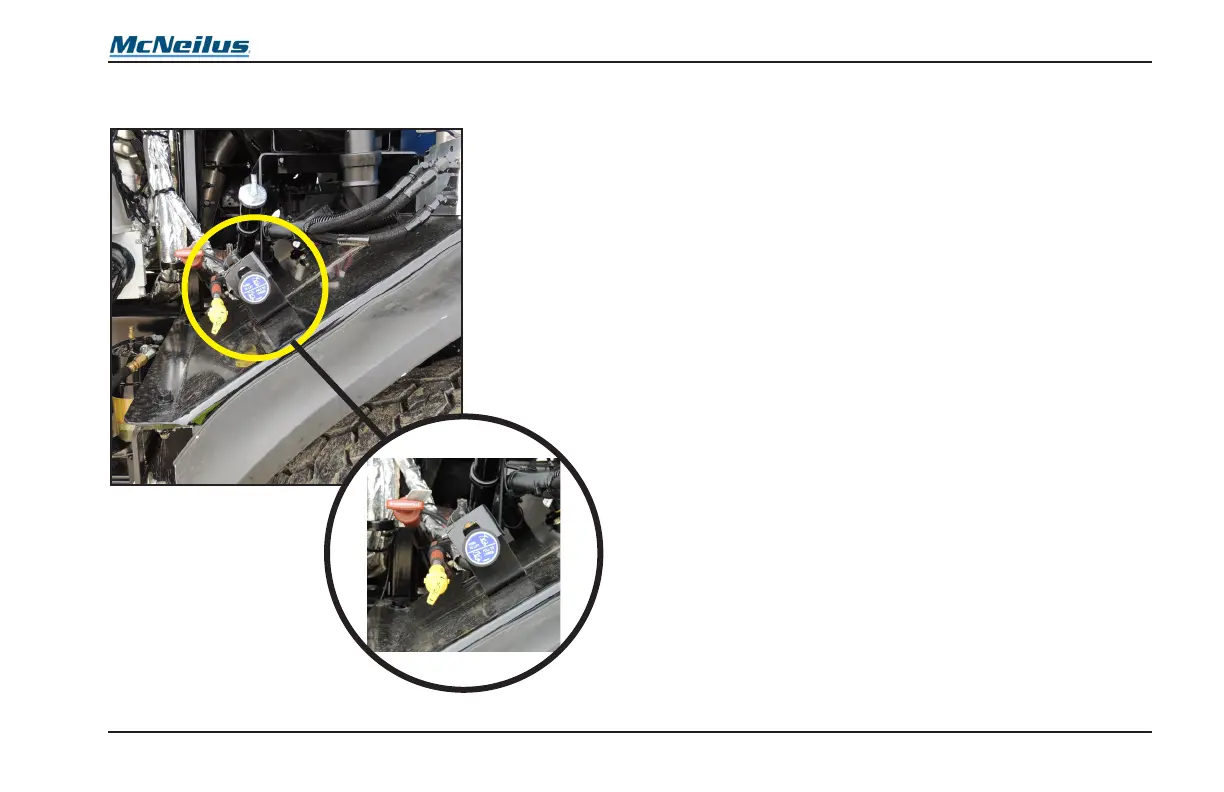

4. Locate the pneumatic canopy control button which will be
outside between the cab and the body (Figure 59).
Figure 59
5. Push up on the transit latch that holds the canopy control
button in position to unlatch the button.
6. Push the control button to lift the canopy.
7. The canopy is now held in the UP position.
8. Push the transit latch down on the control button to keep
it in that position.
9. The cab can now be tilted up.
Lowering the Canopy
1. Lower the cab.
2. Push up on the transit latch that holds the canopy control
button in position to unlatch the button.
3. Pull the control button to lower the canopy all the way
down.
4. Push the transit latch down on the control button to keep
it in that position.
5. Procedure is complete. Return truck to service.
