MDS 05-2806A01, Rev. A MDS iNET 900 User’s Guide 97
5.1 PLANNING AN iNET RADIO
NETWORK
This section provides tips for selecting an appropriate site, choosing an
antenna system, and reducing the chance of harmful interference.
5.1.1 General Requirements
There are three main requirements for installing iNET unit—adequate
and stable primary power, a good antenna system, and the correct inter-
face between the iNET 900 and the data device. Figure 5-1 shows a typ-
ical Remote Gateway installation.
Invisible place holder

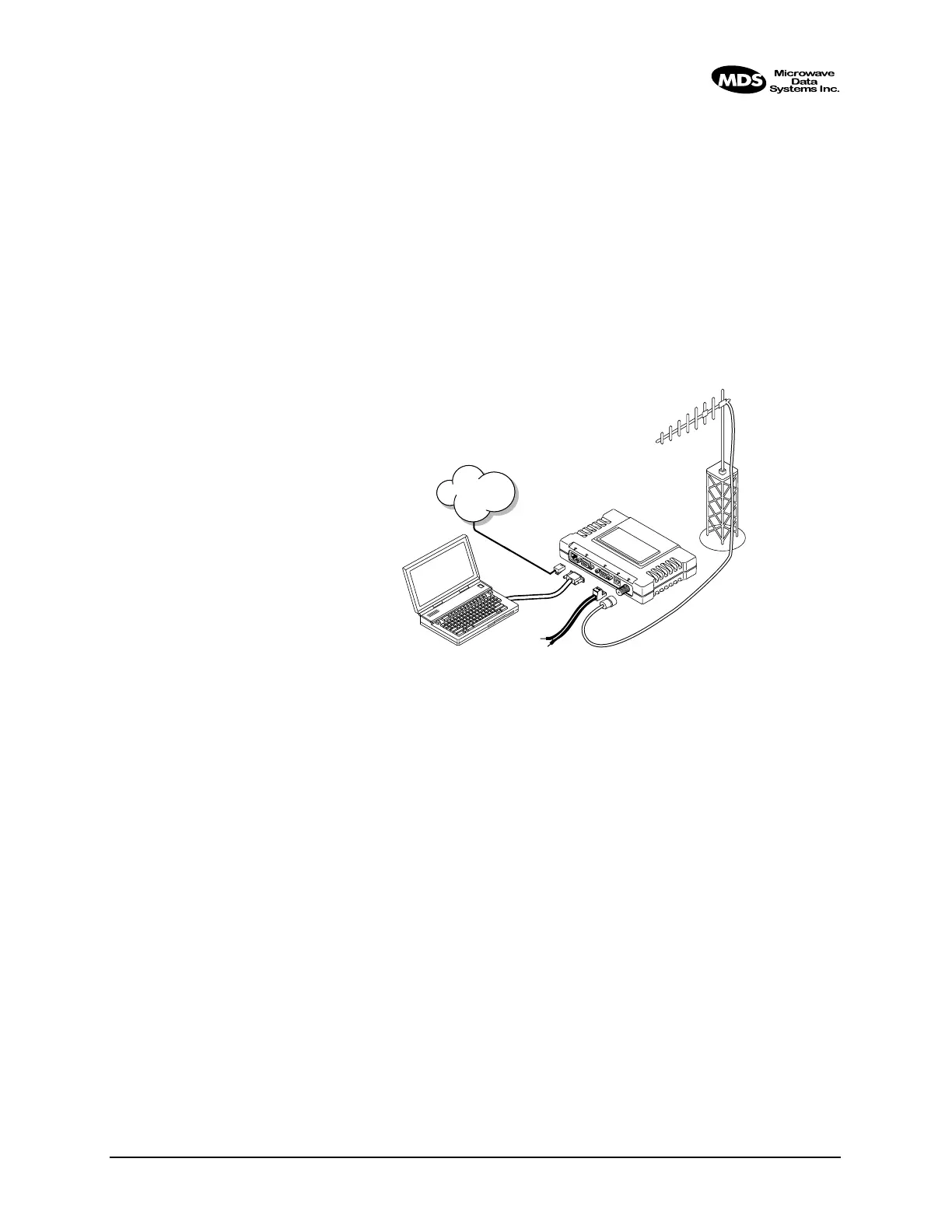

Figure 5-1. Typical Installation with a tower-mounted antenna
(Connect user data equipment to any compatible LAN or COM Port)
POWER SUPPLY
13.8 VDC @ 580 mA (Max.)
(10.5–30 Vdc)
Negative Ground Only
COMPUTER
W/TERMINAL
EMULATOR
MDS iNET 900
LOW-LOSS FEEDLINE
ANTENNA
SYSTEM
LAN
COM1
COM2
PWR
LINK
Network
