Meditech TA80V - Bellow Integrated Interface

TA80V User Manual
9
Item
Icon
Instruction
1
APL Valve
During manual ventilation,
adjust the pressure limits of
the respiratory system.
Adjustment range: 0.19 ～
6kPa
Figure 2-3 Function of APL Valve
2.2.1. Bellow Integrated Interface
Warning It is prohibited to connect the exhaust system interface directly to the negative
pressure system. Otherwise, it will cause air leakage in the breathing circuit
Tip: When the exhaust gas exhaust system uses φ22mm pipeline, the adapter can be used to
connect the exhaust system and the bellow.

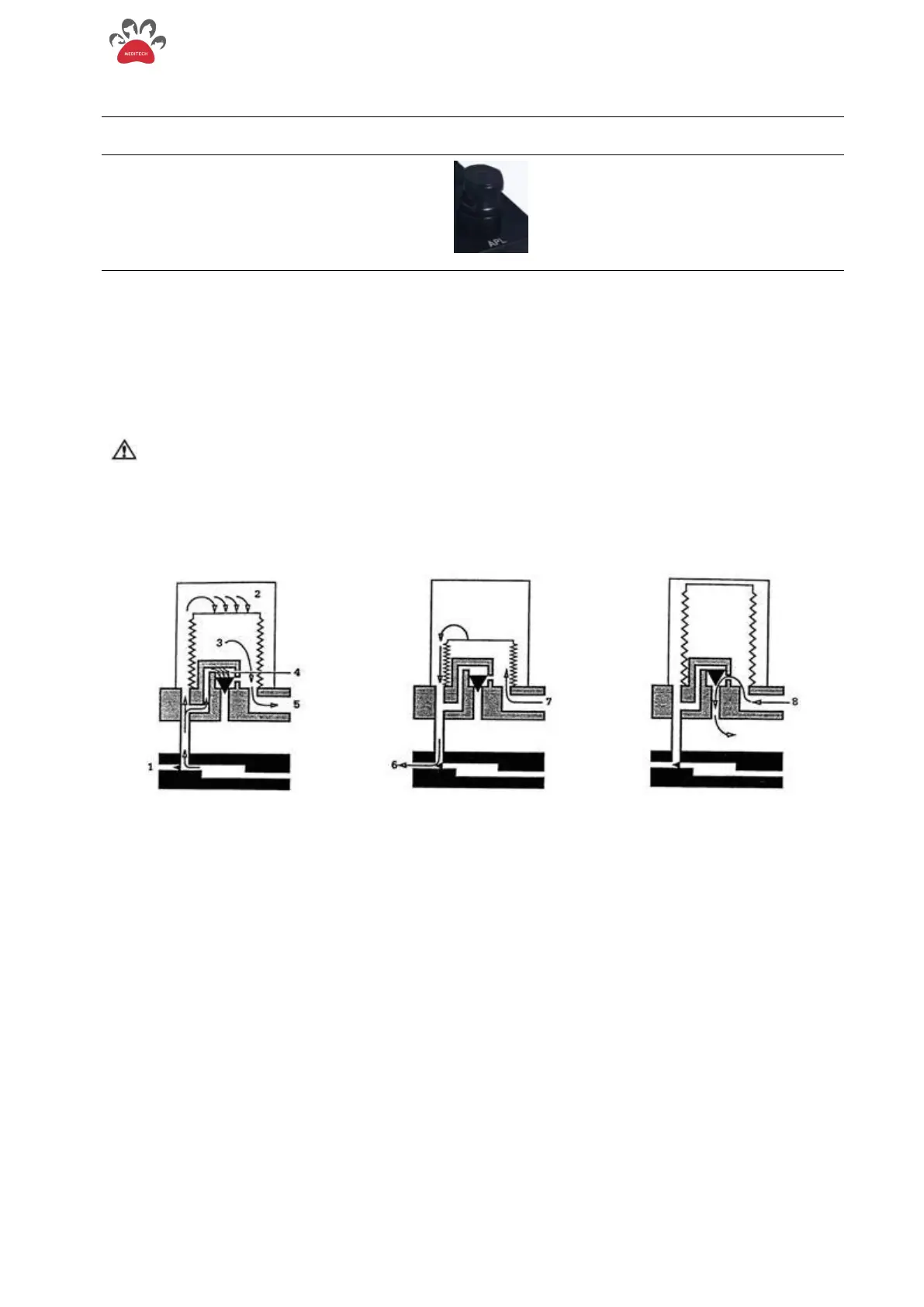

Initial Inspiratory :
1 Exhalation valve
2 Drive gas
3 Animal breathing circuit gas
4 Pressure release valve
5 to the breathing circuit
Initial Exhalation :
6 Drive gas
7 Breathing circuit
End-expiratory :
8 Excessive circuit gas
Figure 2-5 Breathing Circuit
