5.4.2. USB Port
There is a MiniUSB interface on the back of the ventilator used to make software upgrades to the
ventilator.
5.4.3. Gas Supply Inlet

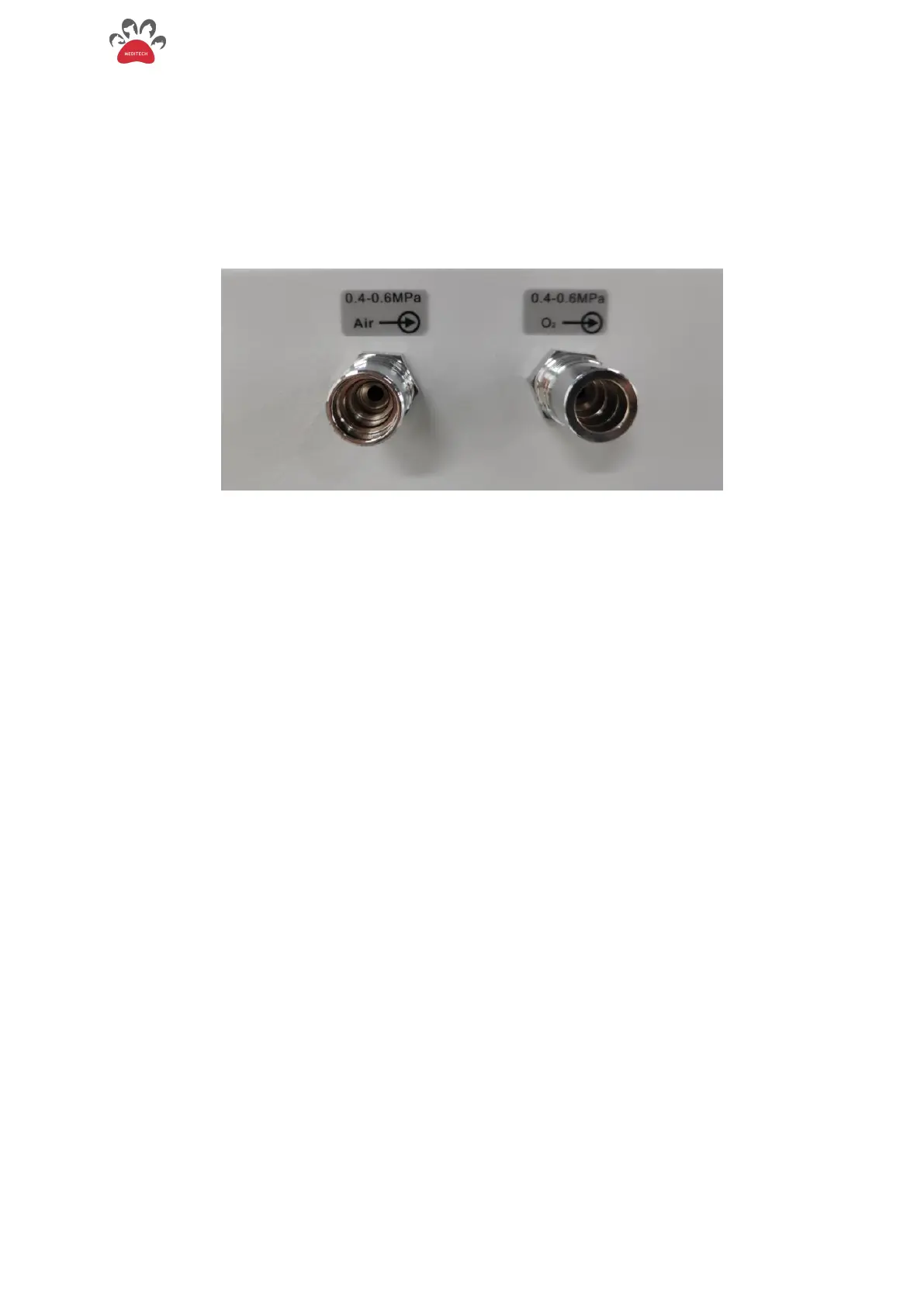

Figure 5-2 Air and O2 Inlet
The gas pipeline interface adopts a diameter limit method and is not interchangeable, effectively
preventing the possibility of incorrect connection.
5.5. Connection to the Exhaust Gas Absorption System
There are two interfaces for exhaust emissions in this system:
1. APL valve
2. Bellow exhaust outlet
Connection method: Use pipes to connect these two interfaces to the exhaust gas receiving system.
Among them, the air box exhaust gas discharge port can be connected to the receiving system
through the adapter.
