TA80V User Manual
57
6. ExpScale = ((TV-200/TVexp-200) + (TV-300/TVexp-300) + (TV-500/TVexp-500) +
(TV-600/TVexp-600) + (TV-800/TVexp- 800))/5; rounded to an integer.
7. Reset the inspiratory proportion coefficient and expiratory proportion coefficient of the ventilator
according to the calculated values.
7.3.6. Calibration of the Flow Valve
Warning
Calibration of the flow valve requires factory-trained engineers to use special
equipment. Users are not recommended to perform this operation.
7.4. Maintenance of the Oxygen Sensor
Make regular regularly, refer to section 7.2.1.
7.4.1. Main Technical Requirements of the O2 Sensor
The oxygen sensor is a consumable product. Users should pay attention to the validity period of the
sensor and use it in accordance with the characteristics and technical requirements provided by the
manufacturer. The following are the main technical requirements for the O2 sensor used in TA80V.
Interface maximum input range: 0-500mV DC

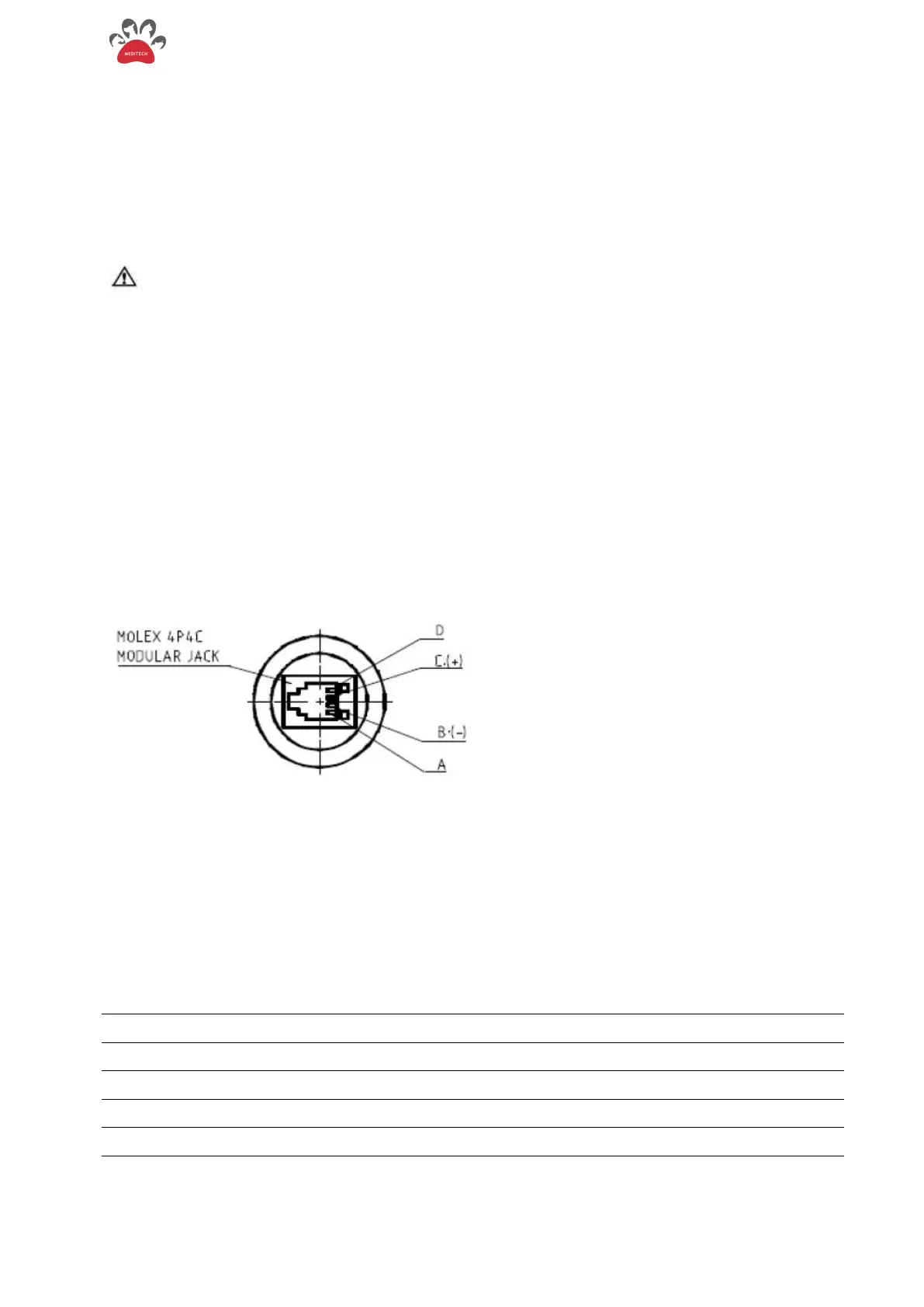

Interface form and definition: FCC-68 4-pin telephone plug (RJ11-4), see below the picture
Typical input at 21% concentration: 5-20mV
Measurement accuracy and full-scale error: <1% (0-100%)
Working temperature: 0-40℃
Response time: no more than 20s
Service life: not less than 12 months (subject to actual product indicators)
Comply with standards: EN12598/ISO7767
7.4.2.Recommended Model and Main Characteristic Parameters
model
MOX-4
manufacturer
City
Response Time (sec)
15
Validity period (month)
12
Currently optional models
yes
Note: The specific parameters shall refer to the latest technical data published by the
manufacturer.
