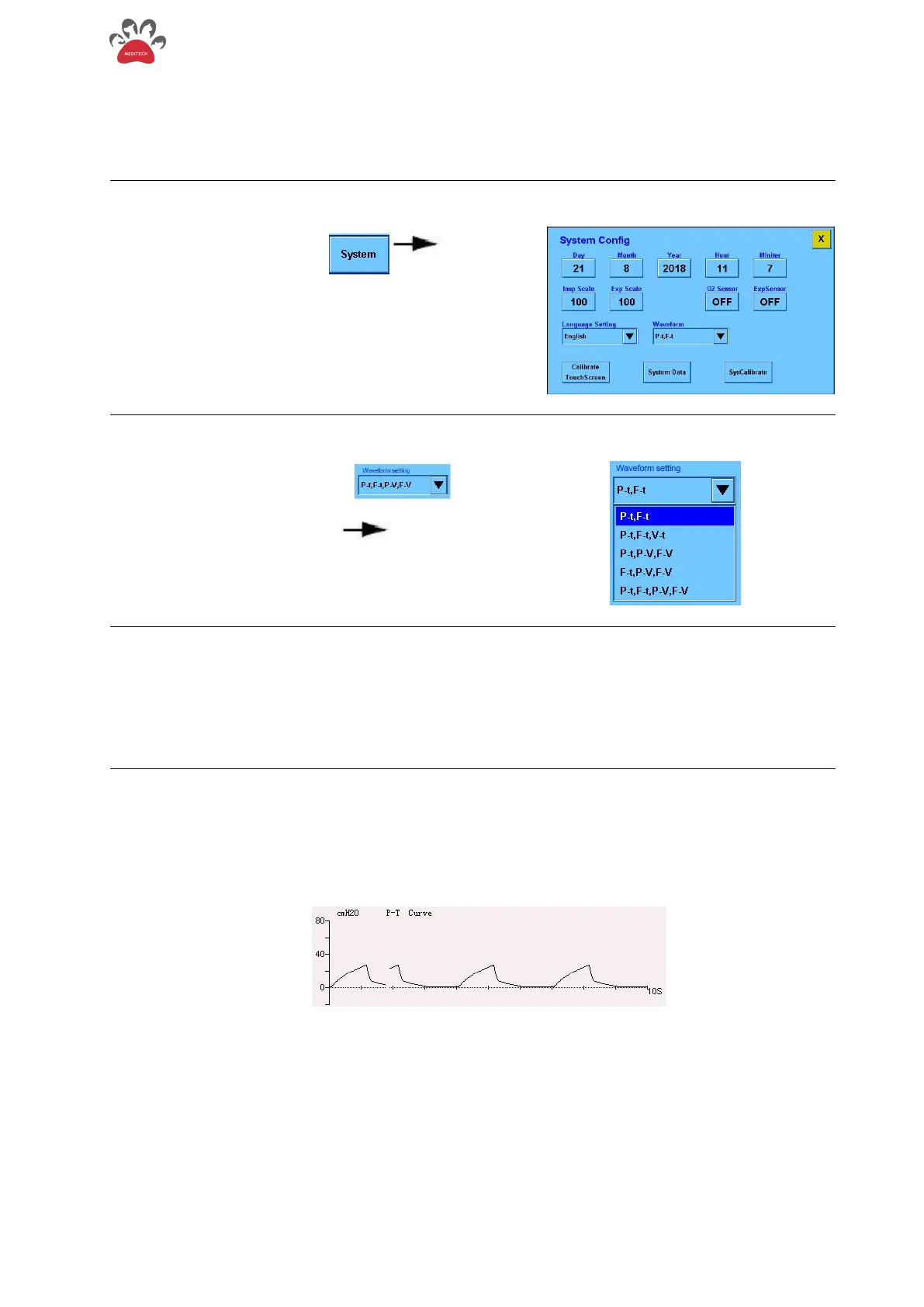

3.3.6 Set Up the Waveform
The system waveform can be set in 4 combinations (P-t, F-t; P-t, F-t, V-t; P-t, P-V, F-V; F-t, P-V, F-V).
Step 1
The system waveform can
be set in 4 combinations
(P-t, F-t; P-t, F-t, V-t; P-t,
P-V, F-V; F-t, P-V, F-V).
Step 2
Touch the "Waveform"
drop-down menu.
Step 3
Click the combination
needed to complete the set.
3.4. Waveform
3.4.1 Pressure time waveform (Paw-t)
The ordinate represents the airway pressure, and the abscissa is the time.
Figure 3-6. Pressure-time waveform
3.4.2 Flow rate- time waveform(Paw-t)
Above the time axis, it represents the positive inhalation direction; below the time axis, it represents
the negative exhalation phase. The flow rate is 0L/min, which means that there is no gas flow rate in
the airway.
