TA80V User Manual
Filling of absorption canister
1. Remove the soda lime or calcium lime from the canister.
2. For cleaning and sterilization of the absorption tank, please refer to Section 6.3 of this
manual.
3. After the absorption tank is dry, pour the soda lime or calcium lime into the absorption tank,
wipe off the soda lime powder sprinkled on the edge, and install the absorption tank. Make
sure the lid seals properly to prevent leaks and spills.
5.3. Connection of the Pipeline
Attention
The O2 monitor is installed at the inhalation port of the absorber canister.
5.4. Connection of Gas and Electrical
Warning
Failure of the central air supply system may cause one or even all connected
devices to stop working at the same time.
Attention Only use medical gas sources. Other types of gas sources may contain water, oil,
or other contaminants.
Attention Disconnect the gas source after use to prevent contamination of the piping system.
Warning The anesthesia system provides O2 and Air connection methods. Moreover, the
pipe connections of these two gases have different sizes to ensure that the
operator does not operate incorrectly. The front of the anesthesia machine is
equipped with a continuous pressure monitoring device for each gas connected
through the lines to the centralized gas supply..
5.4.1. AC Power Inlet
As can be seen from the picture, the AC power requirement is 100-230VAC 50/60Hz, and the
maximum allowable current is 2A. The specification of the fuse is 250V2A φ5X20 (F). The power cord
is fixed on the casing with a clip to prevent the power cord from accidentally falling off.
The two sockets on the left are sockets for external devices, with a maximum allowable current of
5A.

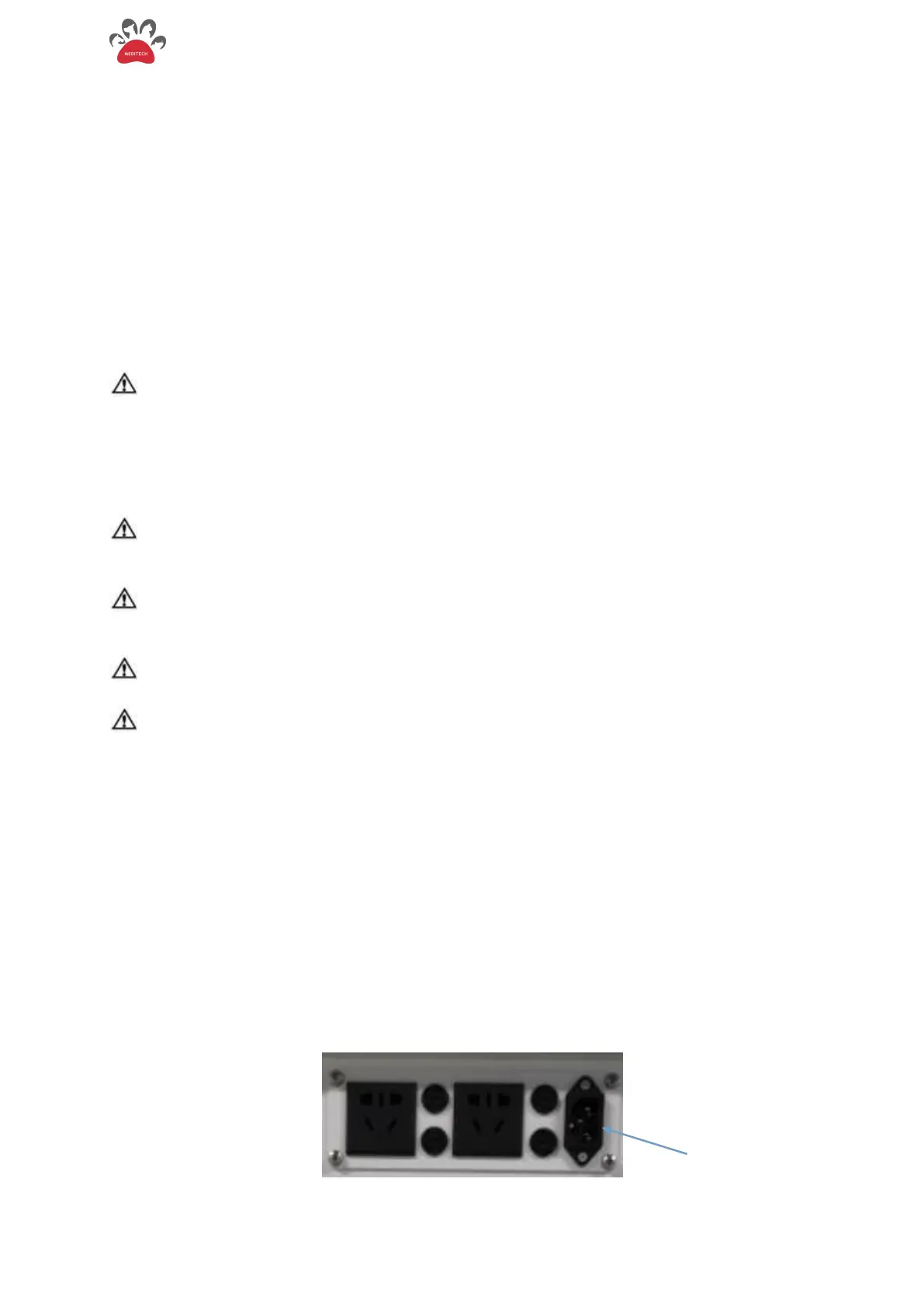

Figure 5-1 AC power inlet
