Table 1. Monitoring System - Standard Shipped Items (continued)
Item Quantity
Preamplifiers 1 or 2
Reusable sensor cables (RSCs) 2 or 4
INVOS™ adult rSO
2
sensors Box of 5, 10, or 20
AC power supply 1
Power cord 1
Operator’s manual (on USB flash drive)
a
1
a
The manual may be printed from the included USB drive. Order a printed Operator’s Manual or Service Manual from Medtronic Technical Services or
your local Medtronic representative. See Technical Services, page 10.
3.4. Power Options
The monitoring system operates on AC power or on a rechargeable internal battery.
Medtronic recommends operating the monitoring system on AC power whenever possible.
Use battery power only when necessary, such as while moving the patient within the
facility or during AC power interruptions.
3.4.1. AC Power
Warning: Shock hazard — Ensure the monitoring system is properly grounded when
operating on AC power.
The power input connection for the monitoring system is at the bottom of the docking
station. Always use the provided AC power cord and power supply.

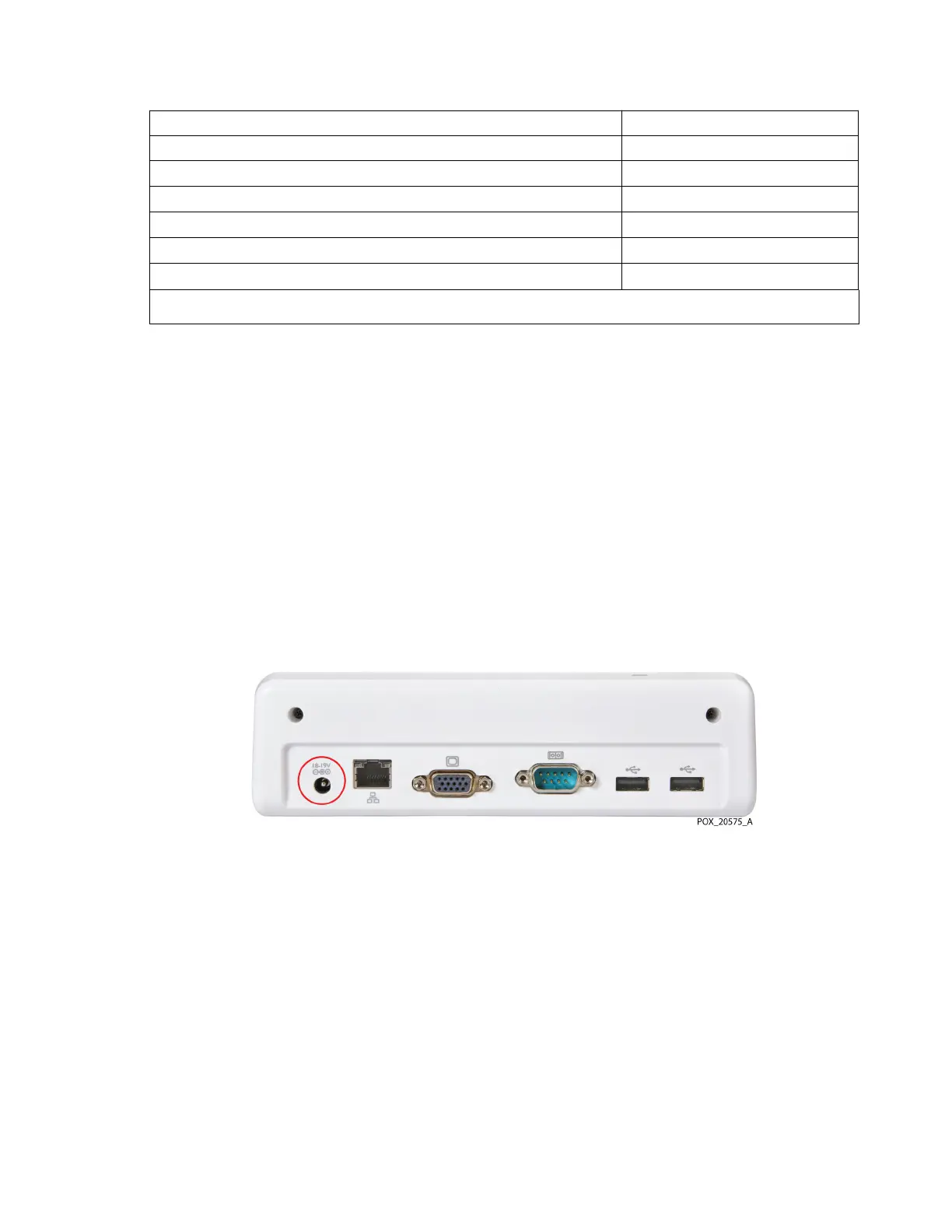

Figure 10. Power Input Connection at Bottom of Docking Station
When the power supply is connected to the AC outlet and the docking station, the power
indicator on the docking station illuminates blue (Figure 11).
