Operator's Manual English 31

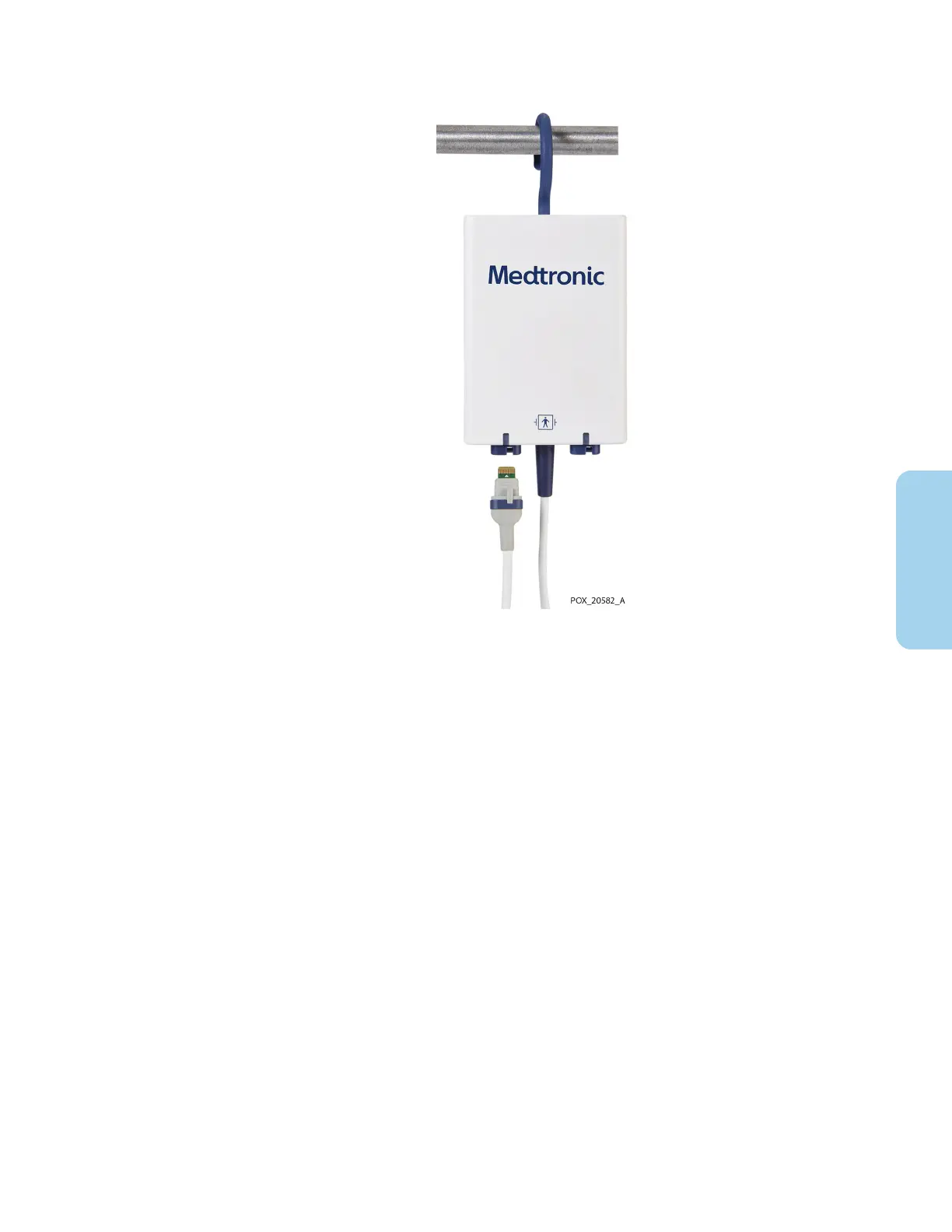

Figure 17. Connecting the RSC to the Preamplifier
3. Repeat these steps for each RSC to be used.
4. Coil and secure the RSC cabling to avoid tangling.
3.5.5. Apply Power
Warning: If you do not hear a tone at system start-up, discontinue use of the monitoring
system and contact Medtronic or a local Medtronic representative.
Before applying power, refer to Power Options, page 24 to understand the requirements
for using AC power and battery power.
To power on the monitoring system:
1. Ensure that the AC outlet is properly grounded and supplies the specified voltage
and frequency. See Electrical, page 112 for voltage and frequency specifications.
2. Connect the power supply to the power input connection on the bottom of the
docking station.
