Document reference MAMPS-HW/E HARDWARE MANUAL
Edition 18 - March 2022 VM600 machinery protection system (MPS)
7-25
Differential housing expansion
PROCESSING MODES AND APPLICATIONS
(2) Block diagram
7.11Differential housing expansion
(1) Description
In this situation (see Figure 7-21), two probes measure on opposite sides of the same
machine body (for example, the HP or the LP turbine housing). The MPC4 is set up for
dual-channel processing.
Input

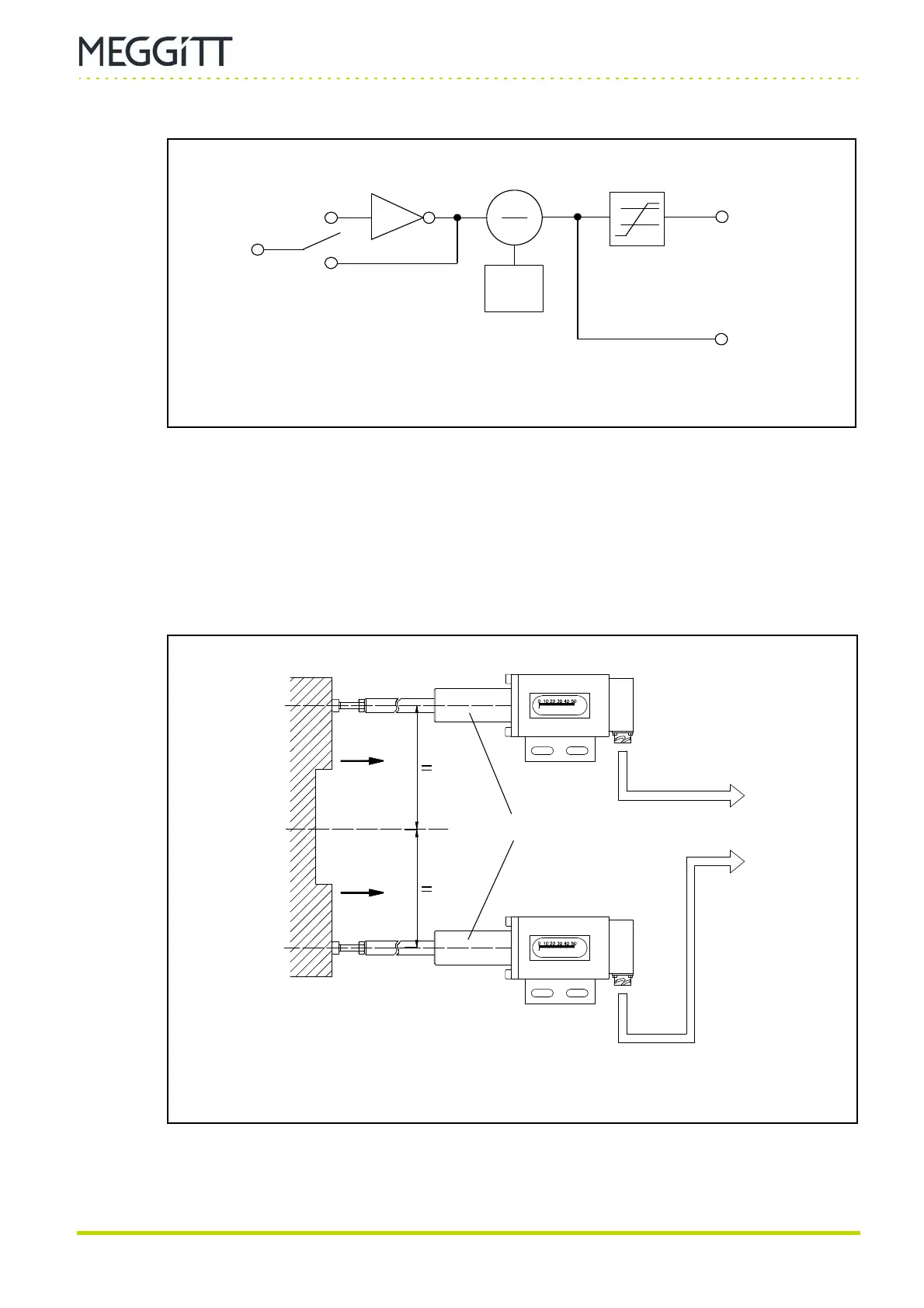

Figure 7-20: Block diagram showing absolute housing expansion processing
Alarm
Alarm level
detector
Initial
gap
Value
Figure 7-21: Measuring the differential housing expansion on two parts of the same body
To monitoring
electronics
Machine
housing
Housing expansion probes
Right side
Left side
