Slot number coding for IOC4T cards
CONFIGURATION OF MPC4 / IOC4T CARDS
9.9.2 VM600 slimline rack (ABE056)
When an IOC4T card is installed in a VM600 slimline rack (ABE056), the micro-switches on
the backplane of the rack must be configured to match the slot number configured for the card
(see 2.1.2.1 Slot number coding for cards in the rear of a VM600 slimline rack).
This allows the IOC4T to be used in a VM600 slimline rack without reconfiguring its slot
number (see 2.1.2.2 Changing the slot number for a VM600 slimline rack)).

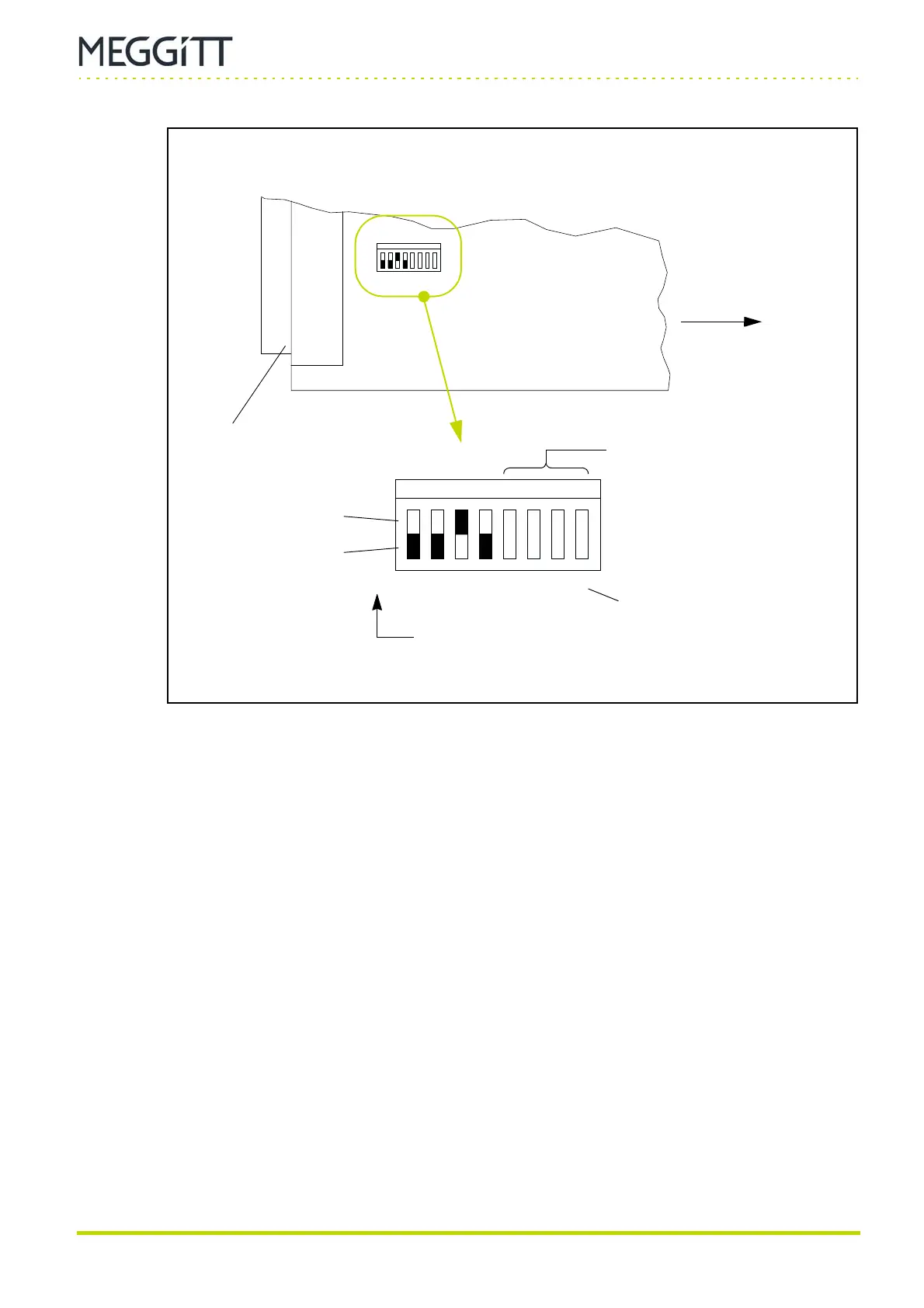

Figure 9-27: Micro-switches to assign the IOC4T slot number (ABE04x)
Switches 5 to 8
not used
IOC4T card micro-switch settings for installation in slot 11 of an ABE04x rack
LSB = Least-significant bit
MSB = Most-significant bit
Switch number
Hole
Raised part
of switch
Text etched on PCB
(Top of card)
Connector P4
(To J3)
IOC4T
12345678
ON
ON
1
0
(LSB) (MSB)
(Bottom of card)
