Meggitt vibro-meter VM600 User Manual

HARDWARE MANUAL Document reference MAMPS-HW/E
VM600 machinery protection system (MPS) Edition 18 - March 2022
8-6
Rack safety requirements
INSTALLATION
Rack-mounted Fan
Rack-mounted Fan
VM600
rack
(side view)
Rack-mounted Fan
Rack-mounted Fan
Front
of rack
VM600
rack
Case A
Case B
Airflow
Inclined plates
to deflect airflow
(for example:
PNR 957.15.01.1103)
(Side view)

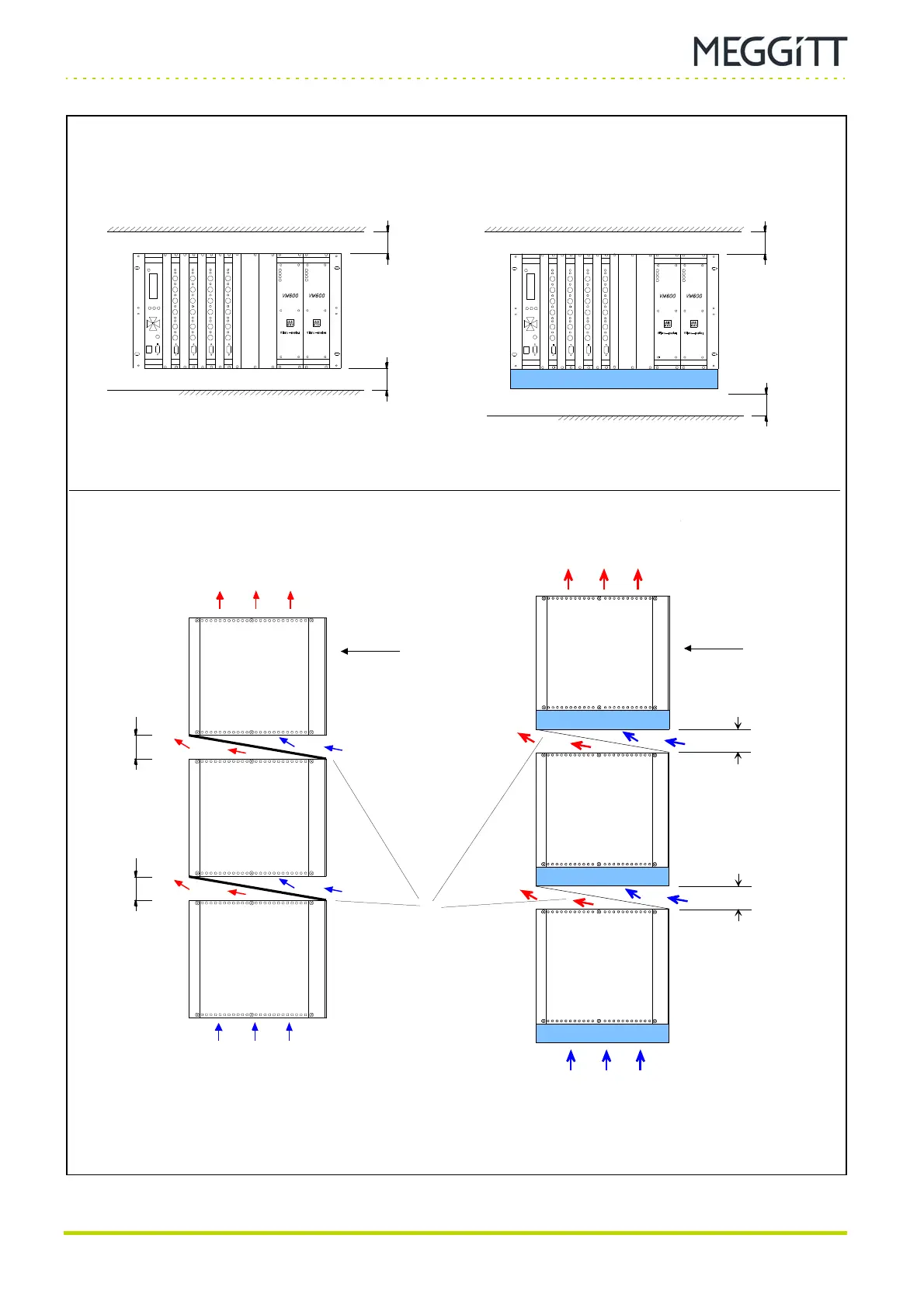

Figure 8-1: Minimum required spacing above, below and between ABE04x racks
in an enclosure using natural or forced ventilation
Natural ventilation Forced ventilation
Natural ventilation Forced ventilation
Front
of rack
>50 mm
>50 mm
>50 mm
>50 mm
>50 mm
>50 mm
>50 mm
>50 mm
Airflow
