Document reference MAMPS-HW/E HARDWARE MANUAL
Edition 18 - March 2022 VM600 machinery protection system (MPS)
9-9
Connecting vibration and pressure sensors
CONFIGURATION OF MPC4 / IOC4T CARDS
The Sensor Connected field has no direct influence on the setting of Sw1 and Sw2. The field
can be considered as a comment for the user. When it is set to "No", the other fields in this
VM600 MPSx software window will be unavailable (that is, appear greyed out), but the values
and settings will still be effective.
NOTE: For all devices (Meggitt vibro-meter
®
and competitor products), the
Sensor Power Supply field has to be set to one of the voltage values (No Supply,
+27 VDC, −27 VDC, +15 VDC or +6.16 mA). Any one of these settings can be
chosen.

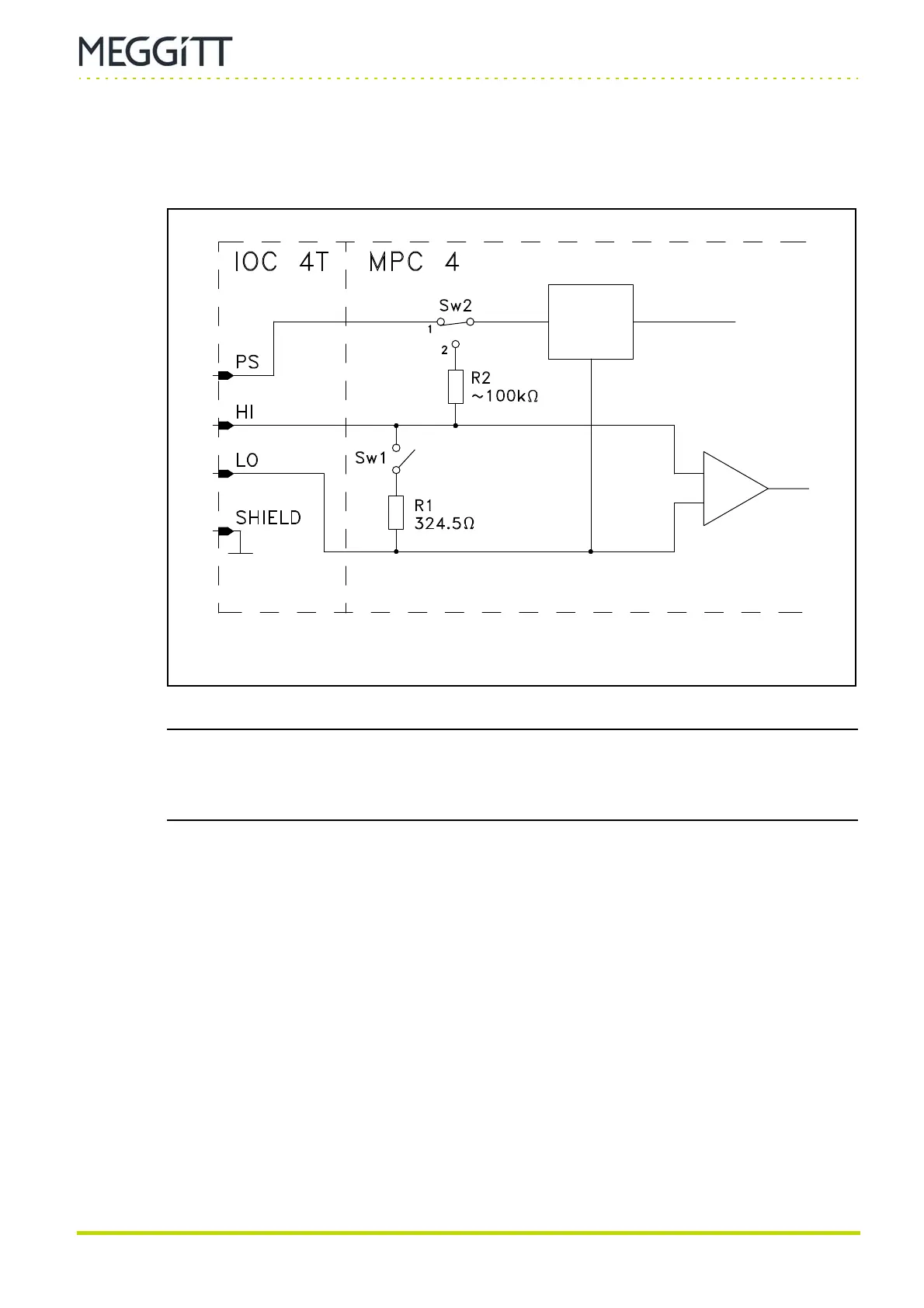

Figure 9-3: Circuitry associated with measurement channel inputs
Sensor
power
supply
