Assigning alarm signals to relays on the RLC16 card
CONFIGURATION OF MPC4 / IOC4T CARDS

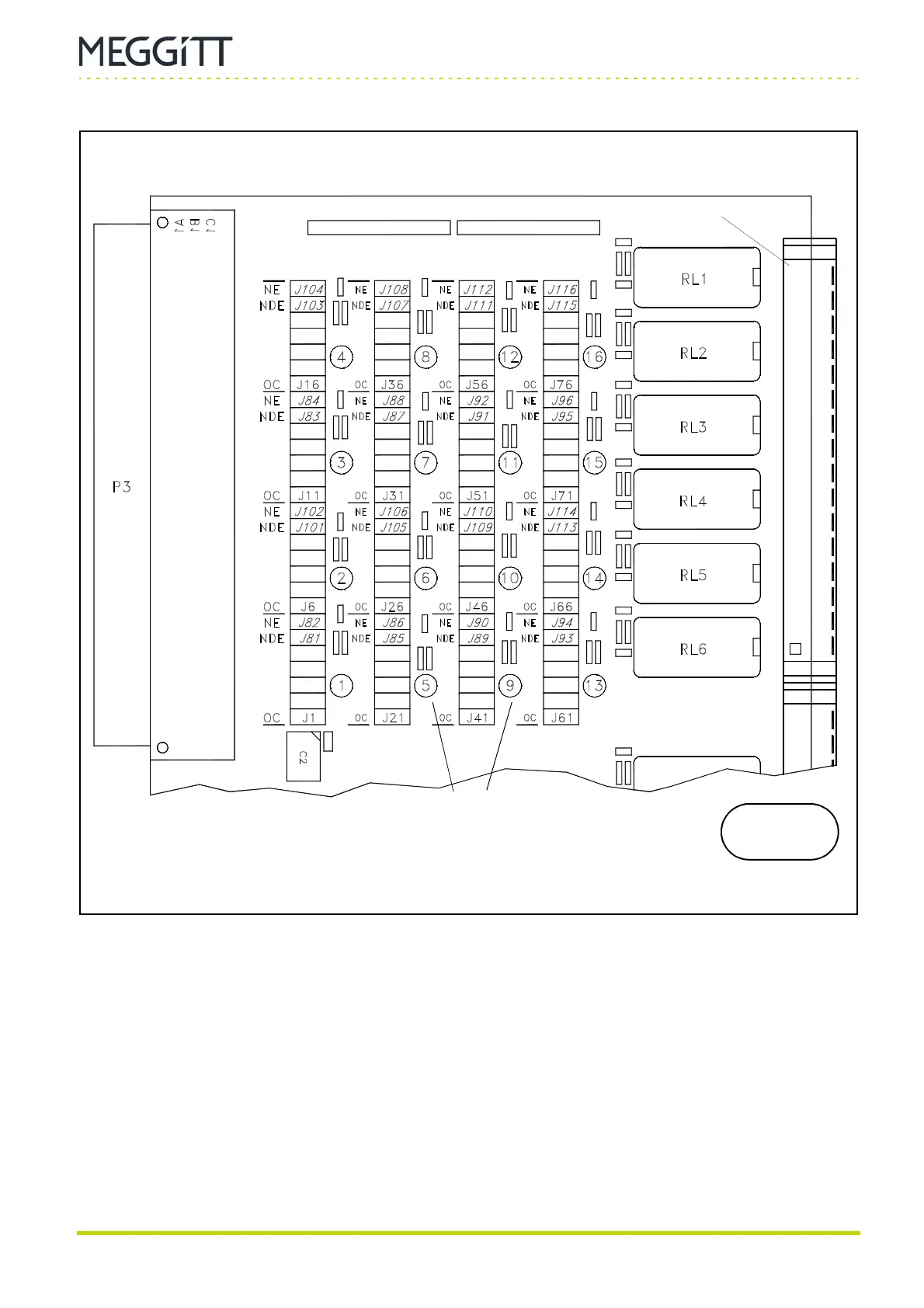

Figure 9-33: Position of jumpers on the RLC16 card related to the OC Bus
(Top of card)
(Bottom of card)
Relay numbers
Connector J1
RLC16
