Document reference MAMPS-HW/E HARDWARE MANUAL
Edition 18 - March 2022 VM600 machinery protection system (MPS)
2-29
RPS6U rack power supply (ABE04x only)
OVERVIEW OF VM600 MPS HARDWARE
vibro meter
DATA
MATRIX
2D

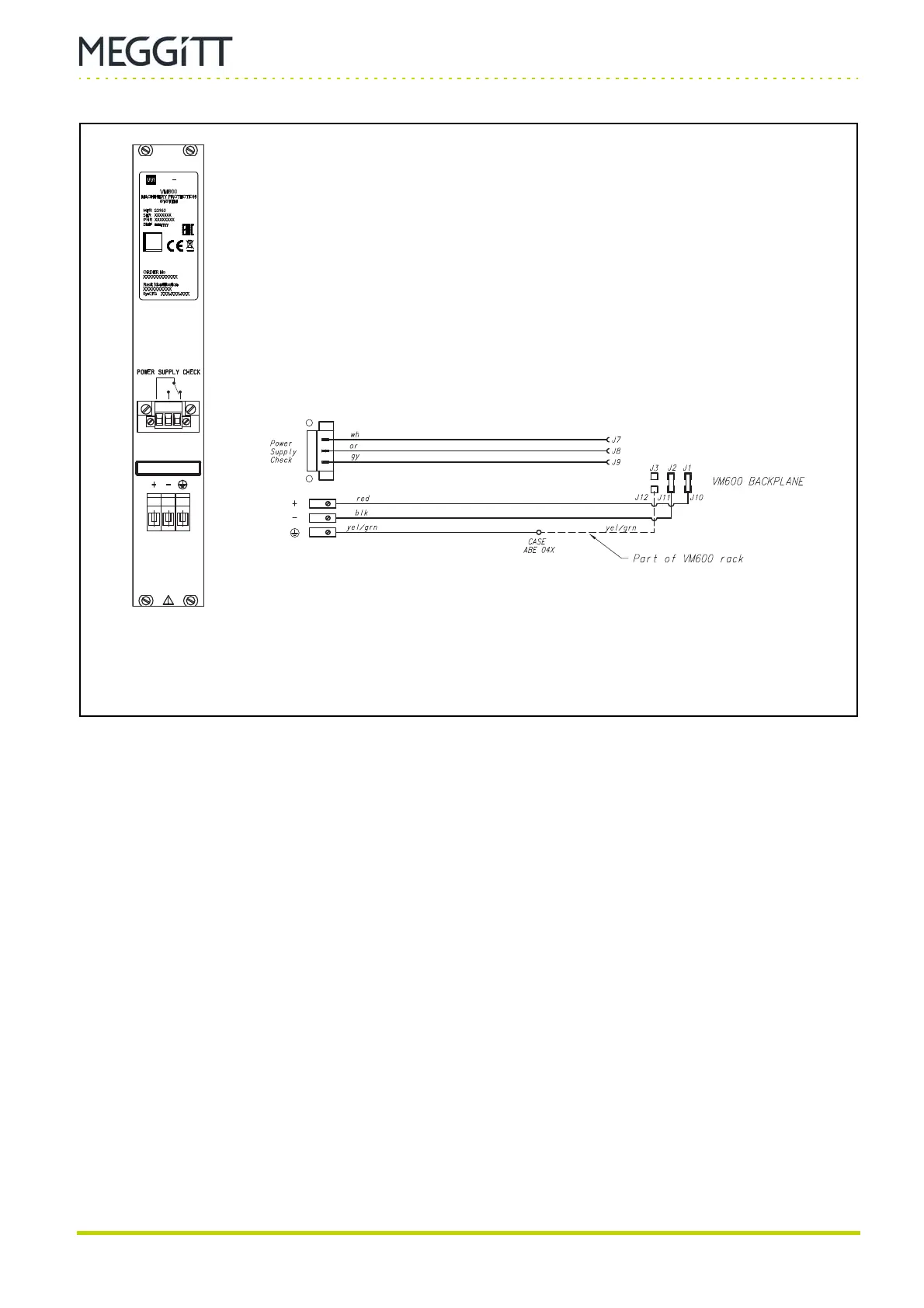

Figure 2-17: DC-input panel with a common input
(a) Rear panel (b) Wiring details
DC input label
(Rear panel
connections)
(Internal to
VM600 rack)
