90-830234R3 DECEMBER 1997 ELECTRICAL - 2D-1

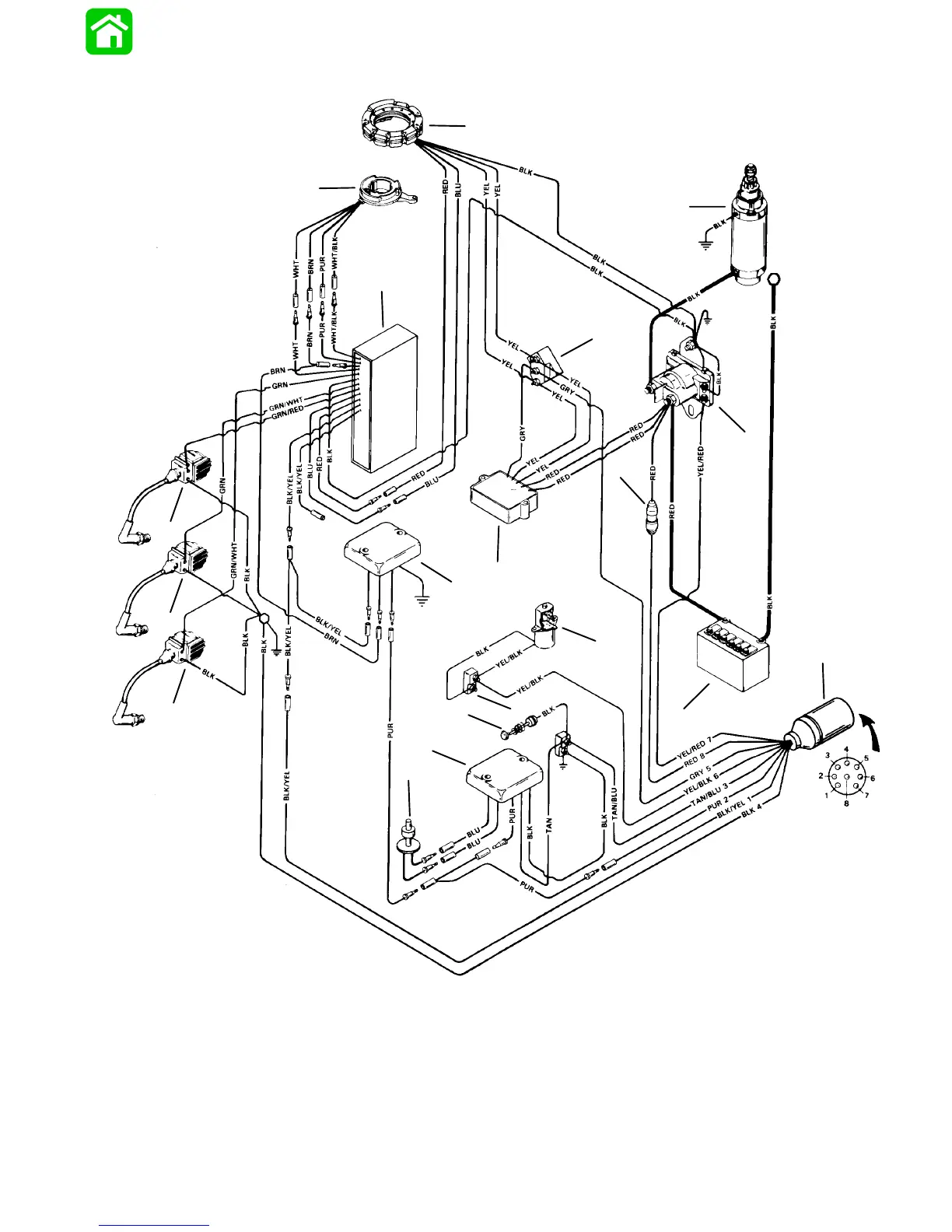

1994/1995 65 Jet Wiring Diagram Electric (1-3-2 Firing Order)
53475
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
r
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
a - Stator
b - Trigger
c - Starter
d - Starter Solenoid
e - 20 Ampere Fuse
f - 12 Volt Battery
g - Engine Harness
h - Low Oil Sensor
i - Warning Module
j - Temperature Switch
k - Enrichment Valve
l - Voltage Regulator
m- RPM Limiter
n - Switch Box
o - Ignition Coil #3 Cylinder
p - Ignition Coil #2 Cylinder
q - Ignition Coil #1 Cylinder
r - Terminal Block
