90-830234R3 DECEMBER 1997 MID-SECTION - 5E-29

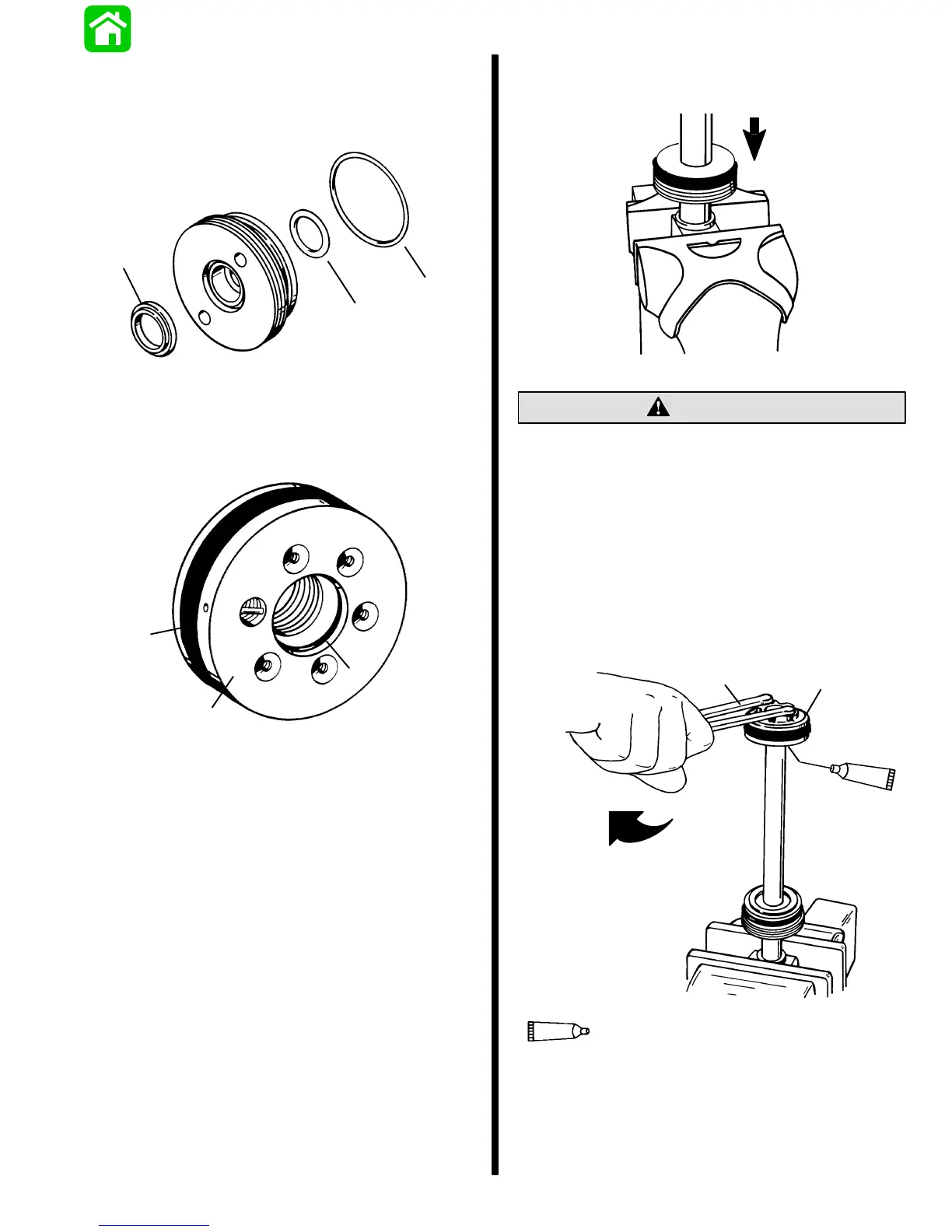

Shock Rod Reassembly
1. Install lubricated O-rings to end cap.
2. Install rod wiper.
b
c
a
51145
a - Rod Wiper
b - Inner O-ring
c - Outer O-ring
3. Install lubricated O-rings to shock piston.
a
c
b
51199
a - Shock Piston
b - O-ring
c - O-ring
4. Clamp shock rod in soft jawed vise.
5. Position cylinder end cap onto rod as shown.
51146
CAUTION
When installing shock rod piston, spanner
wrench must have 1/4 in. x 5/16 in. (6.4mm x 8mm)
long pegs to avoid damage to shock rod piston.
6. Apply Loctite Grade 271 to threads on shock rod.
7. Install shock rod piston.
8. Tighten shock rod piston securely using spanner
wrench [1/4 in. x 5/16 in. (6.4mm x 8mm) long
pegs]. If a torquing type spanner tool is used to
tighten shock piston, then torque to 90 lb. ft.
(122.0 Nâ‹…m).
ba
7
Loctite 271 (92-809820)
7
51146
a - Spanner Wrench
b - Shock Rod Piston - Torque to 90 lb. ft. (122.0 Nâ‹…m)
