Mercury 75 Service Manual

90-830234R3 DECEMBER 1997 ELECTRICAL - 2D-23

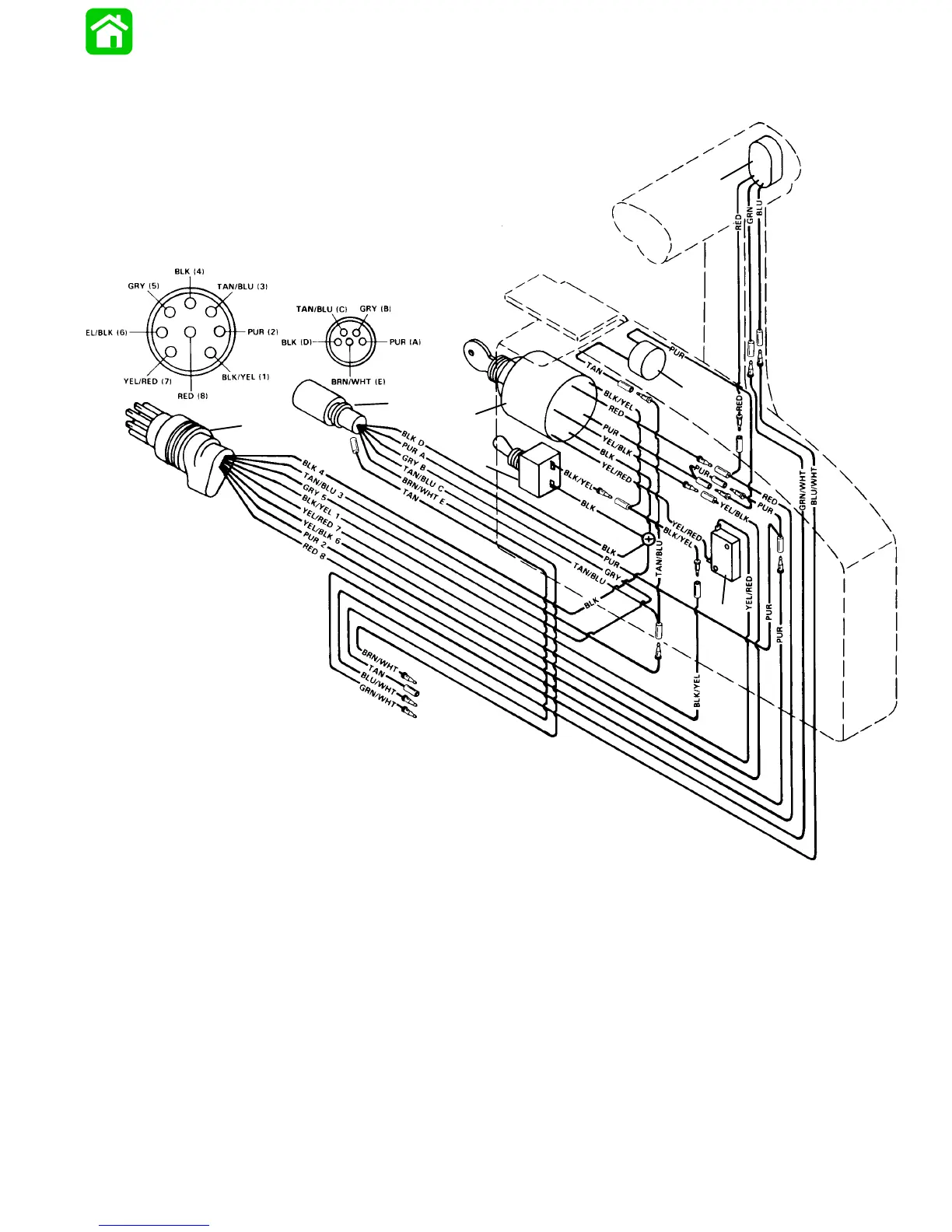

COMMANDER 2000 Side Mount Remote Control
(Power Trim/Tilt Electric Start with Warning Horn) Wiring Diagram
23891
g
f
c
d
e
a
b
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
a - Ignition/Choke Switch
b - Emergency Stop Switch
c - Neutral Start Switch
d - Tachometer/Accessories Harness Connector
e - Wiring Harness Connector
f - Warning Horn
g - Trim/Tilt Switch
