3B-16 - FUEL SYSTEM 90-830234R3 DECEMBER 1997
Fuel System (Linkage)

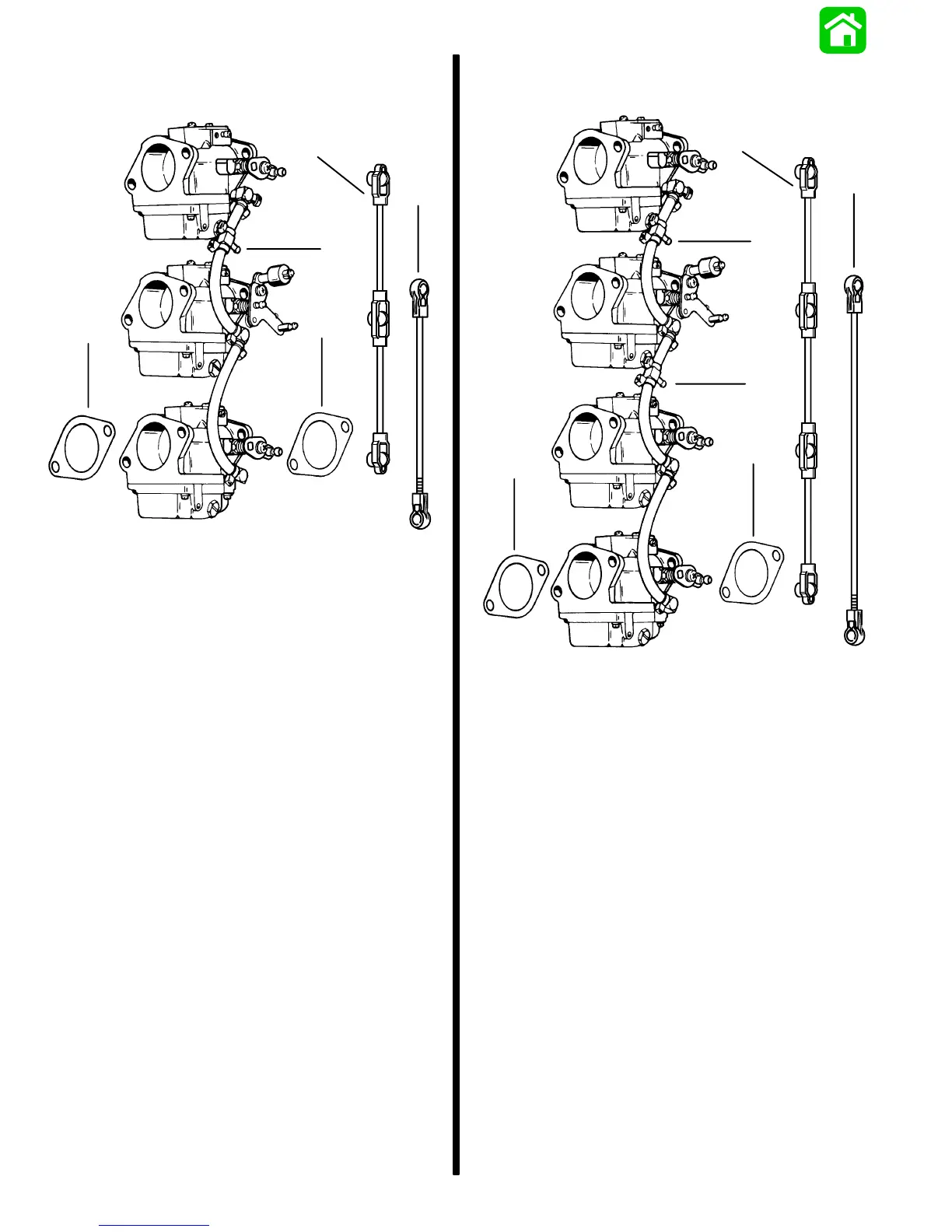

3 Cylinder Carburetor/Linkage Arrangement
54138
a
b
c
c
d
3 Cylinder Models
a - Oil Injection Pump Link
b - Throttle Link
c - Gasket
d - Fuel Enrichment Fitting
4 Cylinder Carburetor/Linkage Arrangement
54137
4 Cylinder Models
c
c
e
d
b
a
a - Oil Injection Pump Link
b - Throttle Link
c - Gasket
d - Fuel Enrichment Fitting
e - Accelerator Pump Fitting
