Mercury 75 - Under Water Strike (Valves Open)

5E-10 - MID-SECTION 90-830234R3 DECEMBER 1997
Under Water Strike (Valves Open)
a
b
p
c
d
e
f
g
h
i
j
k
l
m
n
o

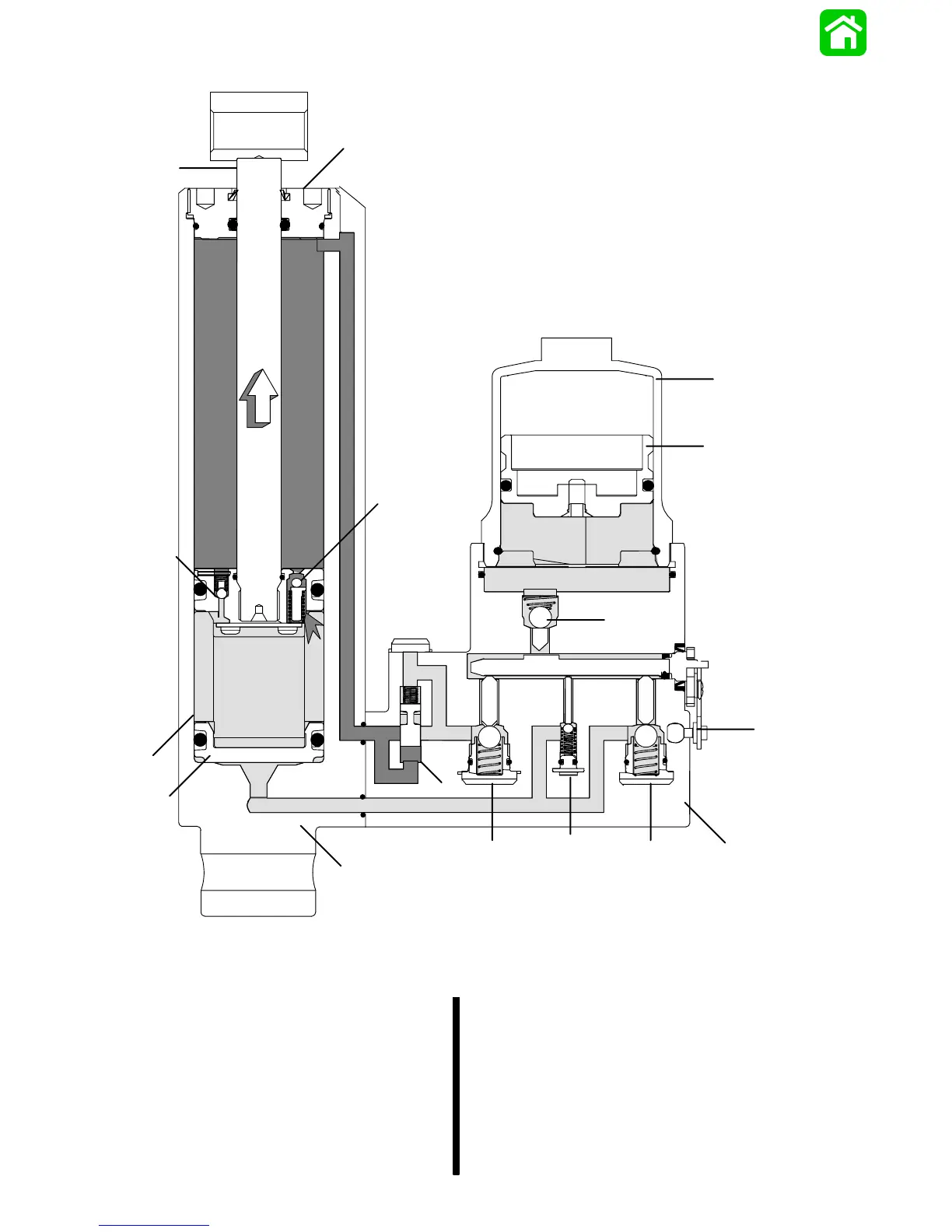

a - Shock Rod
b - End Cap
c - Accumulator
d - Accumulator Piston
e - Accumulator Check Valve
f - Camshaft Lever
g - Manifold
h - Down Fast Transfer Valve
i - Down Slow Transfer Valve
j - Up Fast Transfer Valve
k - Surge Valve
l - Cylinder
m- Memory Piston
n - Shock Piston
o - Shock Return Valve
p - Impact Relief Valve
