5C-42 - MID-SECTION 90-830234R3 DECEMBER 1997

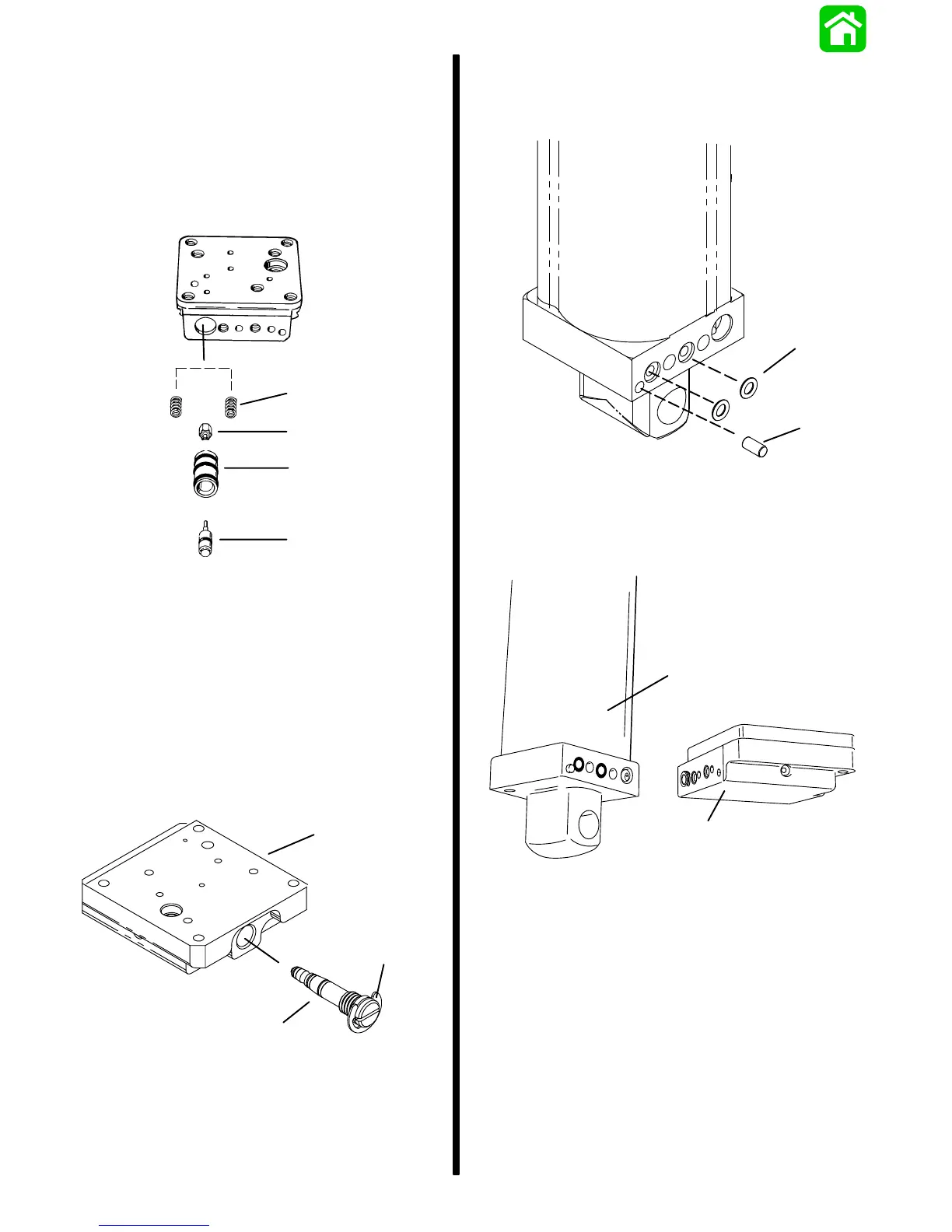

Trim Limit Assembly Installation
1. Lubricate all O-rings. Install spring, poppet spool
housing an trim limit spool into manifold.
NOTE: There are two different size springs used in
this manifold. The heavy spring is used on 75 to 125
HP engines. The light spring is used on 40 to 60 HP
engines.
or
a
b
c
d
51008
a - Spring
b - Poppet
c - Spool Housing
d - Trim Limit Spool
Manual Release Valve Installation
1. Install “E” clip (if removed) and lubricate O-rings
to manual release valve.
2. Install manual release valve assembly into man-
ifold.
b
a
c
a - Manifold
b - Manual Release Valve
c - E Clip
Manifold Installation
1. Install dowel pin and two (2) lubricated O-rings
into trim cylinder.
a
b
a - O-Ring (2)
b - Dowel Pin
2. Align the trim cylinder and pump/reservoir as-
sembly together.
a
b
a - Trim Cylinder Assembly
b - Reservoir/Manifold Assembly
To Next Page
