90-830234R3 DECEMBER 1997 ELECTRICAL - 2D-19

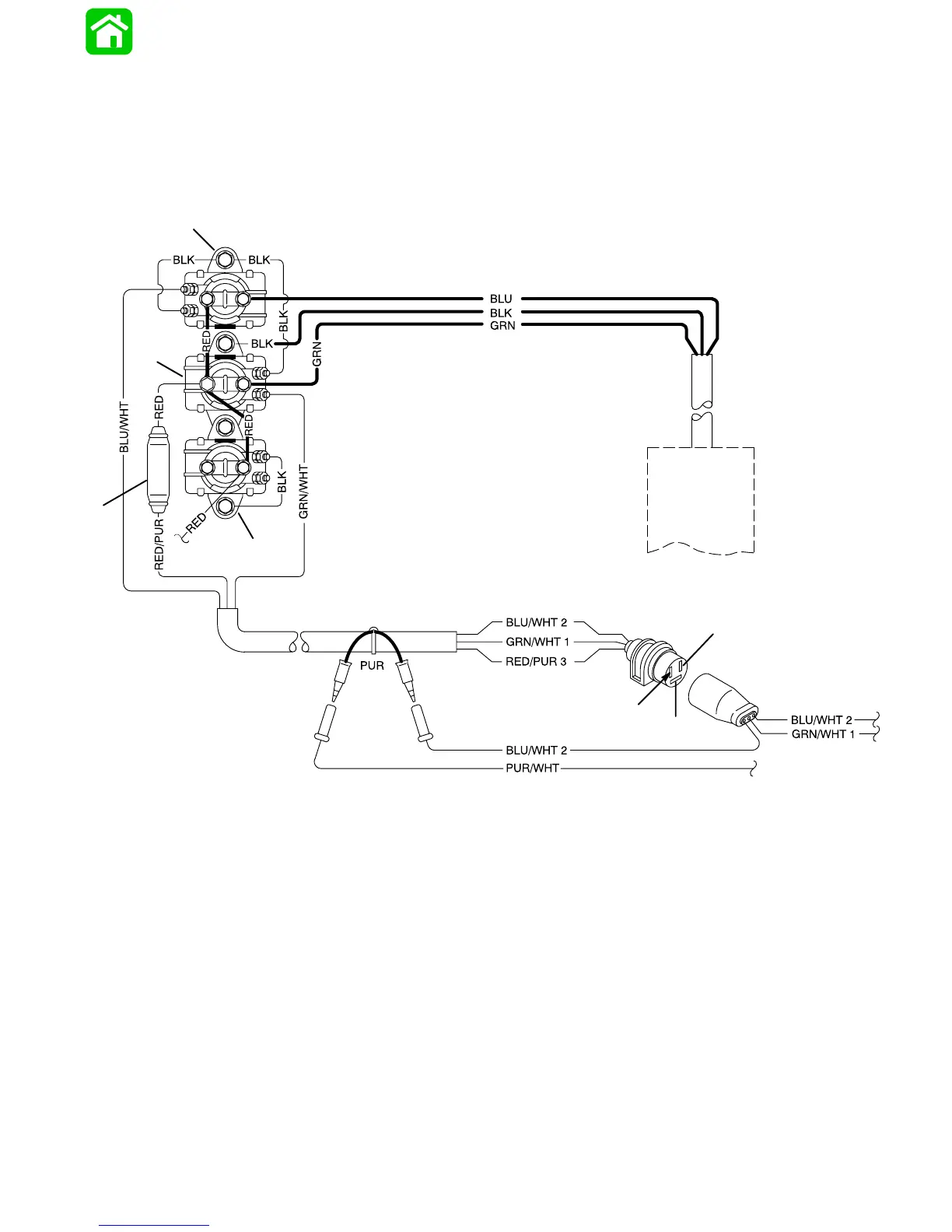

Power Trim System Wiring Diagram (3 Cylinder Models Using COMMANDER
Side Mount Remote Control)
23884
1
2
3
a
b
c
e
f
d
g
g
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
a - Power Trim Pump Motor
b - Trim Solenoid “UP”
c - Trim Solenoid “DOWN”
d - Engine Starter Motor Solenoid
e - Fuse Holder (20 Amp Fuse)
f - Red (+) Battery Cable
g - Wires from Remote Control
