Mercury 75 Service Manual

90-830234R3 DECEMBER 1997 MID-SECTION - 5E-19

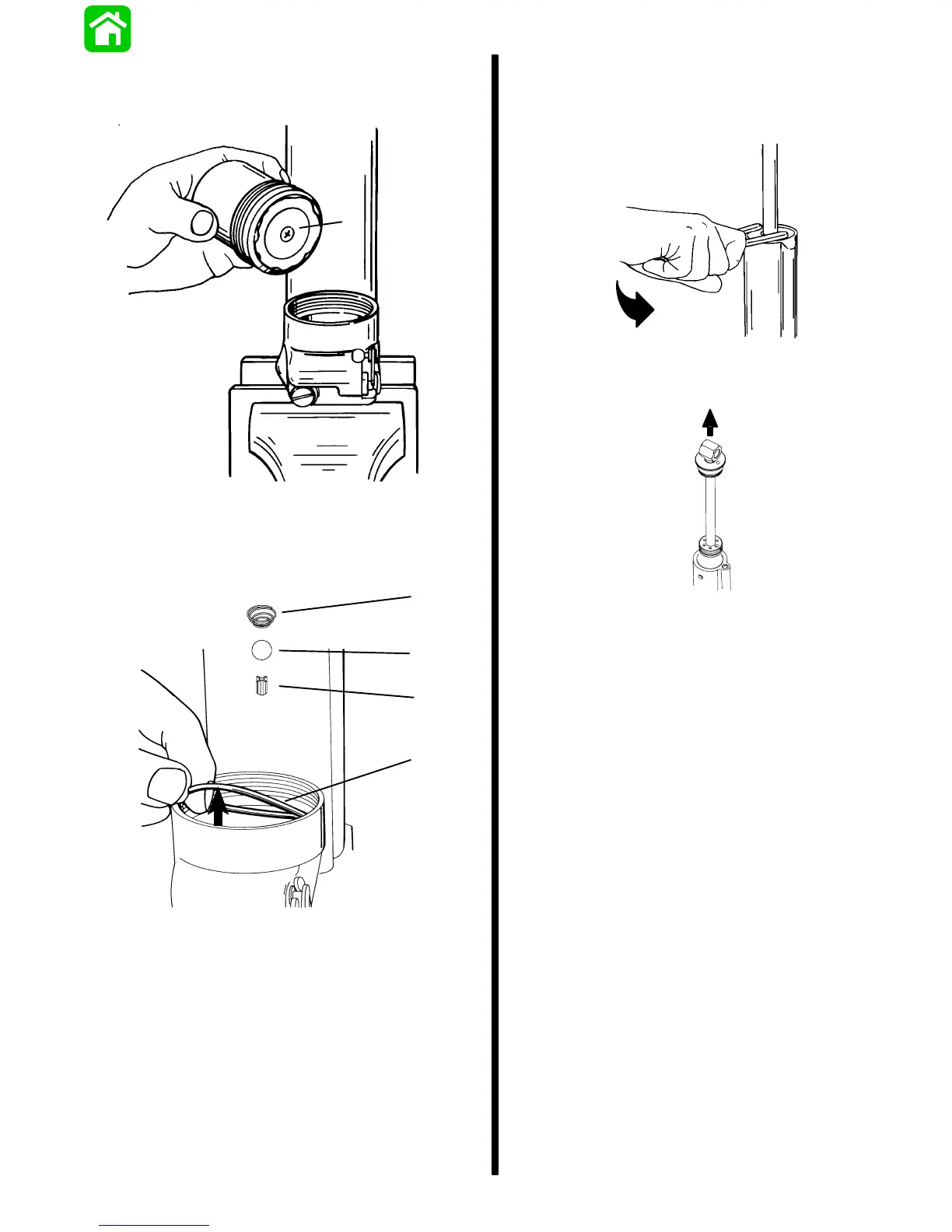

6. If plunger can be compressed into accumulator
by hand, accumulator is defective. Replace
accumulator.
a
51143
a - Plunger
7. Once accumulator is removed, remove O-ring,
conical spring, steel ball and plunger.
a
b
c
d
51145
a - Conical Spring
b - Steel Ball
c - Plunger
d - O-ring
Shock Rod Removal
1. Unscrew cylinder end cap assembly using span-
ner wrench [1/4 in. x 5/16 in. long pegs].
51145
2. Remove shock rod assembly from cylinder.

Mercury 75 Specifications

General

Horsepower	75 hp
Starting	Electric
Cylinders	3
Warranty	3 years
Shaft Length	20 in. or 25 in.
