90-830234R3 DECEMBER 1997 POWERHEAD - 4-29
Powerhead Removal

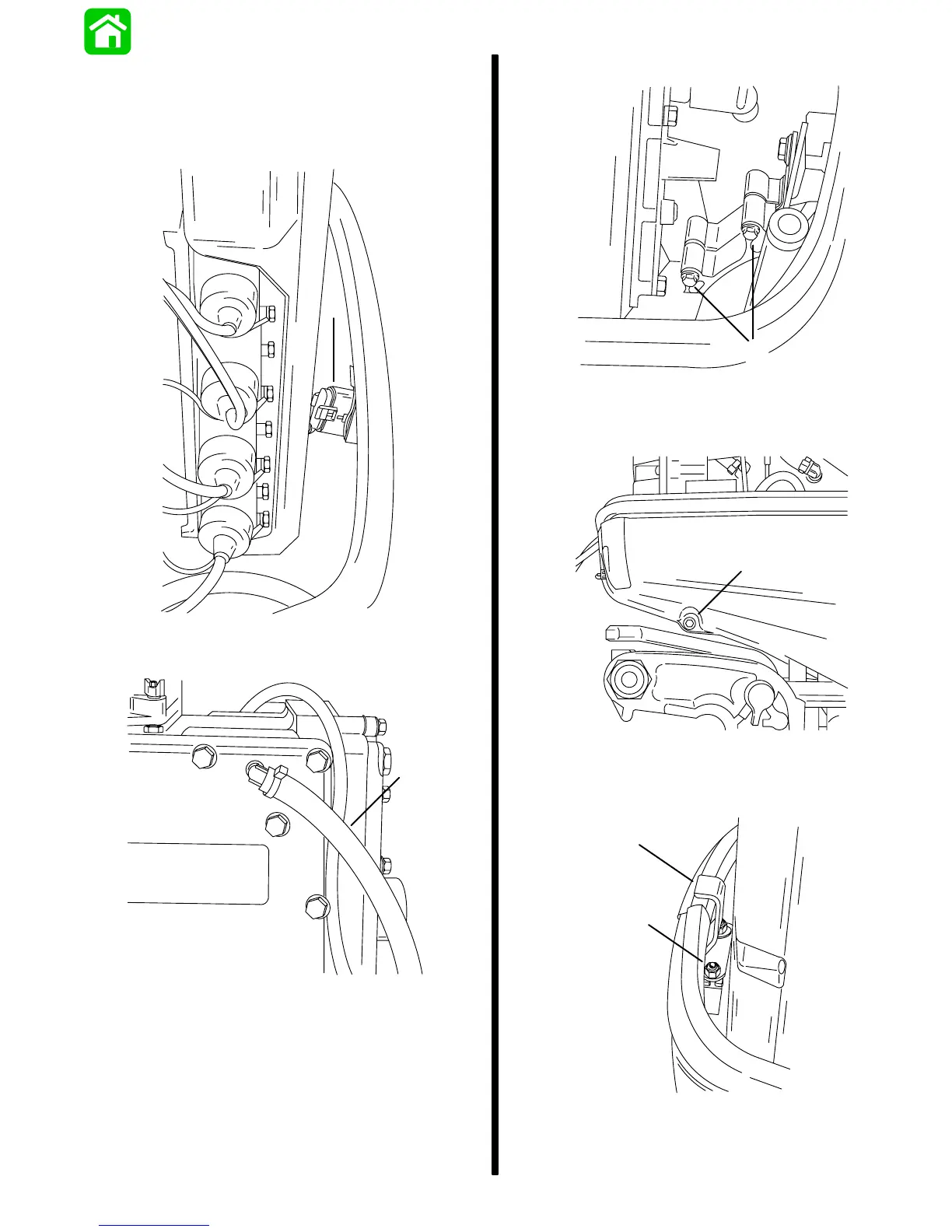

• Remove top cowl.
• Disconnect bullet connectors in cowl mounted
trim switch harness.
a
53952
a - Cowl Mounted Trim Switch
• Remove tell-tale hose from exhaust cover.
a
53956
a - Hose
• Remove 2 bolts securing aft end of lower cowling.
a
53953
a - Bolts
• Remove bolt securing forward portion of lower
cowling.
a
53954
a - Bolt
• Loosen PORT nut securing front latch to bottom
cowl and remove STARBOARD bottom cowl.
a
b
53955
a - Nut
b - Latch
