90-830234R3 DECEMBER 1997 POWERHEAD - 4-73

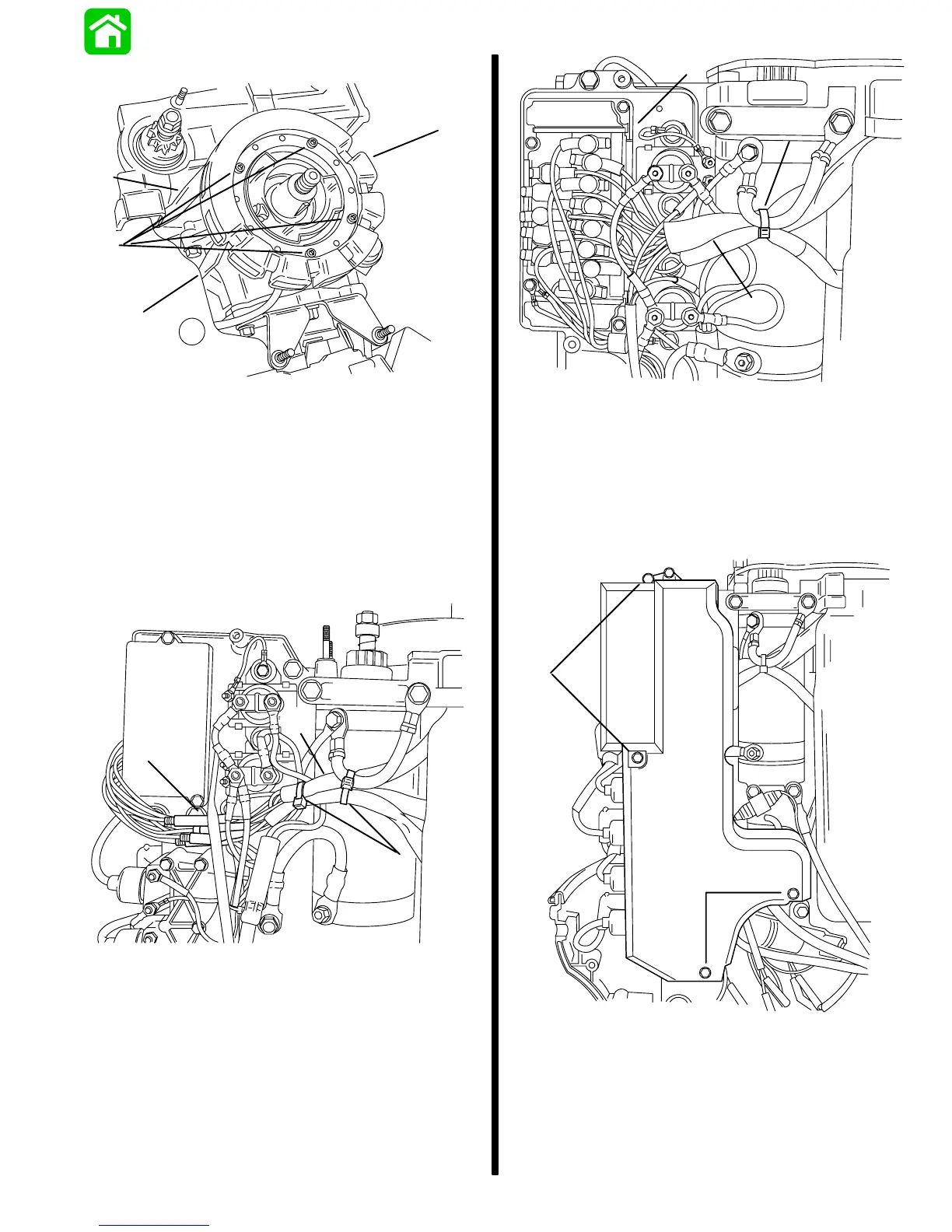

• Install stator as shown.
a
b
c
d
53973
a - Screws; apply Loctite 271 on threads (unless Patch
Screw is used) and torque to 60 lb. in. (6.8 Nm)
b - Stator
c - Stator Harness
d - Trigger Harness
• Connect stator leads; refer to wiring diagrams in
Section 2D.
• Install sta-strap.
• Install starter motor; refer to Section 2B.
3 Cylinder Models
a
b
c
53792
a - Sta-Straps
b - Switch Box Bullet Connectors
c - Stator Harness
4 Cylinder Models
a
b
c
53790
a - Sta-Strap
b - Stator Harness
c - Switch Box
• Reinstall electrical plate cover. Secure cover with
4 bolts (4 cyl. models) or 3 bolts (3 cyl. models).
Torque bolts to 30 lb. in. (3.4 N·m).
a
a
53958
a - Bolts [Torque to 30 lb. in. (3.4 N·m)]
