Mercury 75 Service Manual

90-830234R3 DECEMBER 1997 IMPORTANT INFORMATION - 1D-9

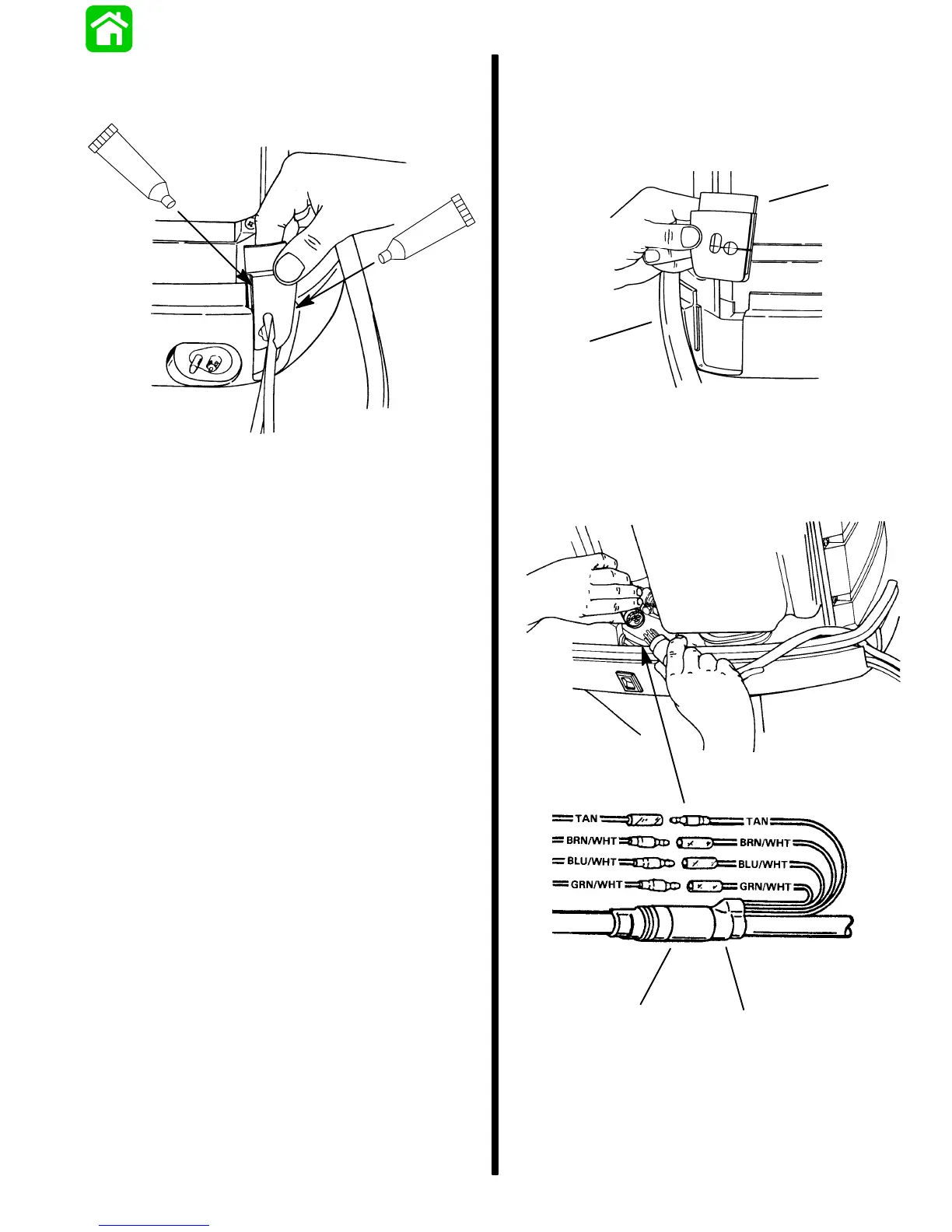

NOTE: The rubber grommet has to be lubricated to
ease installation.
f
f
f – Lubricant
Connecting Remote Wiring
Harness To The Engine
1. Pull up the cowl seal (a) and remove the star-
board side rubber grommet (b).
b
a
2. Take hold of the engine connector (c) and install
the remote wiring harness plug (d). Connect
additional wire leads (if equipped) as shown.
NOTE: The rubber grommet can to be lubricated to
ease installation.
c
d

Mercury 75 Specifications

General

Horsepower	75 hp
Starting	Electric
Cylinders	3
Warranty	3 years
Shaft Length	20 in. or 25 in.
