5C-34 - MID-SECTION 90-830234R3 DECEMBER 1997
a
b

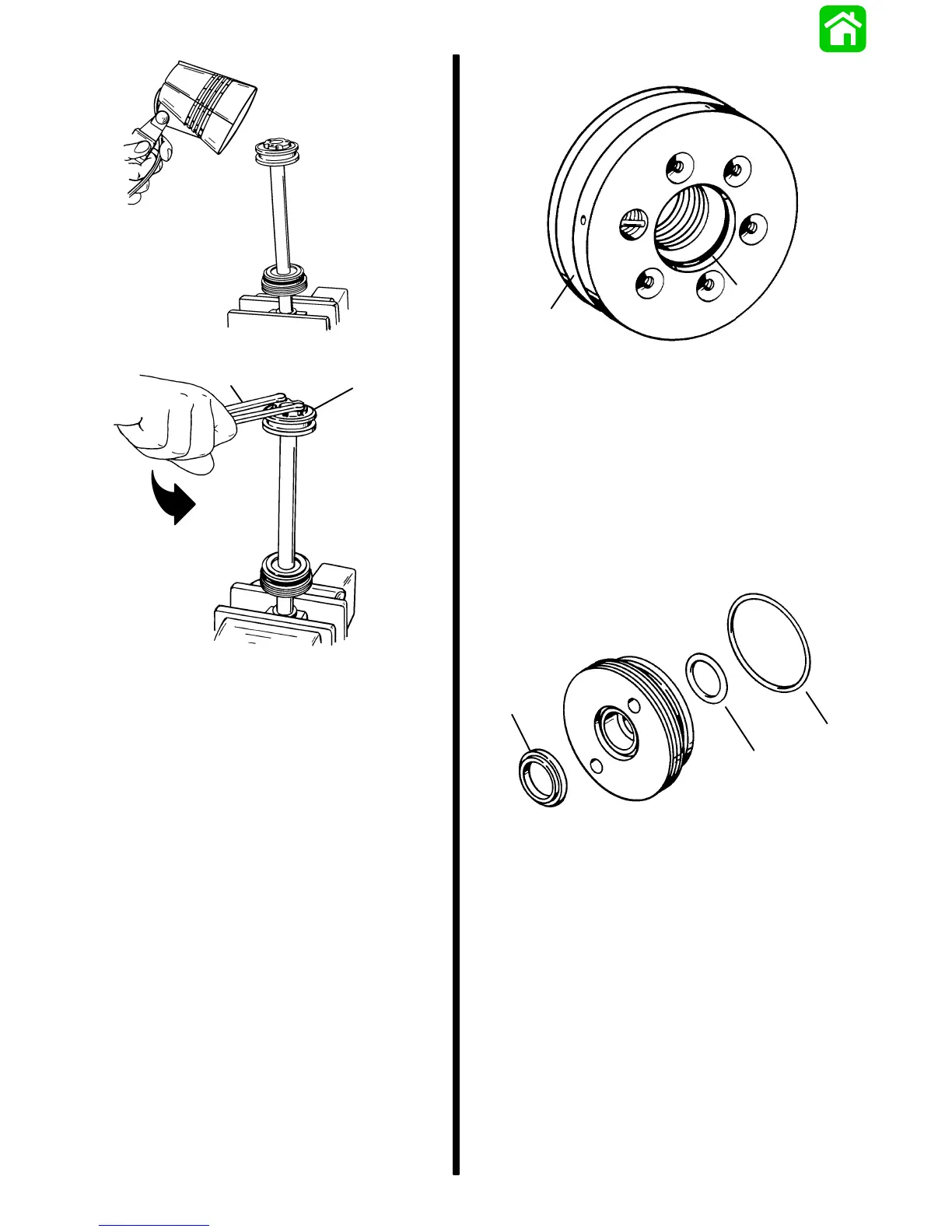

51146
51146
a - Spanner Wrench
b - Shock Rod Piston
8. Inspect check valve for debris; clean debris from
check valve if found. If debris cannot be cleaned
from check valve, replace shock piston as an as-
sembly.
9. Clean shock and components with compressed
air.
10. Remove inner O-ring from shock rod piston.
a
b
51199
a - Shock Piston
b - O-ring
11. Remove cylinder end cap assembly from shock
rod.
12. Inspect shock. If wiper (located in cap) has failed
to keep rod clean, replace wiper.
13. Place end cap on clean work surface.
14. Remove rod wiper, inner O-ring, and outer O-
ring.
b
a
c
51145
a - Rod Wiper
b - Inner O-ring
c - Outer O-ring
