2A-38 - ELECTRICAL 90-830234R3 DECEMBER 1997

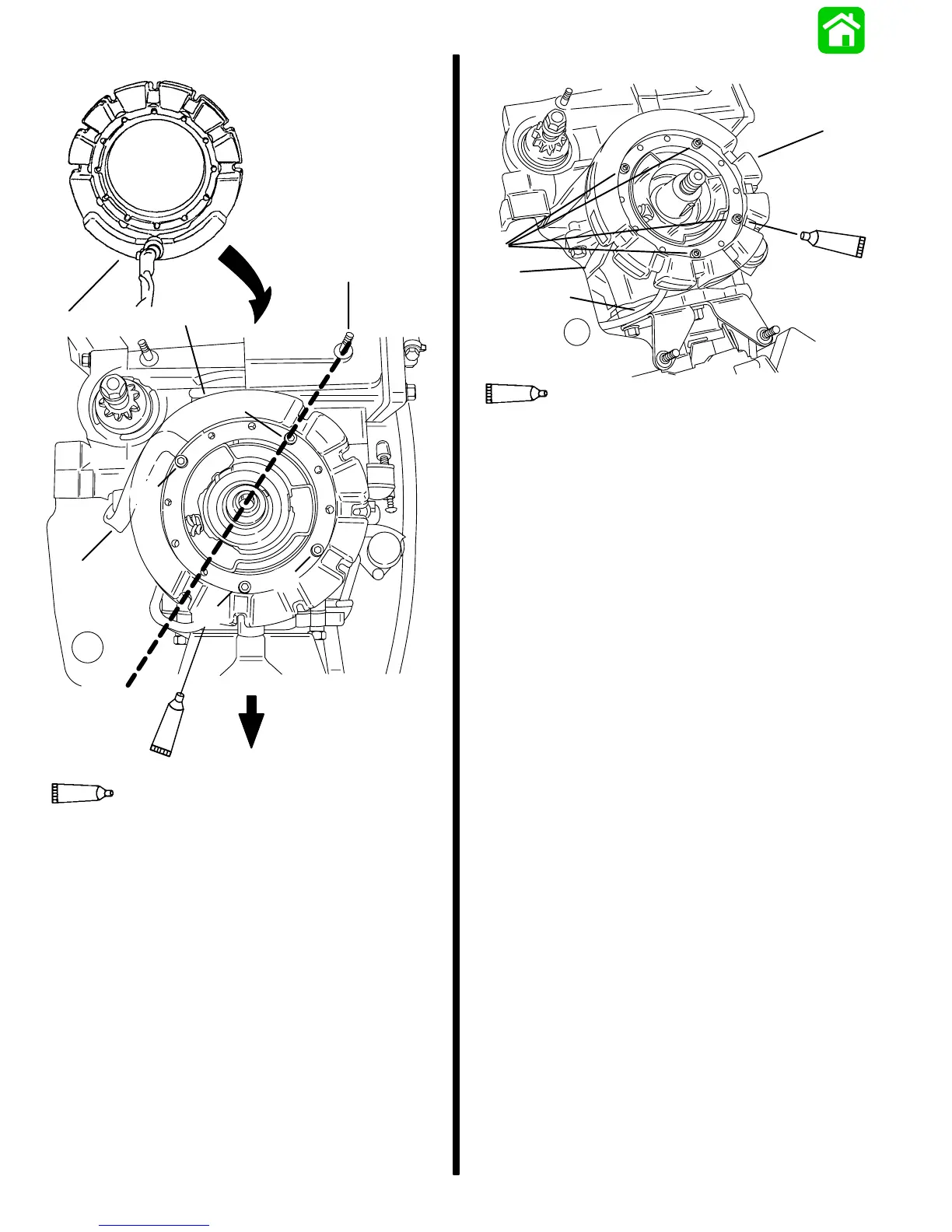

Large Rim Stator

Front of Engine

Loctite 222 (92-809818)

54132

a - Large Rim Stator

b - Flywheel Cover Stud

c - High/Low Speed Winding Module of Stator

d - Stator Screws [Apply Loctite 222 to threads] [Torque

screws to 60 lb. in. (6.8 N·m)]

e - Stator Harness

1. Install stator as shown.

Loctite 222 (92-809818)

53973

a - Screws; apply Loctite 222 on threads (unless Patch Screw

used) and torque to 60 lbs. in. (6.6 N·m)

b - Stator

c - Stator Harness

d - Trigger Harness

2. Connect stator leads; refer to wiring diagrams in

Section 2D.

3. Install sta-strap.

4. Install starter motor; refer to Section 2B.
